MECHANICAL MOUNTING
32
SAFERY LASER SCANNER
SCANNER MOUNTING AND PITCH ANGLE ADJUSTMENT
NOTE
The Positioning Memory Bracket (one piece) (8) saves the inclination angle set for the
installation. This allows for quick installation without further mechanical adjustments if
it is ever necessary to replace the unit.

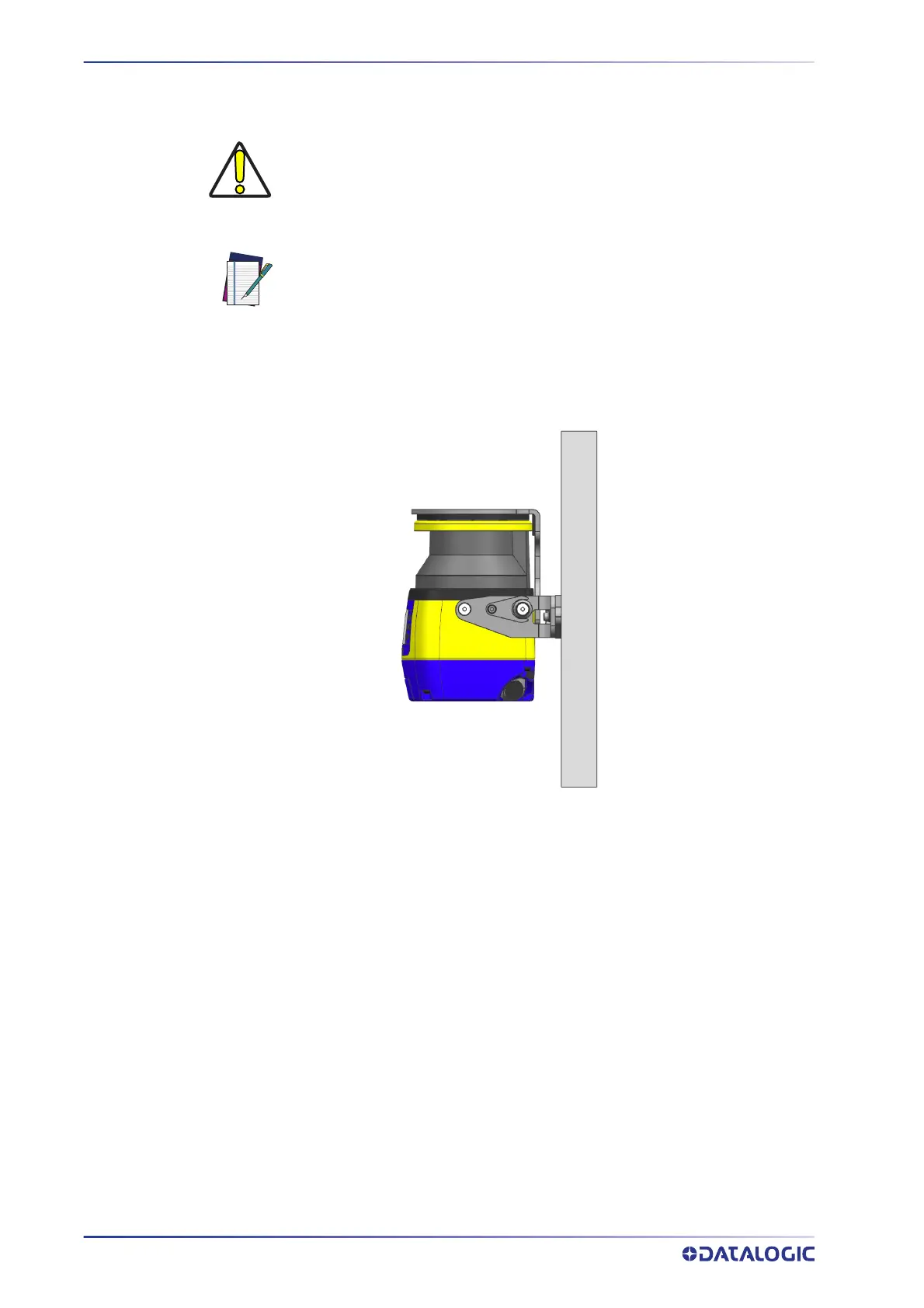

Figure 6 - Scanner Mounting and Pitch Angle Adjustment
To mount the device with 90° vertical inclination:
1. Mount the Positioning Memory Bracket (8
) with the M4 screw (and washer) (9) to
the main bracket (3) but do not tighten it.
2. Align the Positioning Memory Bracket with the center of the main bracket slot,
then
tighten the M4 screw (9) (1.5-1.6 Nm Torque).
3. Mount the scanner to the main bracket using the M5 x 14 Pitch Adjustment
S
crews (with washers) (6) and the M5 x 10 Scanner Fastening Screws (7). Tighten
all four screws (2.9 - 3.1 Nm Torque).
CAUTION
Make sure to use the specific Torques indicated for the different proce-
dures to avoid damaging the device permanently.
The pitch angle adjustment is a procedure related to both SLS-BRACKET-A
and SLS-BRACKET-B.
