ANGLE ADJUSTMENT
BRACKET MOUNTING
INSTRUCTION MANUAL
31
Pitch Angle Adjustment Br
acket (SLS-BRACKET
-B)
Mount the pitch adjustmen
t brack
et
(3)
to the wa
ll or panel by inserting two M5 UNI
5933 screws (not included), and tighten them, repeatedly alt
ernating between one and
the other
, until they are completely tight.

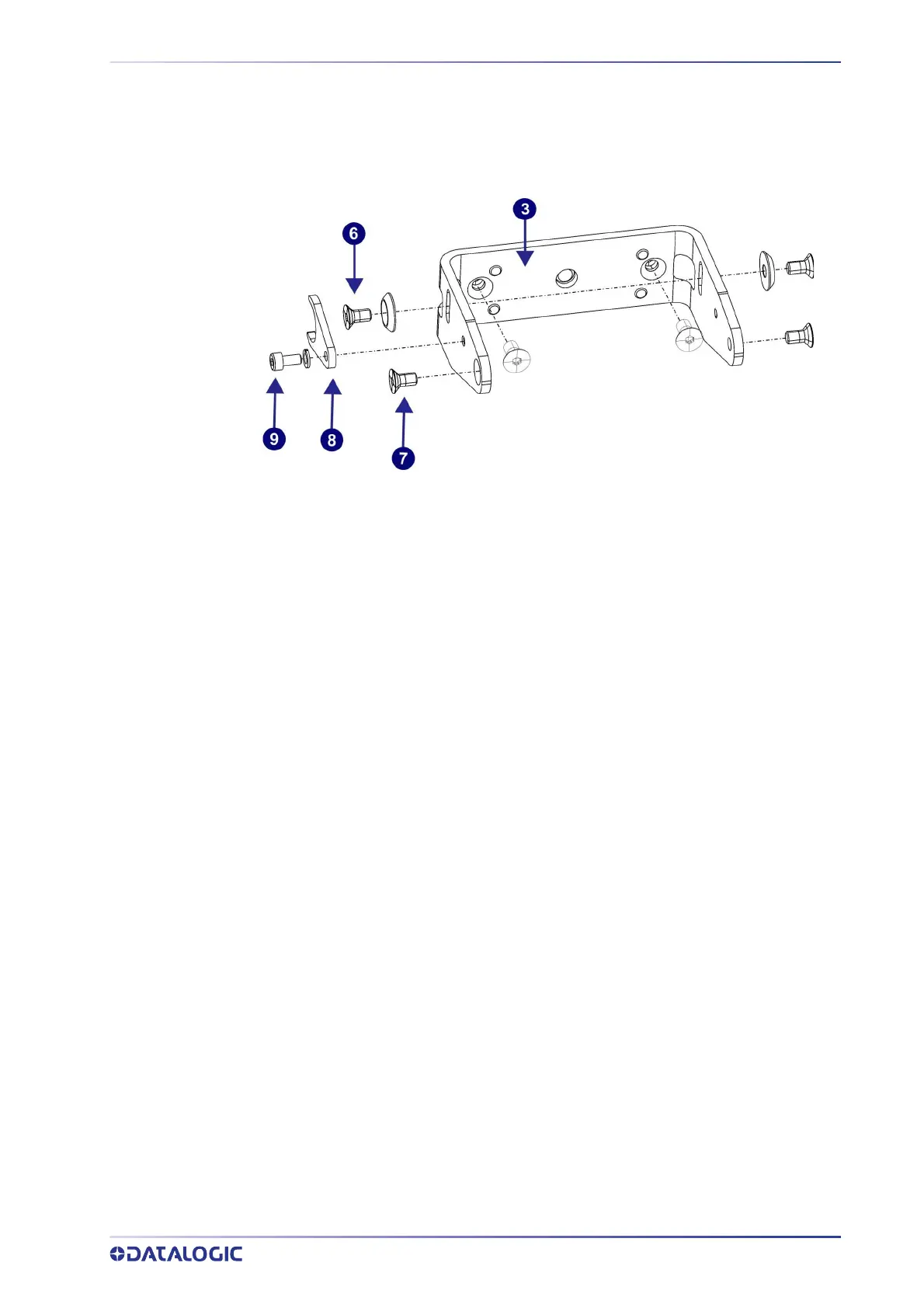

Figure 5 - Pitch Ang
le Adjustment Br
acket
48
50
Table of Contents
End User License Agreement
3
Table of Contents
8
Preface
11
About this Manual
11
Manual Conventions
11
Technical Support
11
Support through the Website
11
Reseller Technical Support
12
General View
13
Laser Sentinel Master Model
13
Laser Sentinel Slave Model
14
Laser Sentinel Stand Alone Model
15
Leds and Indicators
16
Model Selection and Order Information
17
Connectors Used
17
General Information
19
General Description
19
Reference Standards and Regulations
20
Package Contents
21
Basic Information
21
Typical Applications
22
Horizontal Application Configuration
23
Vertical Application Configuration
24
Applications with Master and Slave Connection
25
Safety Information
26
Installation
28
Installation Precautions
28
Getting Started
29
Precautions for Environmental Interference
29
Light Interference
30
High Reflecting Background
31
Zone with Limited Detection Capability
32
Device Positioning and Minimum Distance Calculations
33
Minimum Safety Distance Calculations for Horizontal Applications
34
Minimum Safety Distance Calculations for Vertical Applications
37
Unprotected Zone
39
Distance to Wall
40
Devices Orientation
41
Checks after First Installation
43
Mechanical Mounting
45
Direct Mounting
46
Protection Bracket Mounting (SLS-BRACKET-C) (Optional)
47
Angle Adjustment Bracket Mounting
48
Pitch and Roll Angle Adjustment Bracket (SLS-BRACKET-A)
48
Pitch Angle Adjustment Bracket (SLS-BRACKET-B)
49
Scanner Mounting and Pitch Angle Adjustment
50
Roll Angle Adjustment
52
Memory Group Unmounting for Cable Connection
53
Safety Information Regarding Mounting
55
Electrical Connections
56
Laser Sentinel Stand Alone Model Connectors
56
Machine Interface Connections
57
Master Slave System Connection
58
Master Connection
59
Master M12 8-Pole Connector
59
Master M12 12-Pole Connector
60
Master M12 17-Pole Connector
62
Master M12 17+8 Pole Connector
63
Laser Sentinel: the Slave
67
Master Slave Connection
68
Power Supply Connections
69
PC Connections
69
Laser Sentinel Setup and Configuration
70
Installing Dlsentinel GUI
70
Minimum System Requirements
70
Program Installation
71
Choosing the Application
71
Functions
72
Zone Setting Configuration and Selection
72
Zone Set Input Selection
72
Zone Set Switching
73
Detection Capability Setting
77
Automatic and Manual Restart
78
Response Time and Scan Cycle Setting
80
Reference Points Monitoring Settings
81
Safety Outputs (Ossds)
83
OSSD Test
84
Muting
85
Muting Enable
86
Muting Signaling Devices
86
Muting Direction
86
Bidirectional Muting
86
Unidirectional Muting
88
Configuring the Muting Function on Dlsentinel
89
Override
92
Muting Dependent Override in Stand Alone Model
92
Muting Dependent Override in Master Model
92
Edm
94
Encoders
96
Dust Filtering
101
Shut off
102
Reset
103
Wink
104
Safety Report Generation and Acceptance
105
Diagnostics
106
Monitoring by Display
106
Diagnostic Notes, Warnings, and Errors
107
Safety
112
Leds and Display
113
Diagnostic and Status Leds
113
Display Menu
114
Diagnostics Using the Display
114
Diagnostic Log
115
Periodical Checks
117
Device Maintenance
118
General Information and Useful Data
118
Window Cleaning
119
Window Replacement
121
Warning Terms - Disclaimer for Window Replacement and Calibration
121
Prerequisites for Window Replacement
122
Window Replacement Procedure
123
New Window Calibration
126
Fast Replacement
132
Fast Replacement of the Memory Group
132
Fast Replacement of the Master Device
133
Fast Replacement of a Slave Device
134
Technical Data
135
Overall Dimensions
140
Laser Sentinel Stand Alone Model
140
Laser Sentinel Master Model
141
Laser Sentinel Slave Model
141
Accessories
142
Mounting Brackets
142
Ethernet Cables
143
Electrical Cables
143
Safety Units
144
Maintenance Accessories
144
Glossary
145
