MASTER CONNECTION
INSTRUCTION MANUAL
45
Master M12 17+8 Pole Connector
The M12 17-pole connector can be associated to the M12 8-pole connector for addi-
tional functions, e.g. encoders.
The features of all the electrical pins of the additional 8-pole connector are showed in
the
chart below. For the electrical pins of the 17-pole connector, see "
Master M12 17-
Pole Connector" on page 44.

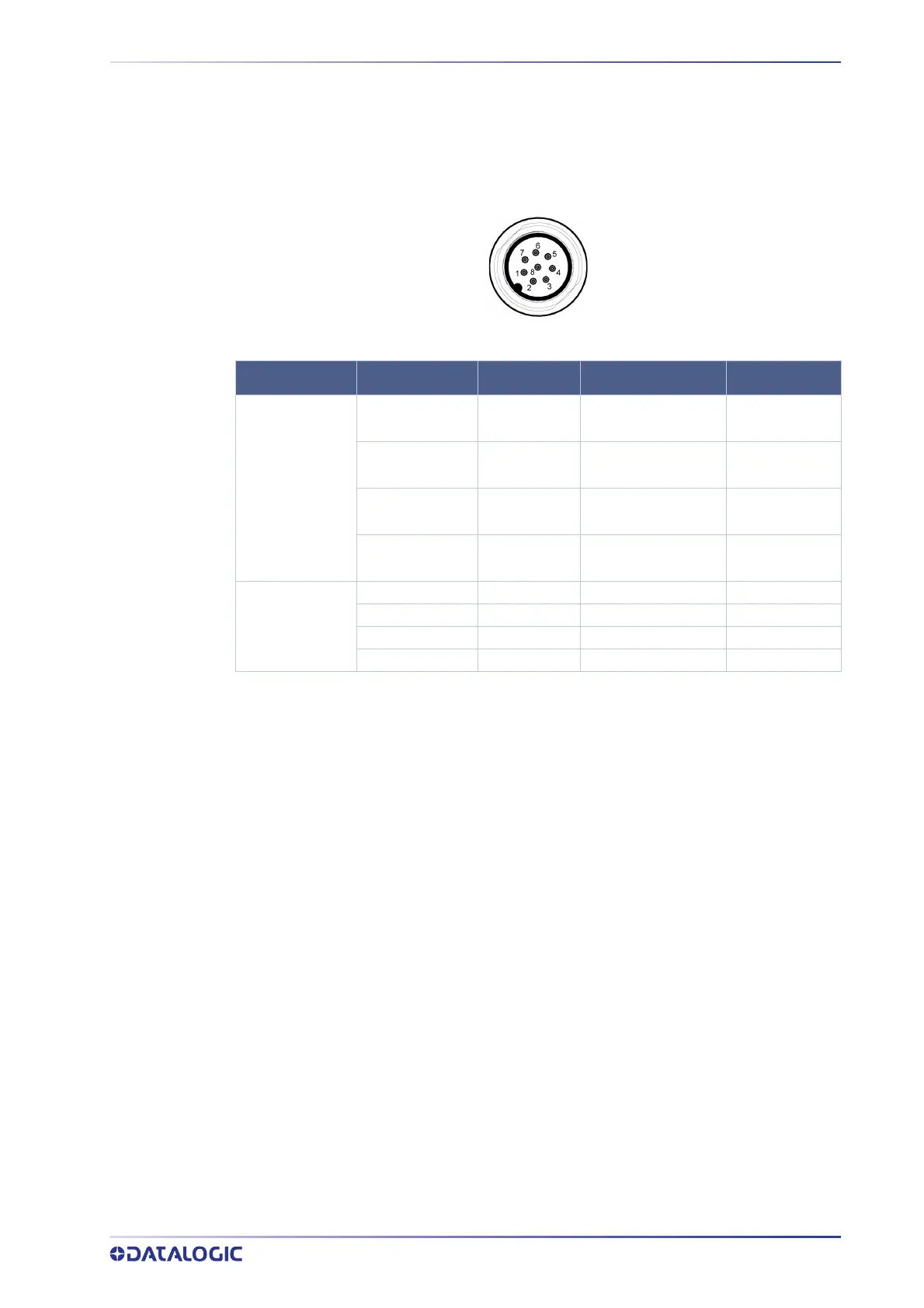

Figure 5 - Connector (M12, 8-pole Male)
CATEGORY TYPE COLOR DESCRIPTION PIN OUT
SPEED INPUT
MULTI IN SPEED GRAY
A encoder 1.
Selectable by GUI
8-4
MULTI IN SPEED PINK
B encoder 1.
Selectable by GUI
8-6
MULTI IN SPEED YELLOW
A encoder 2.
Selectable by GUI
8-5
MULTI IN SPEED RED
B encoder 2.
Selectable by GUI
8-8
INPUT
MULTI IN GREEN Selectable by GUI 8-3
MULTI IN BLUE Selectable by GUI 8-7
MULTI IN BROWN Selectable by GUI 8-2
MULTI IN WHITE Selectable by GUI 8-1
