ELECTRICAL CONNECTIONS
46
SAFERY LASER SCANNER

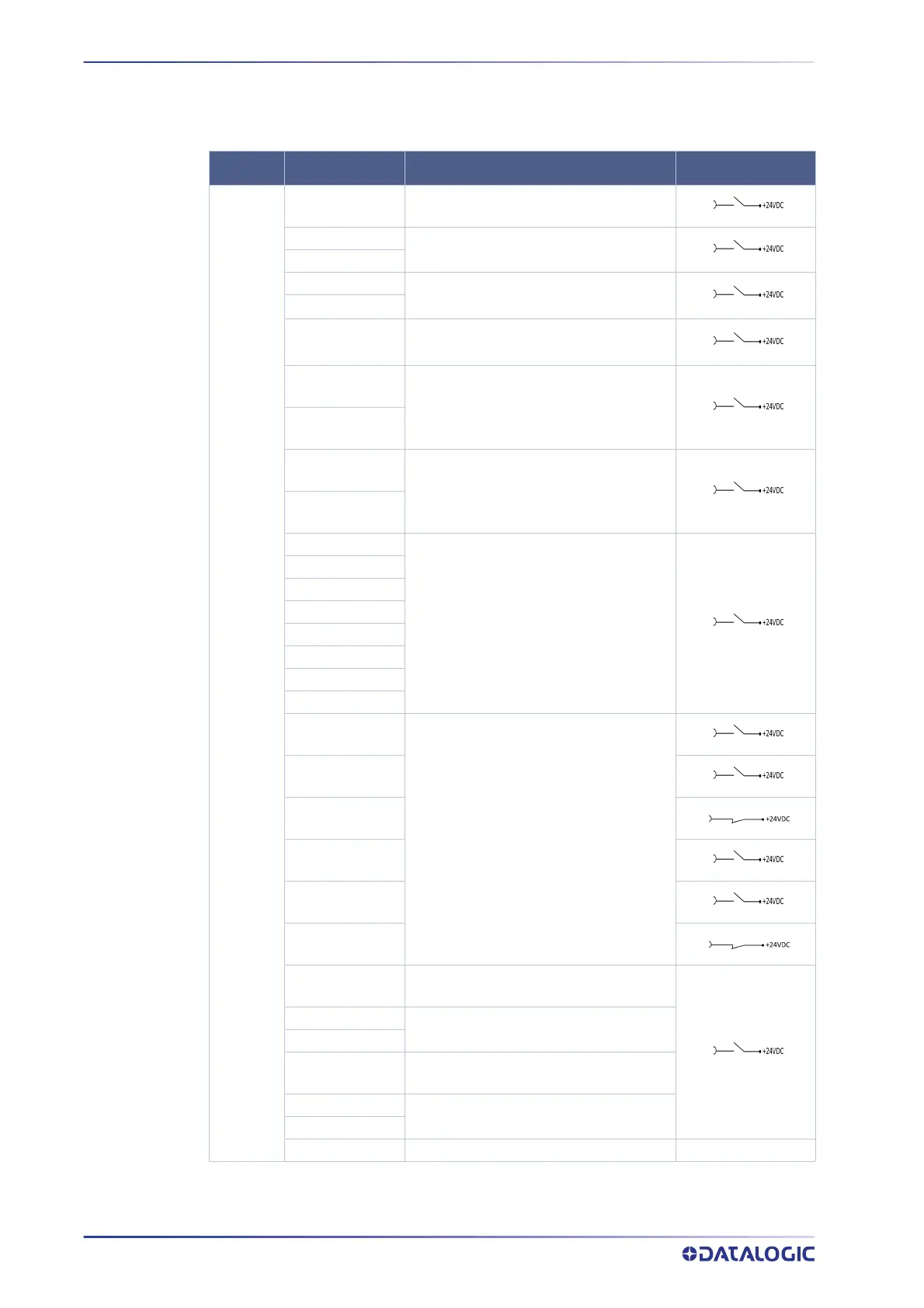

Multi In (17 pole and 17+8 pole models)
The Multi In are input signals configurable depending on the safety application needed.
These input signals can have the following functions:
MULTI IN
SHUT OFF
Enables the Shut Off function for energy
saving
EDM 1
Enables the External Device Monitoring
EDM 2
RESTART 1 Restarts the device following OSSD
Off-status
RESTART 2
RESET
Restores the device after a failure
condition
RESTART 1/
RESET
Restarts or restores the device
RESTART 2/
RESET
RESTART 1/
RESET/EDM 1
Restarts o restores the device, or
enab
les the EDM function
RESTART 2/
RESET/EDM 2
AREA SWITCH 1
Switches the detection areas by
emplo
ying external signals
AREA SWITCH 2
AREA SWITCH 3
AREA SWITCH 4
AREA SWITCH 5
AREA SWITCH 6
AREA SWITCH 7
AREA SWITCH 8
OVERRIDE 11
(PULSED)
Enables the override function (either
pulse
d or level)
OVERRIDE 11
(LEVEL)
OVERRIDE 12
(LEVEL)
OVERRIDE 21
(PULSED)
OVERRIDE 21
(LEVEL)
OVERRIDE 22
(PULSED)
MUTING
ENABLE 1
If it is a high level, the Muting feature is
enabled, and Muting will be performed
MUTING 11
Automatically deactivates the safety
status on
the whole safety zone
MUTING 12
MUTING
ENABLE 2
If it is a high level, the Muting feature is
en
abled, and Muting will be performed
MUTING 21
Automatically deactivates the safety
status on
the whole safety zone
MUTING 22
NO FUNCTION not used
TYPE FUNCTION DESCRIPTION CONNECTION
