MASTER CONNECTION
INSTRUCTION MANUAL 47

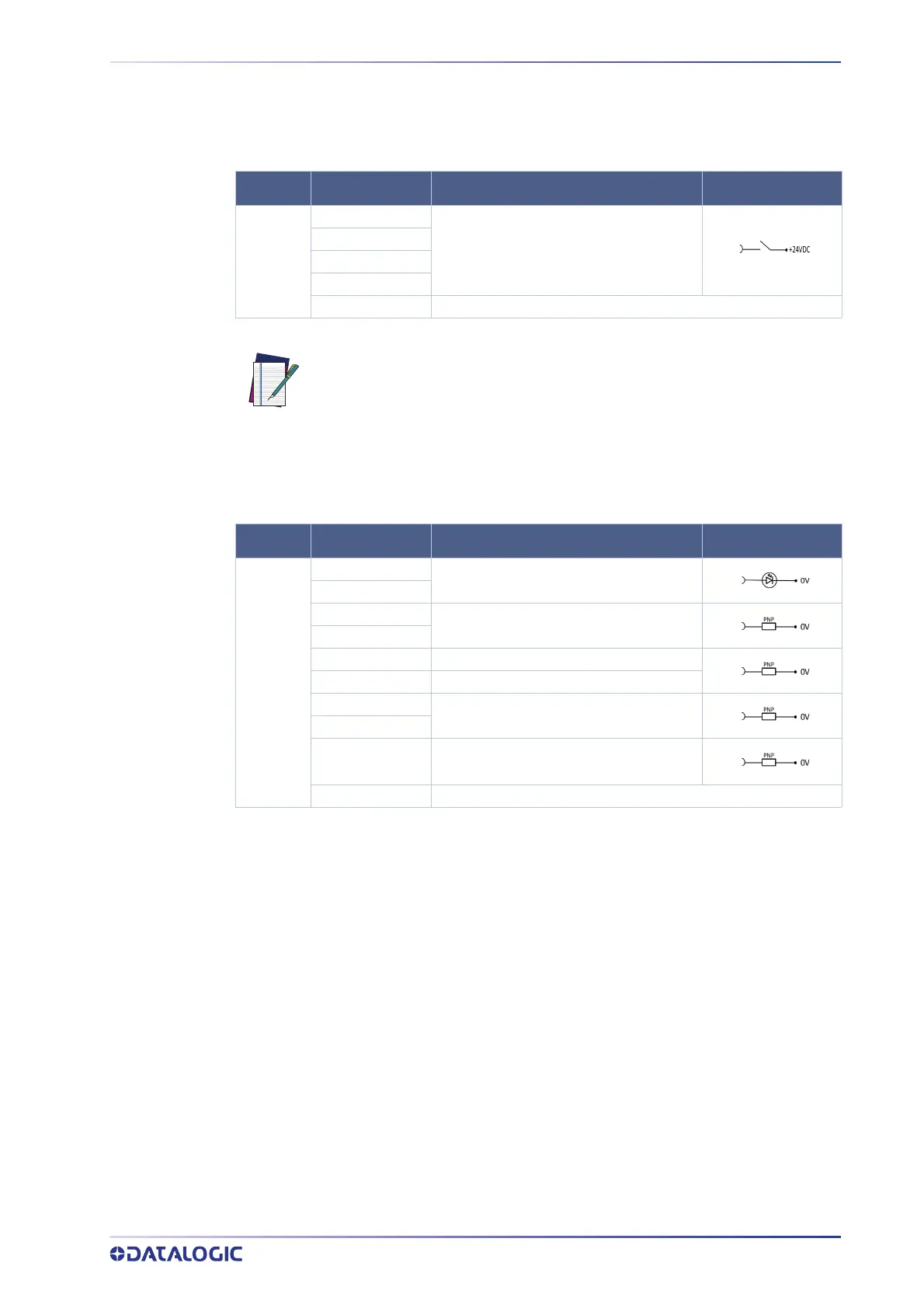

Multi In Speed (17+8 pole models)
The Multi In Speed are input signals configurable depending on the safety application
needed. If the application uses encoders, all encoder inputs are employed (ENCODER
11, ENCODER 12, ENCODER 21, ENCODER 22).
MULTI IN
SPEED
ENCODER 11
Enables the encoder function.
Both couples are automatically acti-
vated.
ENCODER 12
ENCODER 21
ENCODER 22
MULTI IN Refer to "Multi
In (17 pole and 17+8 pole models)" on page 46
NOTE
Multi Out (17 pole and 17+8 pole models)
The Multi Out are output signals, configurable depending on the safety application
needed. These outputs signals can have the following functions:
MULTI
OUT
MUTING LAMP 1
Active Muting function signal. Connect
LED lamp pr
oviding it with 24 Vdc
MUTING LAMP 2
WARNING 1
Outputs for detections in the warning
area
WARNING 2
ALARM 1 Clean window
ALARM 2 Device error
OSSD 21
Activates the second OSSD pair
OSSD 22
OVERRIDE
STATUS
If it is high level, Override is active
NO FUNCTION not used
TYPE FUNCTION DESCRIPTION CONNECTION
Make sure that the signals are aligned with the pin features and their spe-
cific function. In addition, they must be correctly connected to the external
device.
TYPE FUNCTION DESCRIPTION CONNECTION
