Master M12 17-Pole Connector
The M12 17-pole Master model has various pin typologies. The features of all the elec-
trical pins are showed in the chart below.

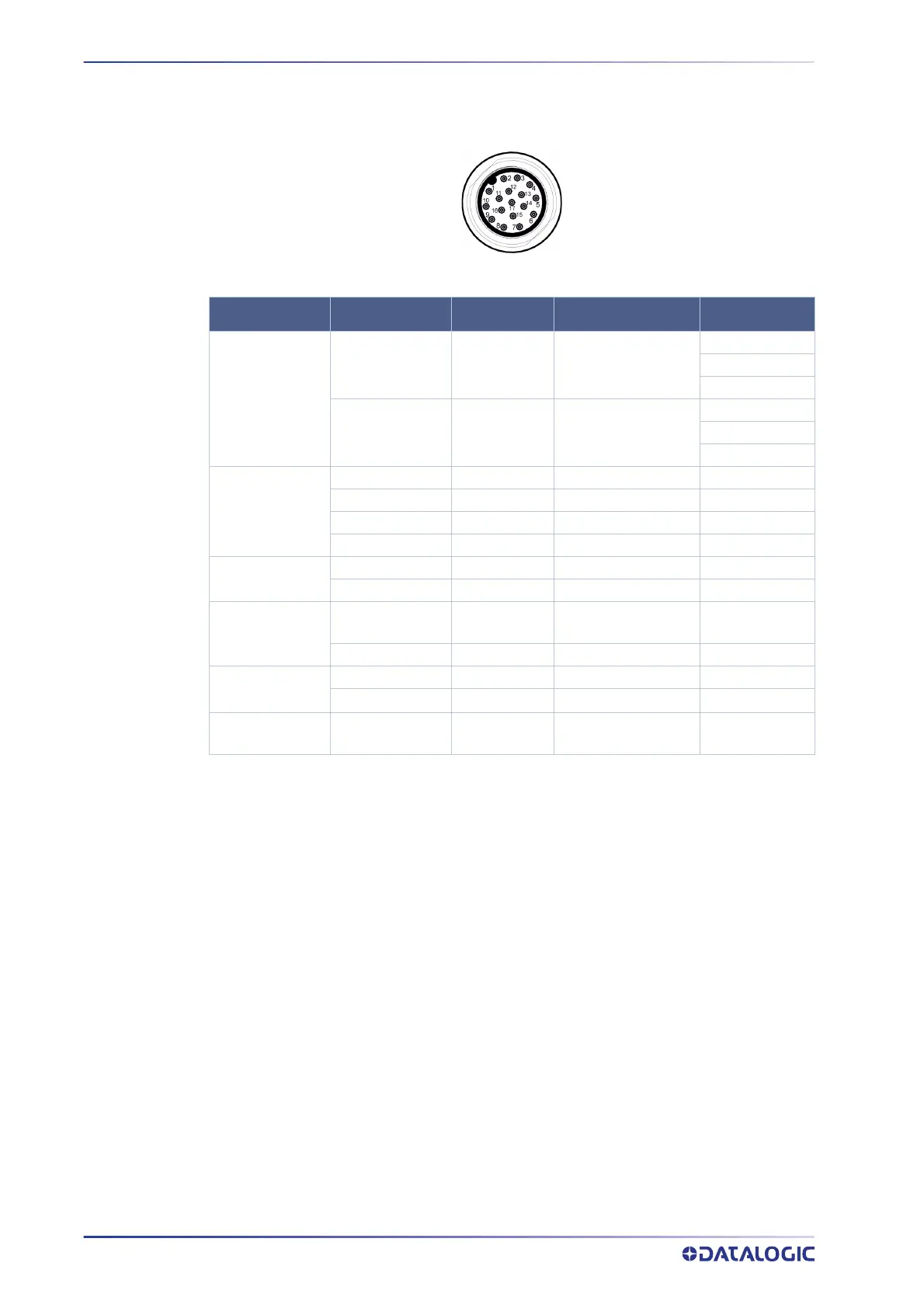

Figure 4 - Connector (M12, 17-pole Male)
CATEGORY TYPE COLOR DESCRIPTION PIN OUT
POWER
POWER SUPPLY BROWN 24Vdc
1
10
11
GND_ISO BLUE 0 V
2
3
12
INPUT
MULTI IN WHITE Selectable by GUI 14
MULTI IN BLACK Selectable by GUI 7
MULTI IN ORANGE Selectable by GUI 6
MULTI IN VIOLET Selectable by GUI 17
OUTPUT
MULTI OUT GREEN Selectable by GUI 4
MULTI OUT YELLOW Selectable by GUI 15
INPUT/OUTPUT
MULTI IN/OUT
WHITE/
BLACK
Selectable by GUI 5
MULTI IN/OUT RED Selectable by GUI 9
SAFETY
OUTPUTS
OSSD 1/1 GRAY Safety Output 13
OSSD 1/2 PINK Safety Output 8
OTHER F_EARTH
YELLOW/
GREEN
Functional Earth 16
