NOTE
MASTER CONNECTION
INSTRUCTION MANUAL
43

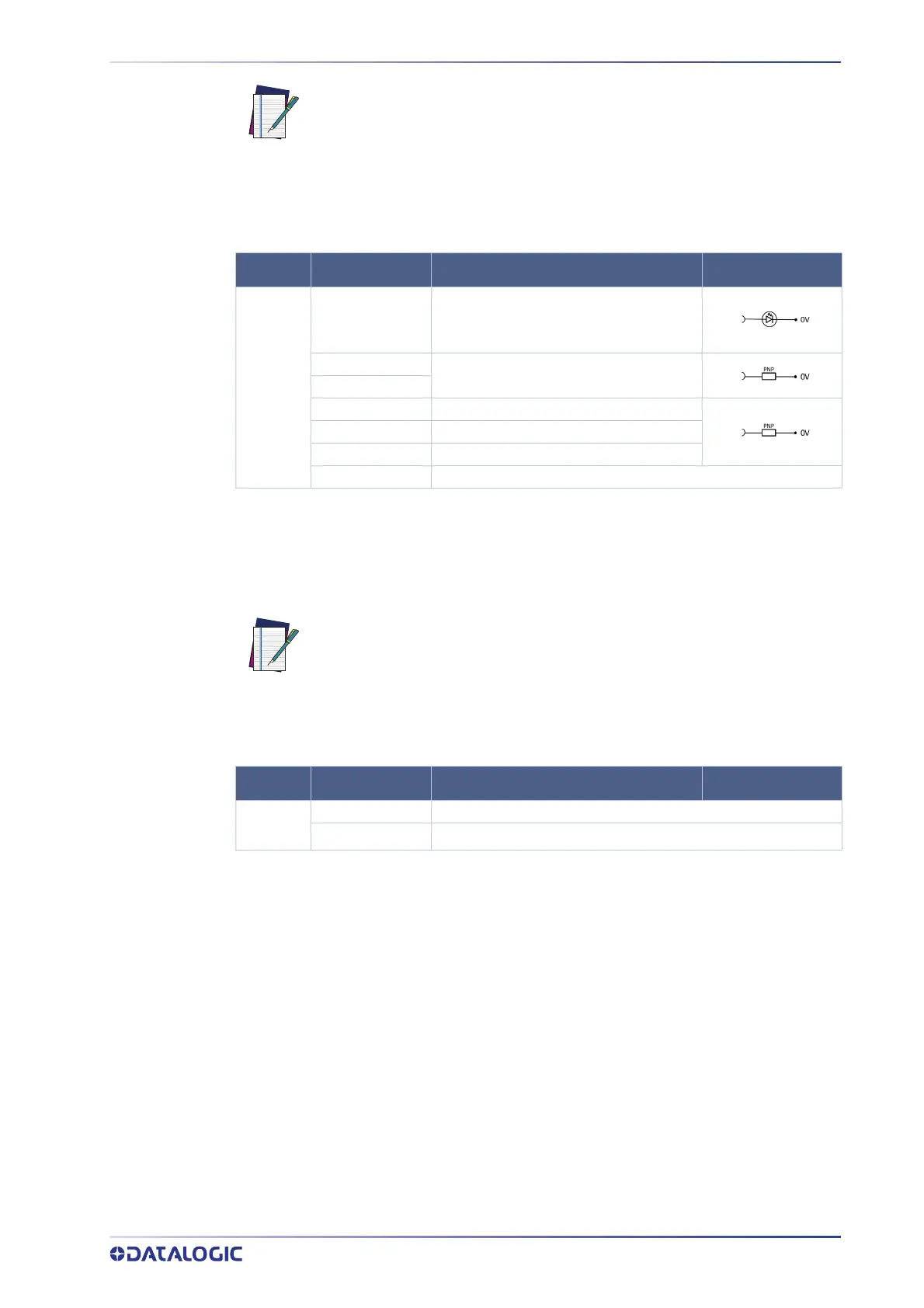

Multi Out (8-pole and 12-pole models)
The Multi Out are output signals, configurable depending on the safety application
needed. These output signals can be configured for the 8-pole and 12-pole models:
MULTI
OUT
MUTING LAMP 1
Active Muting function signal.
Connect LED lamp providing it with 24
Vd
c
WARNING 1
Outputs for detections in the warning
ar
ea
WARNING 2
ALARM 1 Clean window
ALARM 2 Device error
ALARM 3 Override ON
NO FUNCTION not used
Multi In/Out (8-pole and 12-pole models)
The Multi In/Out are signals that can be configured both as inputs and outputs. Laser
Sentinel allows the operator to connect from one to three OSSD pairs; it is possible to
assign to the same electrical pin input and output signals defined as Multi In or Multi
Out.
NOTE
MULTI
IN/OUT
MULTI IN MULTI IN/OUT inputs can be configured as MULTI IN inputs
MULTI OUT MULTI IN/OUT inputs can be configured as MULTI OUT inputs
Make sure that the signals are aligned with the pin features and their spe-
cific function. In addition, they must be correctly connected to the external
device.
TYPE FUNCTION DESCRIPTION CONNECTION
The additional OSSDs are aligned to the main outputs OSSD11 and OSSD12
requirements (OSSD11 and OSSD12 are not configurable). If a Multi Out pin
is selected, a second signal linked to it will be automatically configured
(EN 61496). This will ensure that the two Multi Out outputs will be used for
the same purpose.
TYPE FUNCTION DESCRIPTION CONNECTION
