PROTECTION BRACKET MOUNTING (SLS-BRACKET-C) (OPTIONAL)
INSTRUCTION MANUAL
29
PROTECTION BRACKET MOUNTING (SLS-BRACKET-C)
(OPTIONAL)
The protection bracket is an optional accessory, which provides protection to the device
if it is located in a specific work environment where the device may be hit by falling
objects or subject to collision.
Fasten the Protection Bracket (1) on the back of
the Laser Sentinel, by using two M5
screws (2) (Maximum 2.9-3.1 Nm Torque).
NOTE

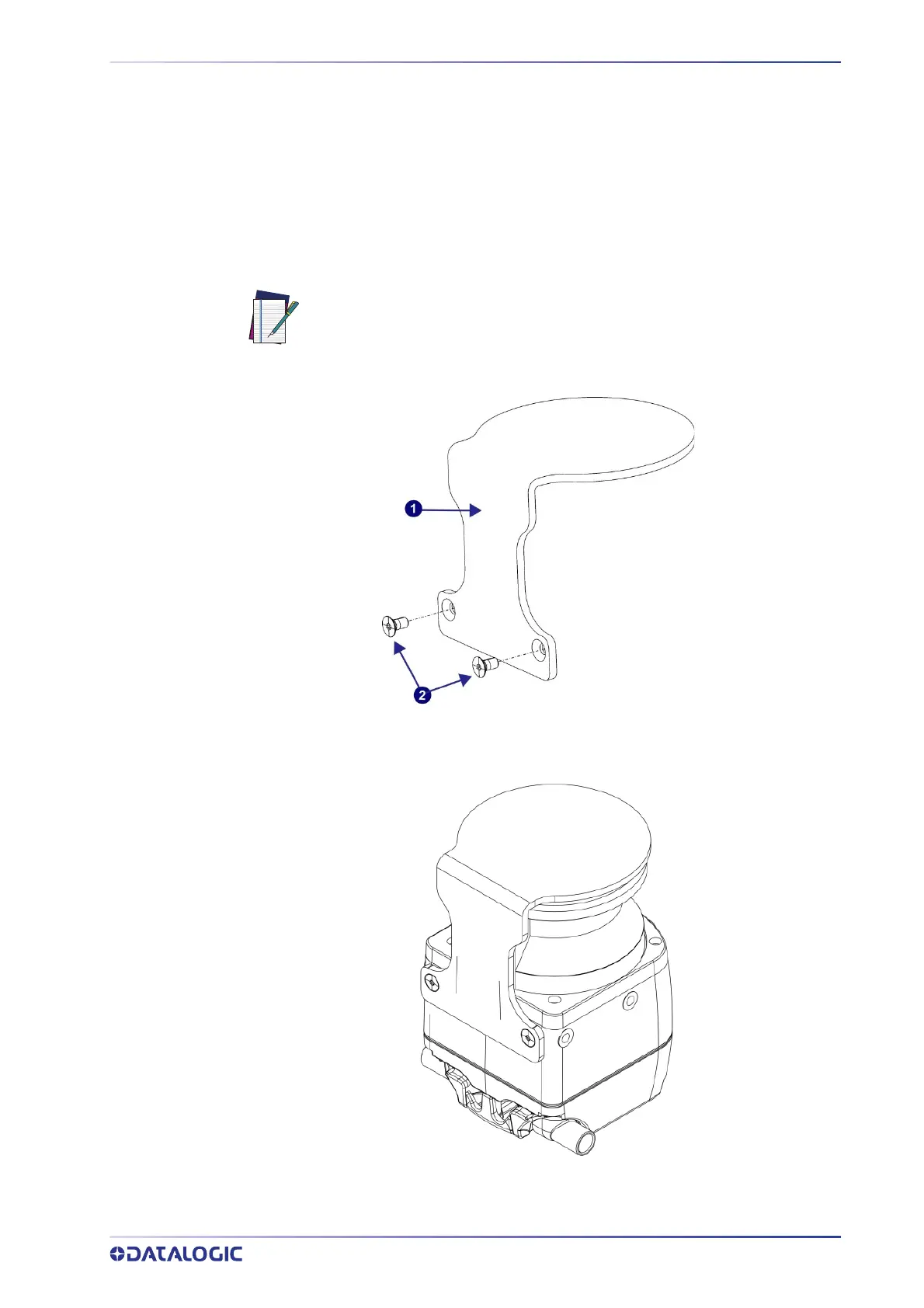

Figure 2 - Protection Bracket Mounting
Figure 3 - Protection Bracket Mounted to Scanner
The SLS-BRACKET-C must be mounted on the device before the other fas-
tening accessories.
