UNPROTECTED ZONE
INSTRUCTION MANUAL 21
UNPROTECTED ZONE
The unprotected zone (a) must be small enough to ensure that a person cannot
approach the danger zone or stay between the danger zone and the safety zone without
being detected. This can require additional mechanical protection.

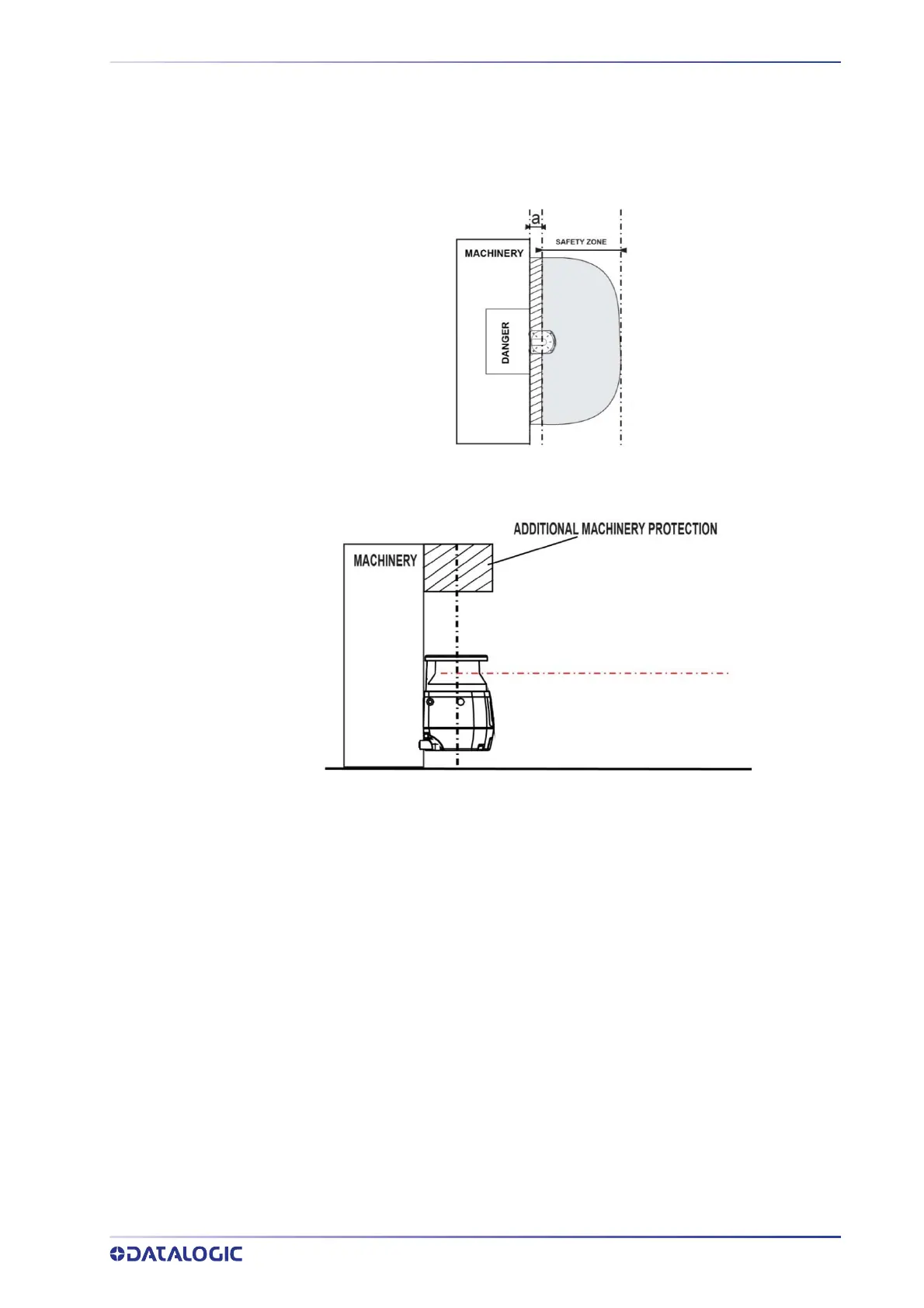

Figure 8 - Safety Distance Example (Top View)
Figure 9 - Safety Distance Example (Side V
iew)
