OVERRIDE
INSTRUCTION MANUAL
75

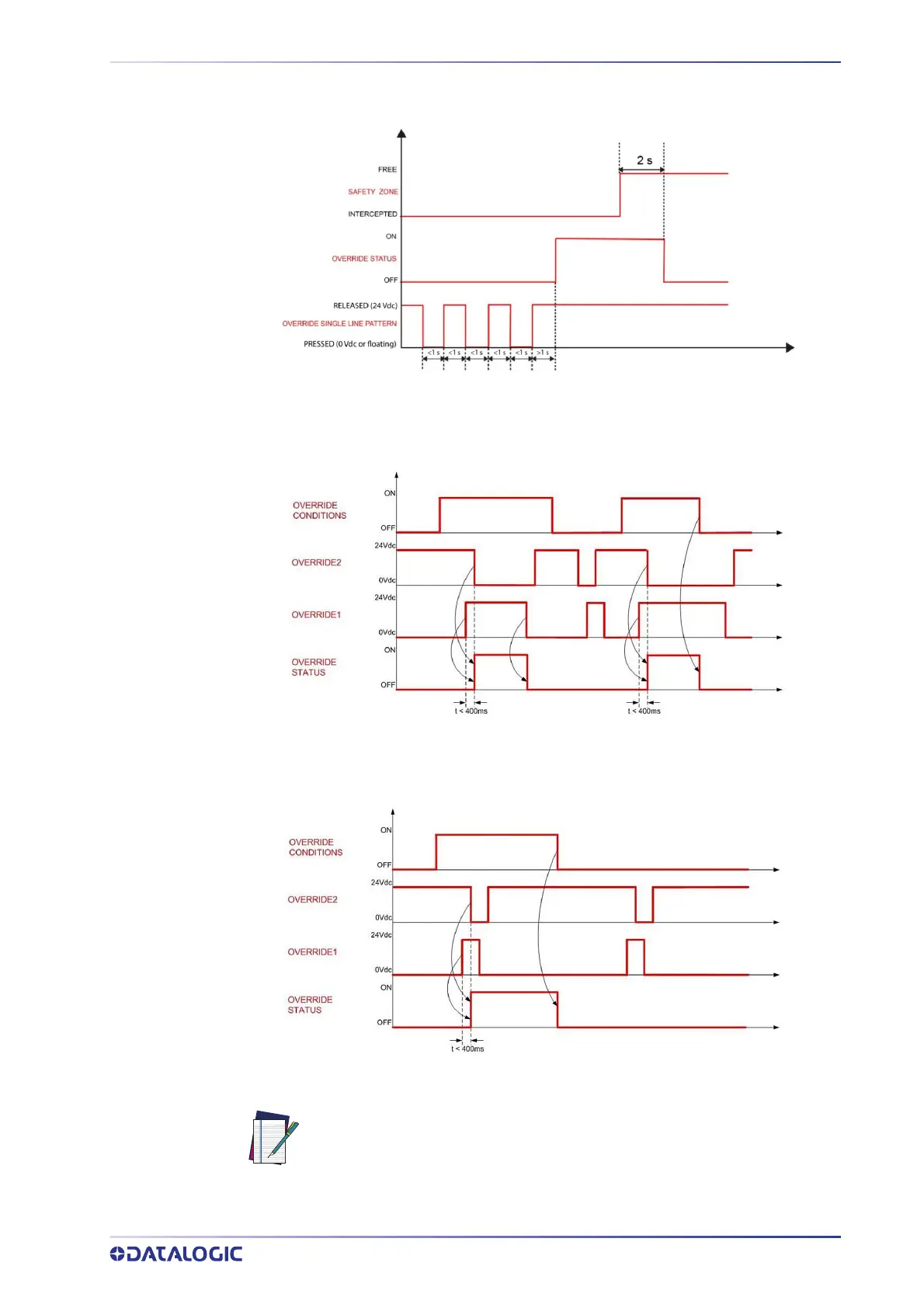

Single input line pattern
The input sequence to be followed for activation is indicated in the figure below:
Level triggered pattern
The input sequence to be followed for activation is indicated in the figure below:
Edge triggered pattern
The input sequence to be followed for activation is indicated in the figure below:
NOTE
The Level and the Edge triggered patterns can be enabled with the M12 12
or 17-pole Master connector only.
