MECHANICAL MOUNTING
36 SAFERY LASER SCANNER

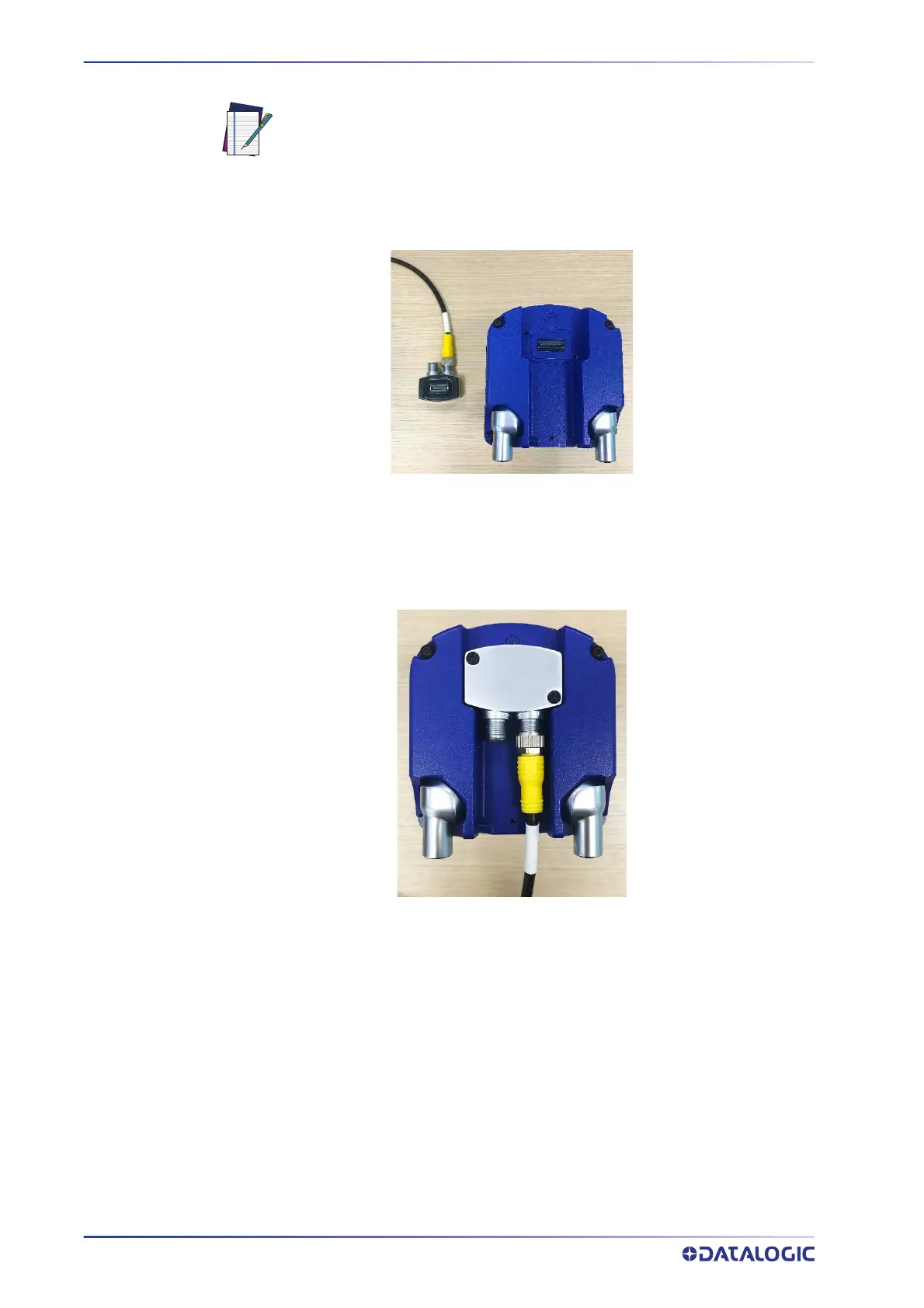

4. Connect the power M12 8/12/17-pole connector (according to model).
5. Insert the memory group and tighten the two M3 fixing screws (Torque 1 N/m).
6. Replace the protective cover, screw and tighten the two M3 screws (Torque 0.5 N/
m).
The memory group is tightened to the scanner with captive screws, so the
operator only needs to loosen them to extract it from the scanner.
