Datalogic Laser Sentinel - Input Delay Max [msec]; Area Switch No.; Active Input No.; Encoder Δ [%]

NOTE
NOTE
AUTOMATIC AND MANUAL RESTART
INSTRUCTION MANUAL 61

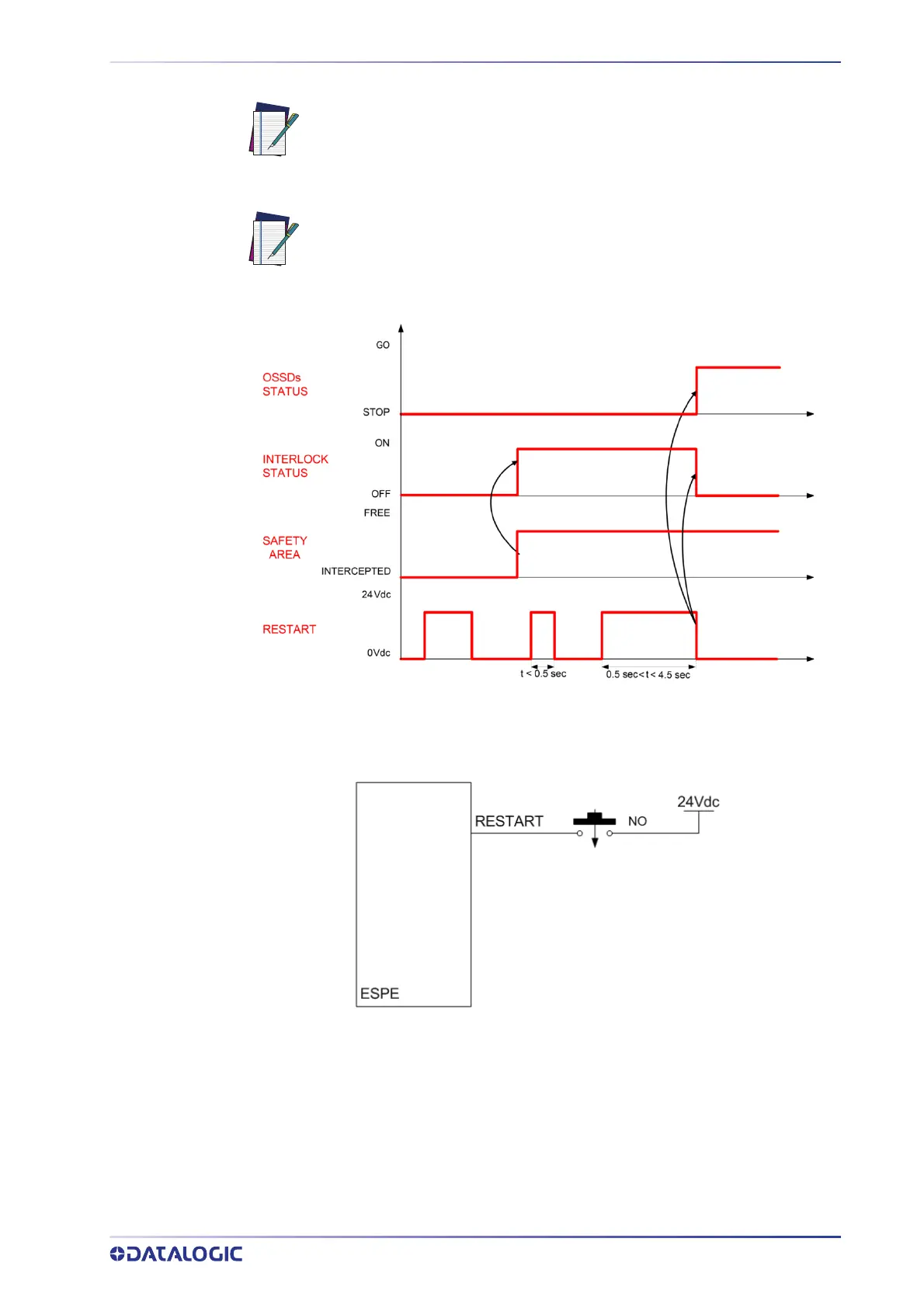

Figure 7 - Restart timing (manual)
Figure 8 - Restart connection (manual)
The Manual Restart input must be connected to a 24 Vdc normally open
contact.
If an object is not removed from the Safety zone and the operator attempts
to restart the device, by pressing the button for more than 500 ms, the
Safety Laser Scanner remains in Interlock OFF status.
