MX-E Series Hardware Guide Input Wiring
103 Datalogic S.r.l.
Current Sourcing (PNP) Input Circuit

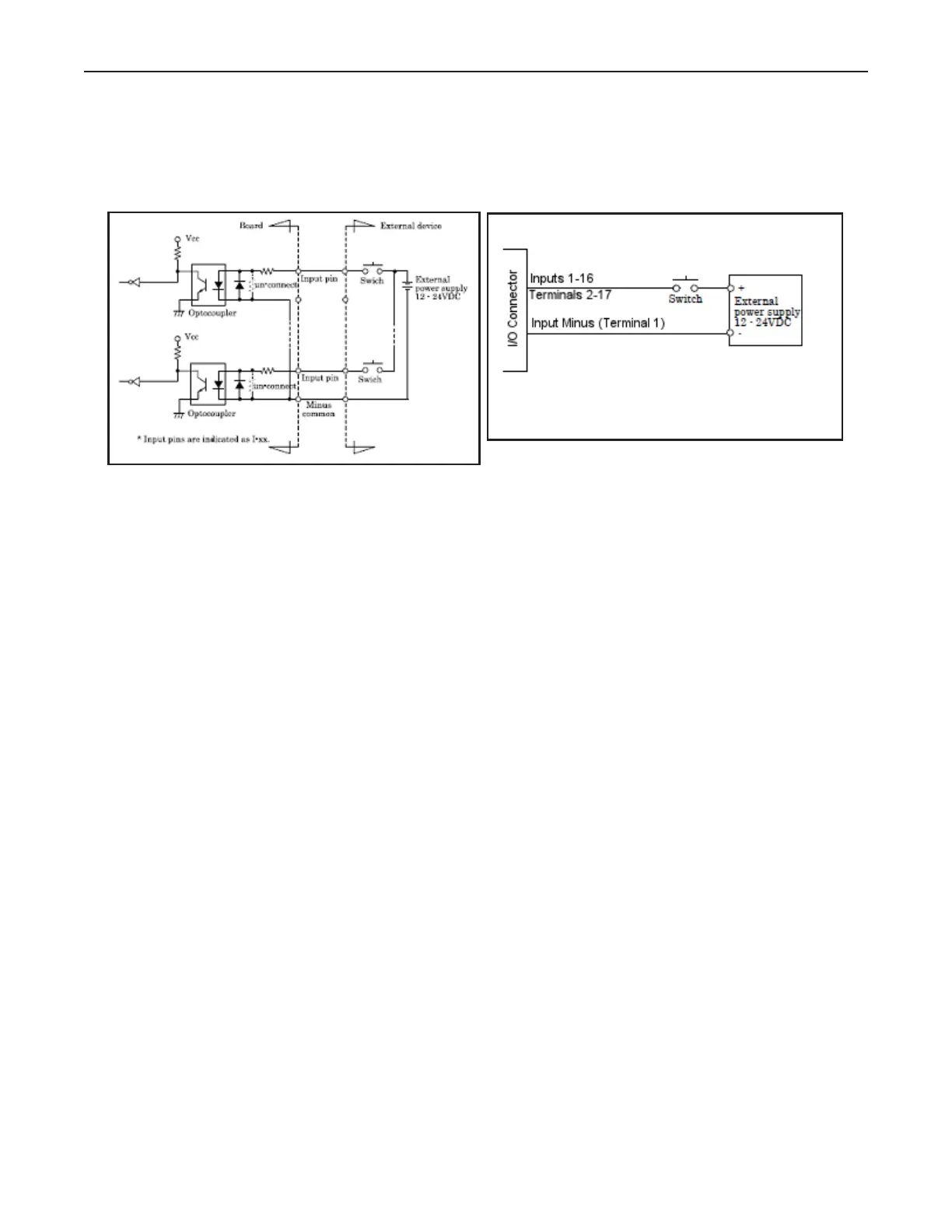

The diagram below shows how to wire a sensor to a general purpose or event input for model numbers containing the let-
ter “P.” All inputs are compatible with current sourcing output signals. Pin 1 is the “Input Minus Common” connection for
all the inputs.
