Datalogic MX-E Series User Manual

MX-E Series Hardware Guide M1xx and E1xx Camera Dimensions
25 Datalogic S.r.l.

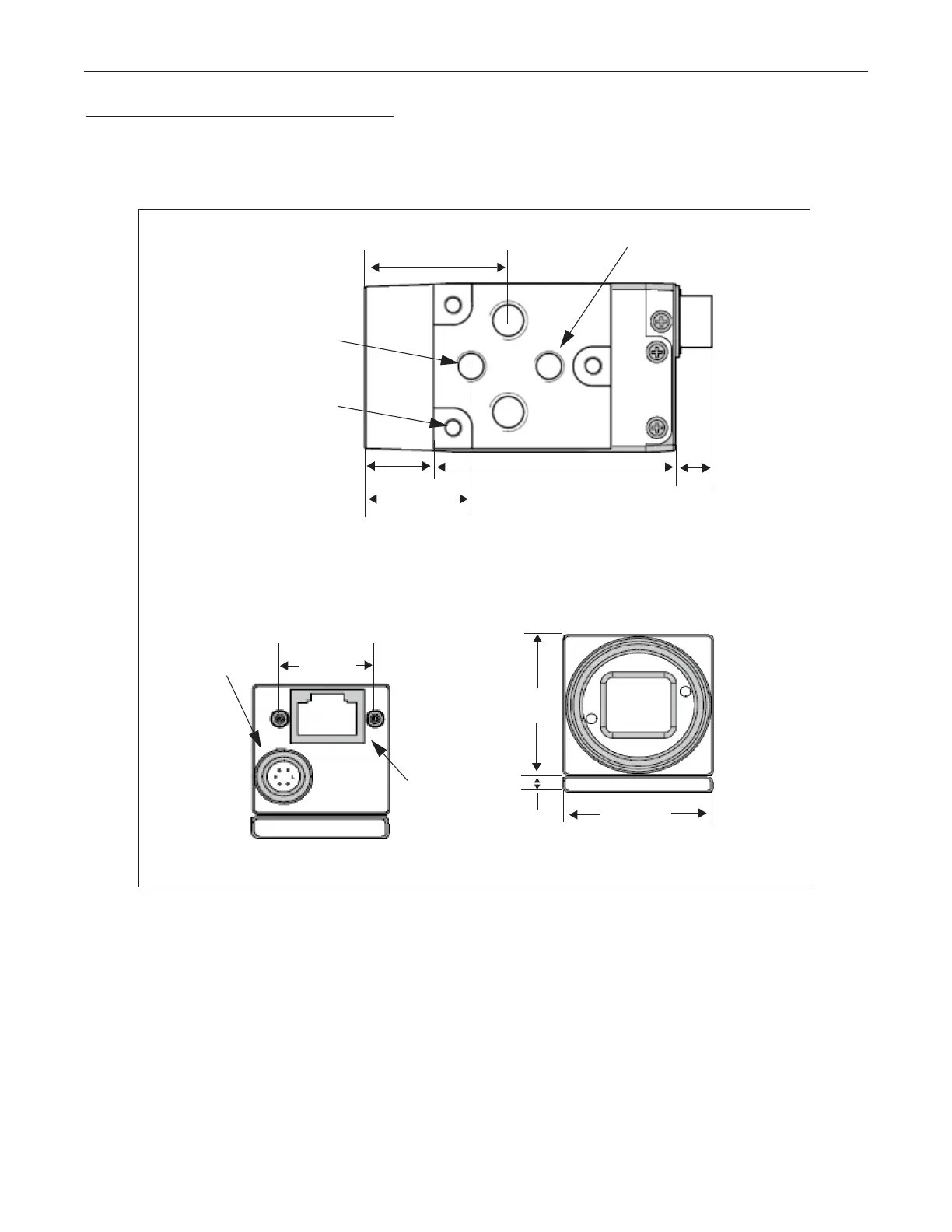

M1xx and E1xx Camera Dimensions
These cameras weighs approximately 4 ounces (112 grams) with a mounting block, but without a lens.
UNITS: inch [mm.]
Power/Trigger
Connection
Ethernet
Connection
0.79 [20]
Rear View
1.14 [29]
1.14 [29]
0.37 [9.5]
Front View
Mounting Block (95A903029) and Camera Body
Bottom View
(also see “Mounting Block (95A903029)” on page 30)
1.0 [25]
0..5 [12]
Block Mounting holes
3 x M3
Fasteners provided
2 x 1/4-20; 0.31 [8] deep
2 x M5
0.31 [8] deep
0.74 [18.7]
1.65 [42]
0.25 [6.3]
