M565/M570/M575/M580 Camera MX-E Series Hardware Guide
Datalogic S.r.l. 92
M565/M570/M575/M580 Camera
These cameras have the following specifications.
M565 camera
This camera captures a 2048 pixel width image with a maximum line rate of 51khz.It is a monochrome, GigE line scan
camera with the following specifications.
M565/M570/M575/M580 Common Specifications
Lens Mount F or C mount; Add -F to part number for F mount
Cabling 6-pin cable provides power. 12-pin cable provides frame and line triggers. Ether-
net cable transmits video
Operating Environment Temperature: 0 to +50 C (+32 to 122 F)
Humidity: 20 to 80% (non-condensed)
Vibration 5g (11 to 200 Hz)
Weight ~8 ounces (240 grams); ~11.6 ounces (330 grams) with F-mount lens adapter
Pick-up Device Linear CMOS
M565 Specifications
Sensor Size 2048 pixels
Capture Rate 51,000 lines per second maximum
Pixel Size 7 x 7 micrometers
Power +12 to +24 VDC provided by 6-pin camera cable (3 Watts maximum)
Maximum Frame Height 12288 Pixels
Software Version Impact Software Release 11.2.1.11 or greater

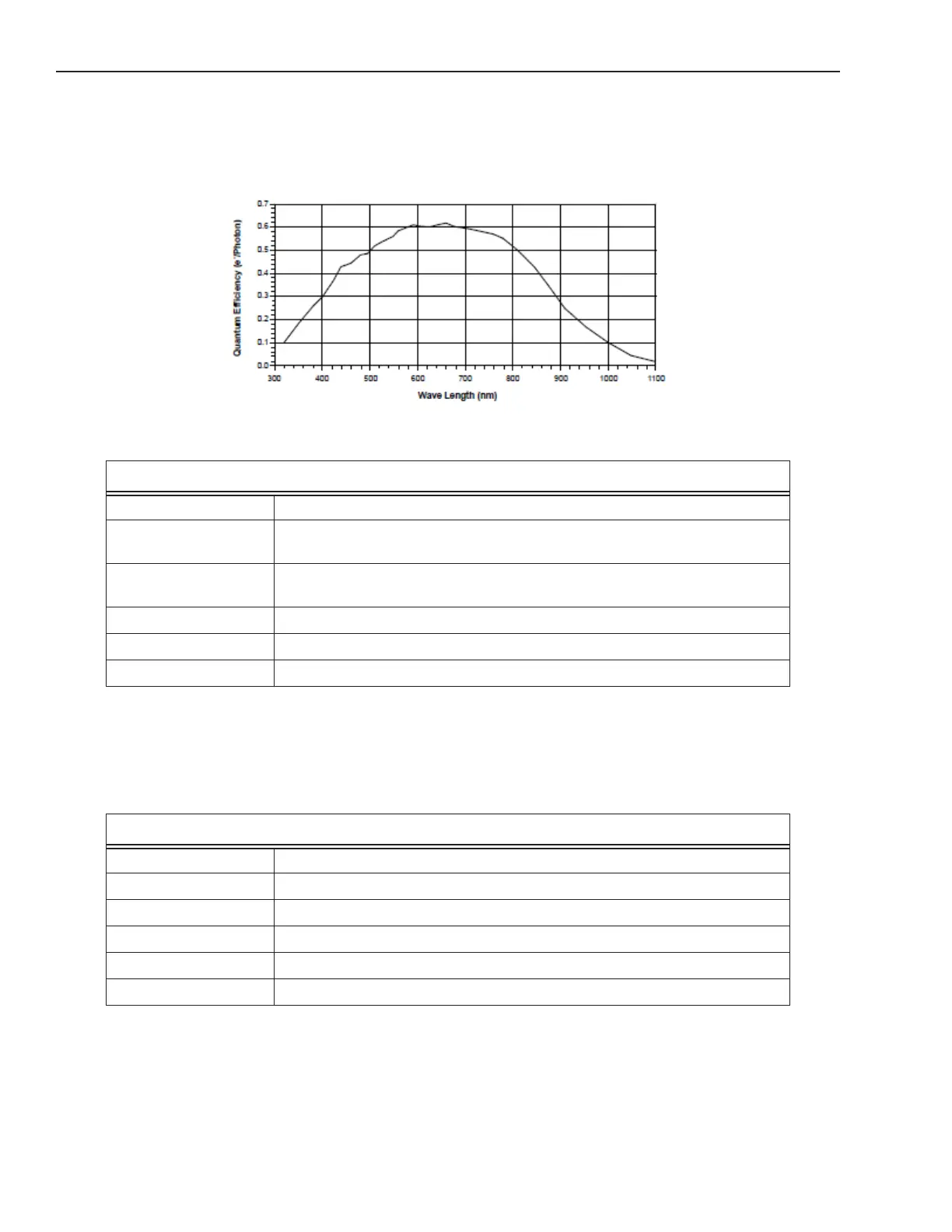

Spectral Response (excludes lens and light source characteristics)
