Datalogic MX-E Series User Manual

MX-E Series Hardware Guide M6xx Camera Dimensions
29 Datalogic S.r.l.

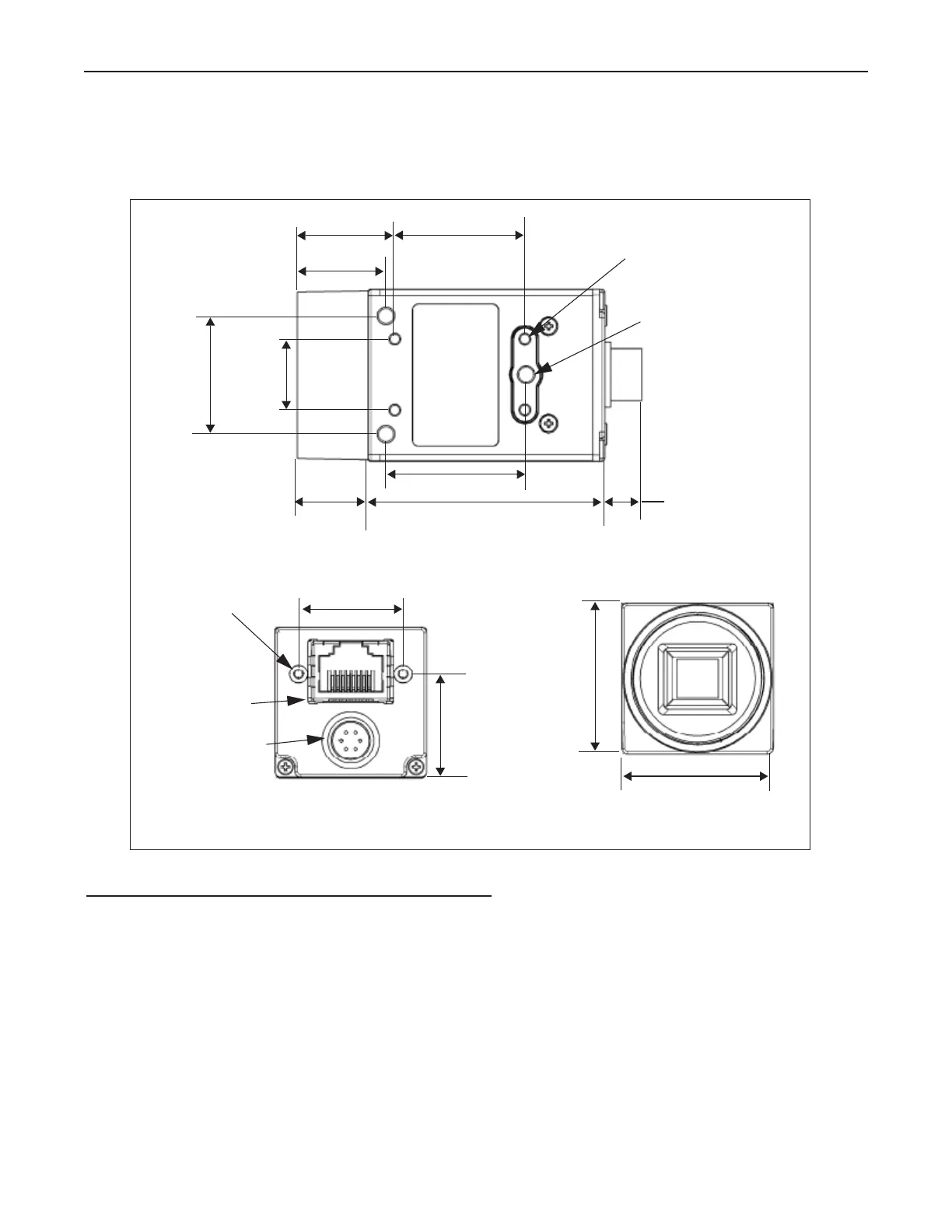

M6xx Camera Dimensions
The M6xx series of cameras weighs approximately 1.9 ounces (53 grams) without a lens.
Mounting the Camera
This section provides instructions for mounting Datalogic cameras. For information about third-party cameras, consult the
manufacturer’s documentation for those cameras.
To mount an M1xx or E1xx camera
1. With the mounting block held tightly against the camera body, insert the mounting bolts through the mounting
bolt holes (see diagram below).
2. Turn the mounting bolt clockwise to tighten the block and secure it to the camera.
Mounting Holes
M3; 3 mm deep (3 ea.)
Camera body Bottom View
UNITS: inch [mm.]
Mounting Holes
M2; 3mm deep (4 ea.)
0.866 [22.0]0.65 [16.5]
0.5 [12]
1.575 [40]
0.25 [6.3]
0.933 [23.7]
Trigger Connection
Ethernet/POE
Connection
0.79 [20]
Rear View
1.14 [29]
1.14 [29]
Front View
0.591 [15]
0.79 [20]
Mounting Holes
M2; 4 mm deep (2 ea.)
0.788 [20]
0.473 [12]
