Datalogic MX-E Series User Manual

M565/M570/M575/M580 Camera Dimensions MX-E Series Hardware Guide
Datalogic S.r.l. 28

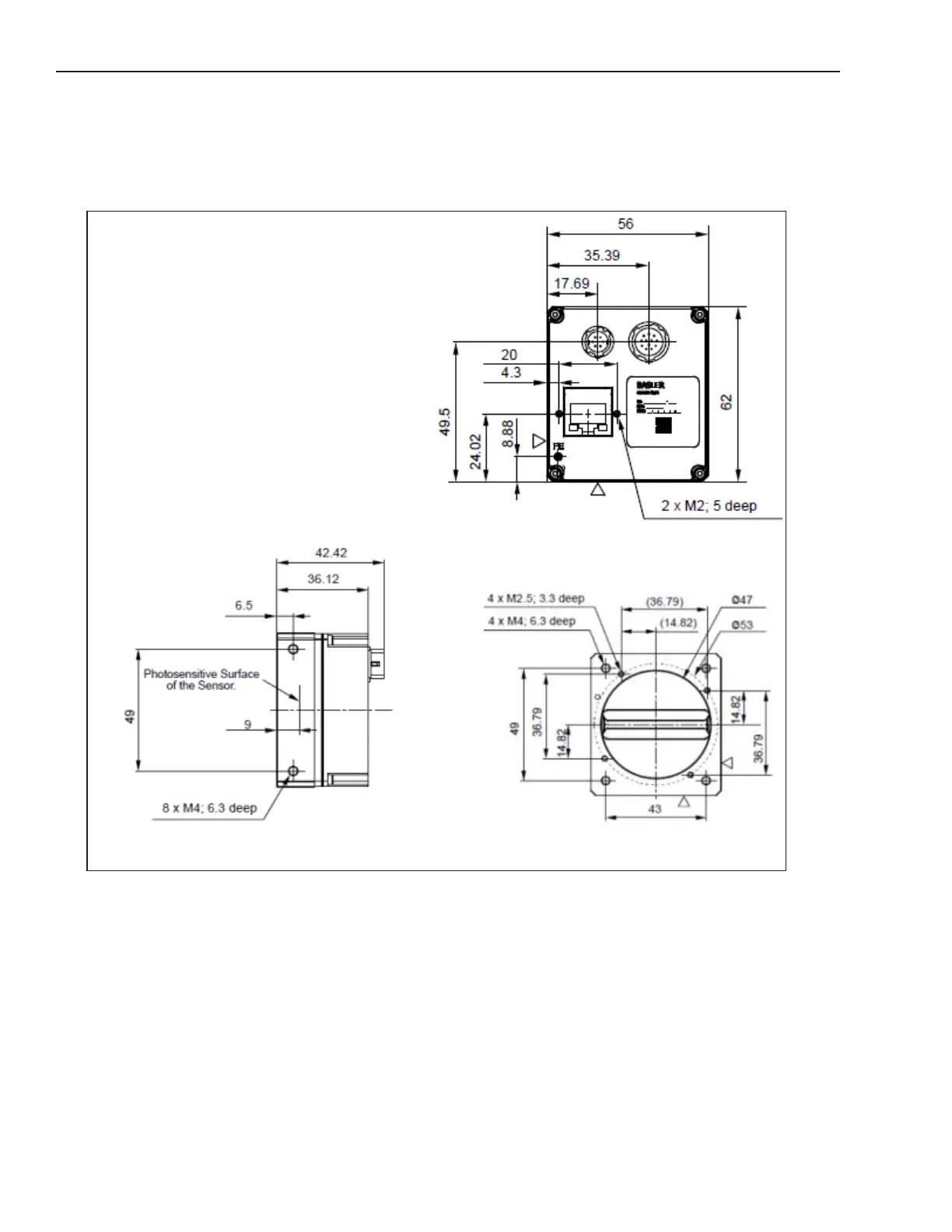

M565/M570/M575/M580 Camera Dimensions
The camera weighs approximately 8 ounces (240 grams) without a lens. With an F-mount lens adapter the weight is
approximately 11.6 ounces (330 grams).
Rear View
UNITS: mm.
A = I/O Connection
B = Power Connection
C =Ethernet Connection
Green LED = Connection Active
Yellow LED = Data Transfer
Bottom View
Front View
B
A
C
