MX-E Series Hardware Guide M3xx Camera Dimensions
27 Datalogic S.r.l.

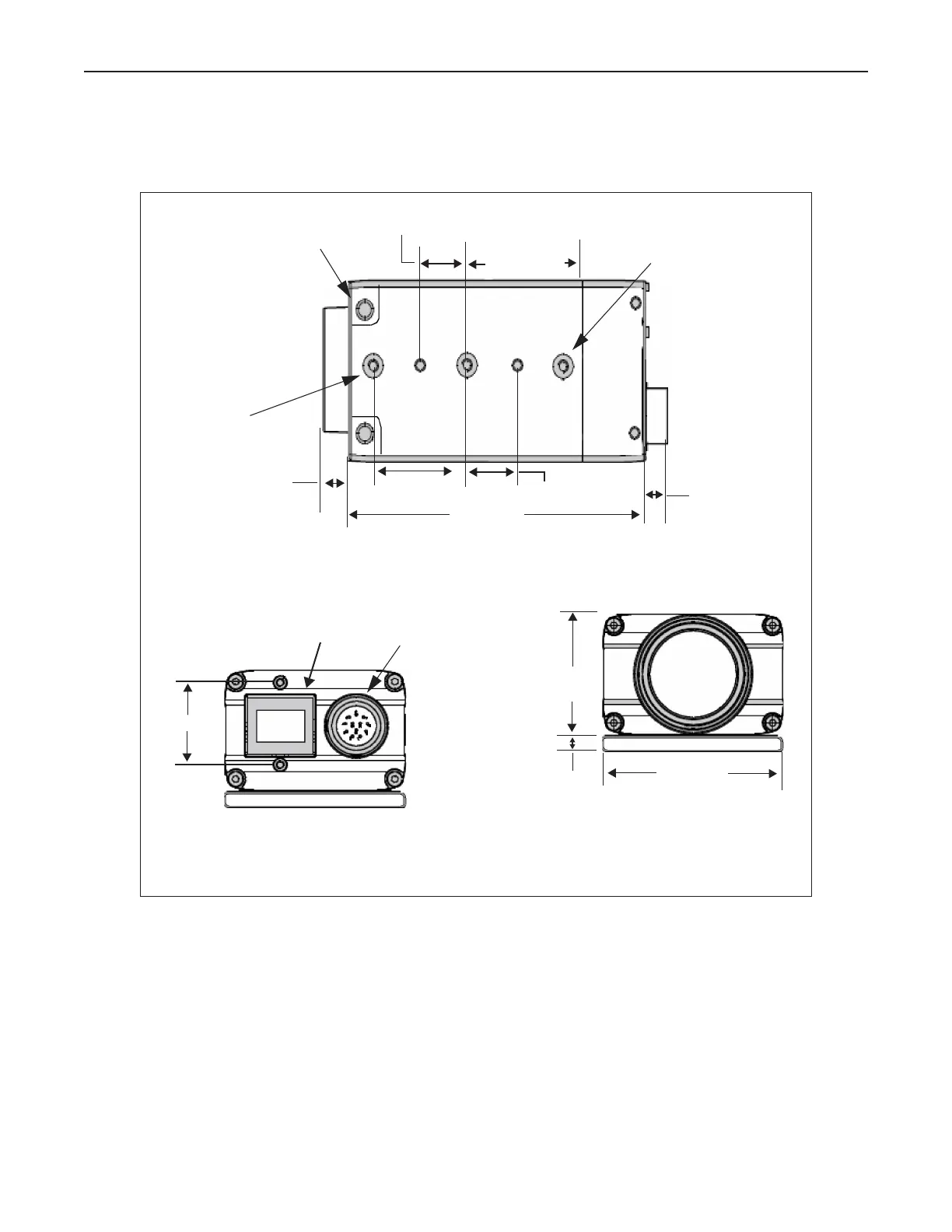

M3xx Camera Dimensions
The M3xx series of cameras weighs approximately 8.5 ounces (242 grams) with a mounting block, but without a lens
Mounting Block and Camera body
Bottom View
UNITS: inch [mm.]
Power/Trigger
Connection
Ethernet
Connection
0.79 [20]
Rear View
1.7 [44]
1.14 [29]
0.37 [9.5]
Front View
Block Mounting bolts
M3; 4.5mm deep (2 ea.)
¼"-20; 8mm deep
(2 ea.)
M5 x 0.8; 8mm deep
(2 ea.)
0.39 [10.0]
0.94 [23.9]
0.25 [6.45]
3.41 [86.7]
0.39 [10.0]
0.21 [5.4]
0.69 [17.5]
