Camera Specifications
E-Series
E1xx, E1xxC
All E1xx cameras have the following specifications. Model numbers that end in “C” are color cameras.
E101, E101C
This camera captures a 640 x 480 pixel size image with square pixels. It can partially scan the image horizontally and ver-
tically.
E1xx Common Specifications
Lens Mount C mount
Cabling Camera cable provides trigger. Ethernet cable transmits video and provides POE.
Operating Environment Temperature: 0 to +50 C (+32 to 122 F)
Humidity: 0 to 90% (non-condensed)
Vibration 5g (11 to 200 Hz)
Power Provided by Power Over Ethernet
Weight 3.2 ounces (~90 g)
E101 Specifications
Part Number 959933022; 959933023
Pick-up Device Global Shutter CMOS - 640 (H) x 480 (V) pixels
Sensor Size 1/4" (3.8 mm) diag - 3.07mm (H) × 2.3mm (V)

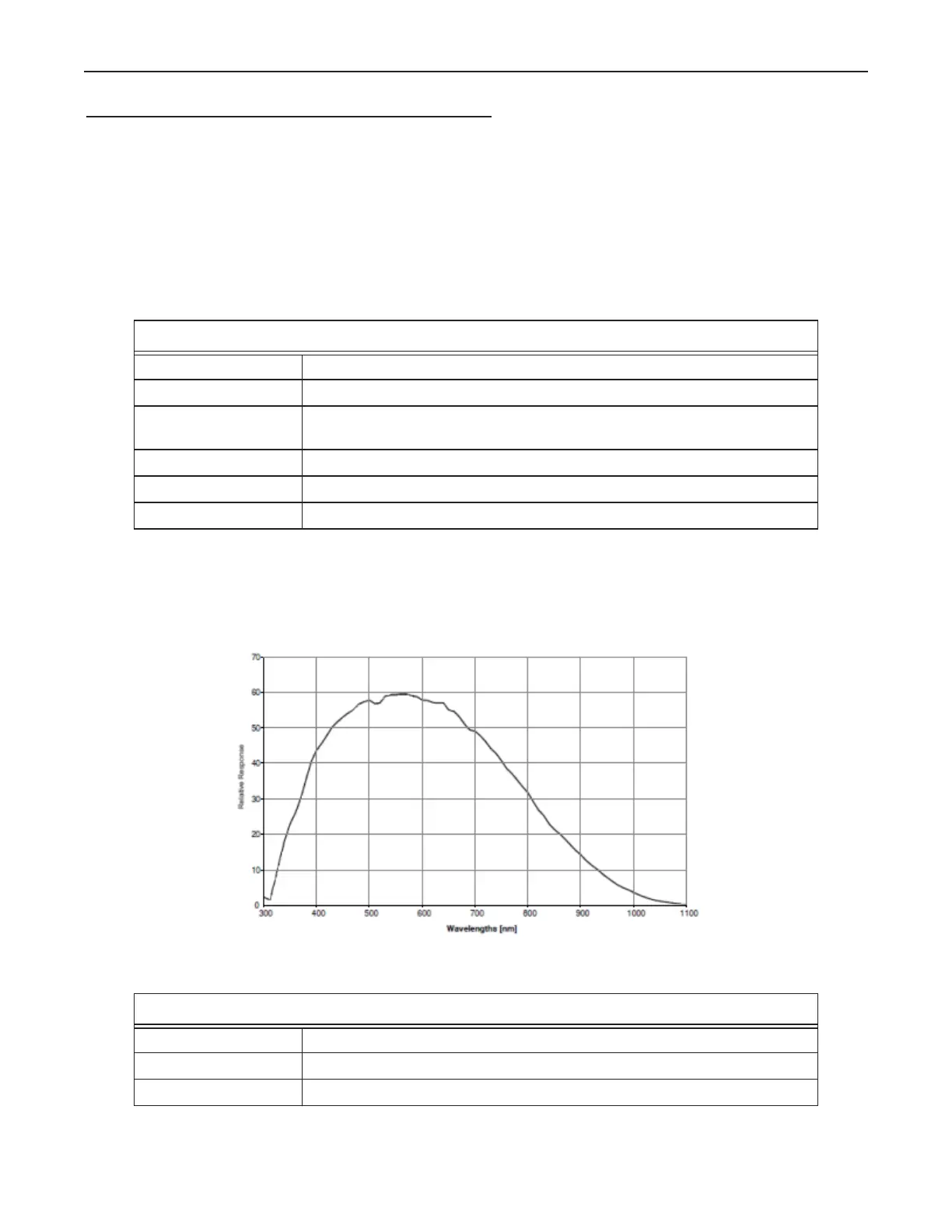

E101 Spectral Response (excludes lens and light source characteristics)
