Datalogic MX-E Series User Manual

MX-E Series Hardware Guide M290 line
91 Datalogic S.r.l.
M290 line
This camera line captures a 1628 by 1236 pixel size image with square pixels. It can partially scan the image horizontally
and vertically.
M290 Specifications
Part Number 601-0353; 601-0353-RA; 601-0380; 601-0380-RA
Pick-up Device Progressive Scan CCD - 1628 (H) x 1236 (V) pixels
Sensor Size 1/1.8" (8.923 mm) diag - 7.04mm (H) × 5.28mm (V)
Capture Rate 14 full-resolution fps; higher with partial scan
Pixel Size 4.4 x 4.4 micrometers
Gain 100% to 1023%
Shutter Open 31 to 1,000,000 microseconds
Exposure Start Delay 58.92 μsec
Power 24 VDC provided by camera cable (3.4 Watts)
Software Version Impact Software Release 10.0.0 or greater

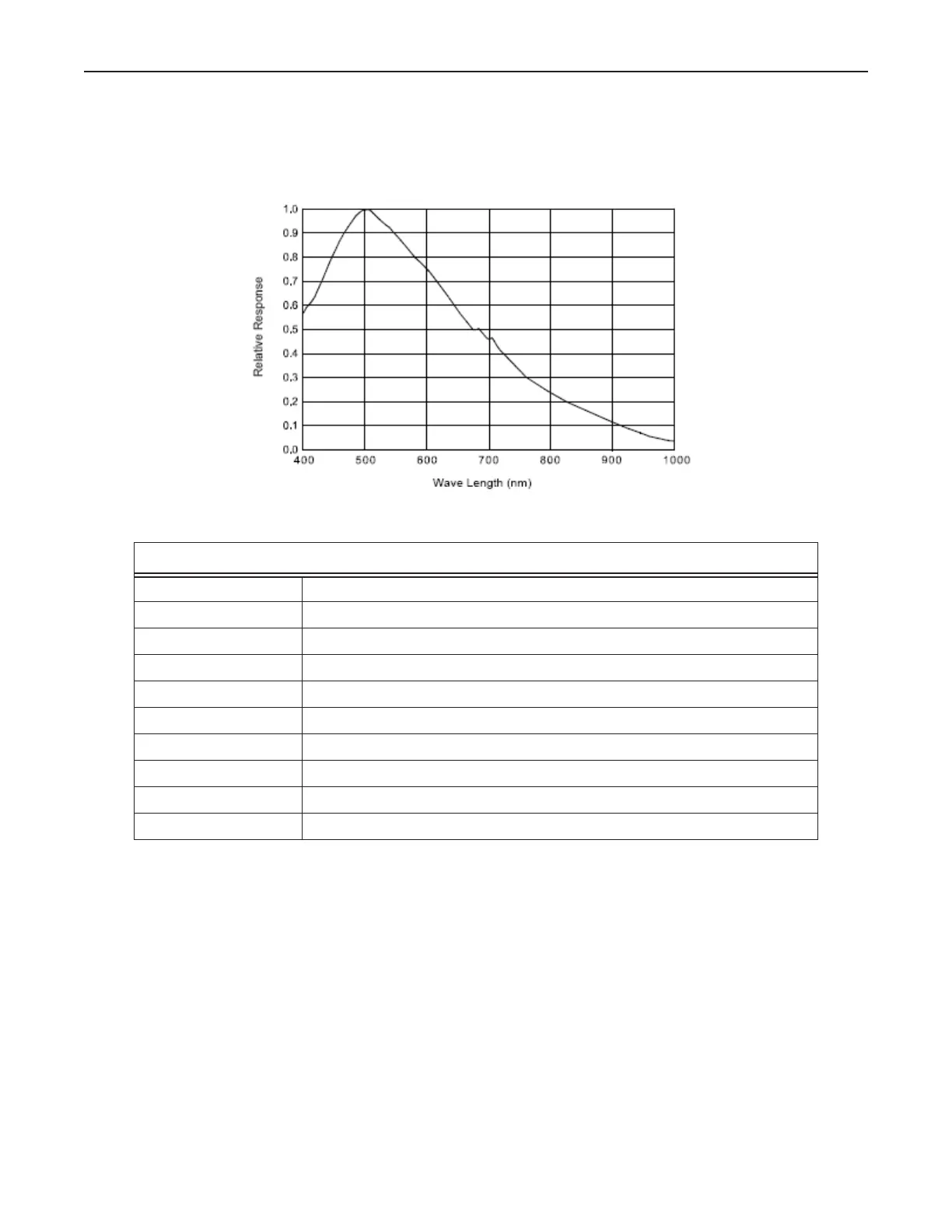

M290 Spectral Response (excludes lens and light source characteristics)

Datalogic MX-E Series Specifications
