MX-E Series Hardware Guide SVS-Vistek Cameras (IP67 rated)
73 Datalogic S.r.l.
SVS-Vistek Cameras (IP67 rated)

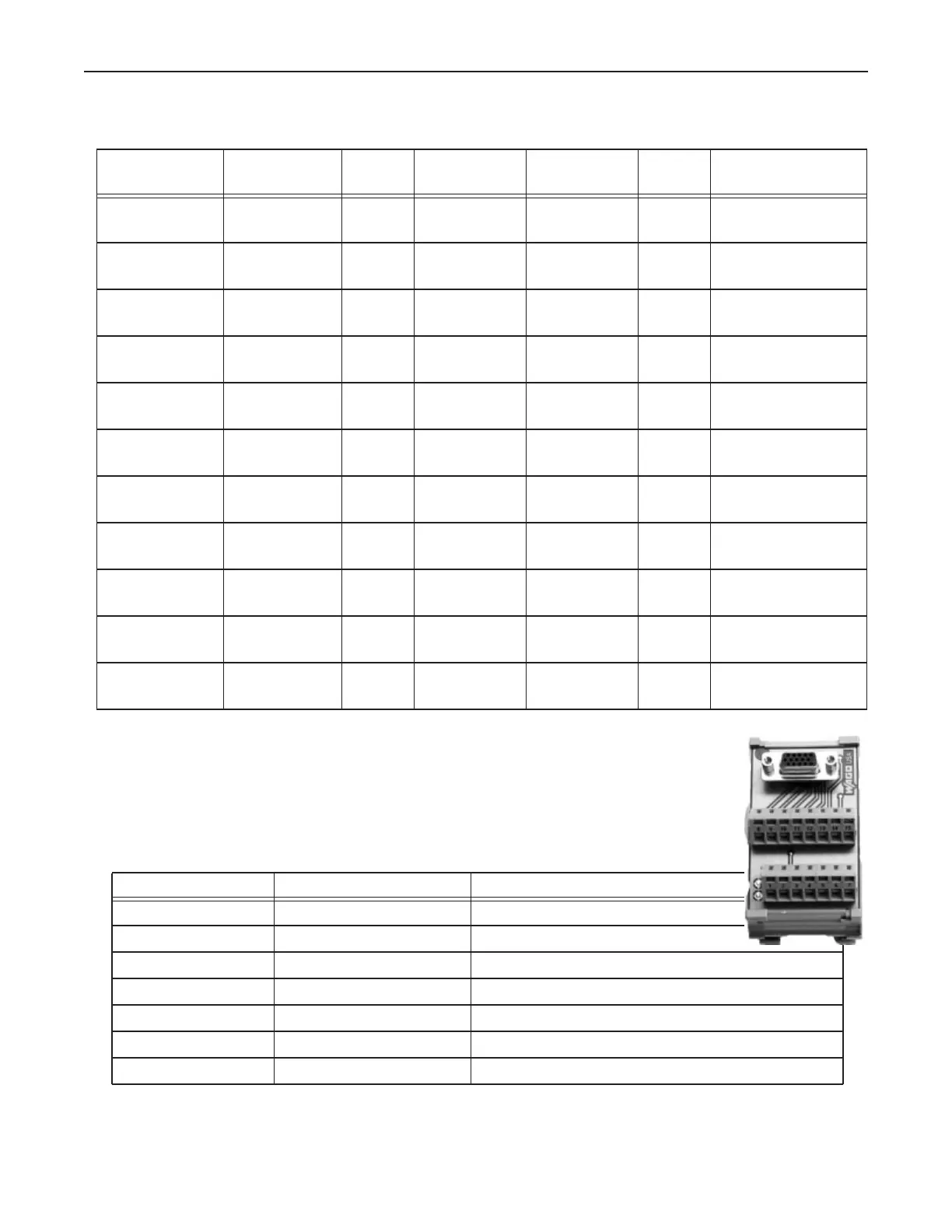

SVS-Vistek (IP67) Camera Connection
This camera uses two cables, one for Ethernet and one for power and trigger signals. For the Ether-
net connection, use cable 606-0677-xx.
To connect power and trigger signals, use a terminal block (248-0136) with the optional M12 style
12-pin to HD-15 camera cable (606-0687-xx).
Model
(GigE - IP67)
Resolution
(Megapixels)
Color Image
Horizontal
Image Vertical FPS
(approx)
Minimum Software
Version Required
eco204MVGE67
eco204CVGE67
<1 No
Yes
1024 768 47 10.4.0
10.5.0
eco267MVGE67
eco267CVGE67
1.3 No
Yes
1360 1024 25 10.4.0
10.5.0
eco274MVGE67
eco274CVGE67
1.9 No
Yes
1600 1200 25 10.4.0
10.5.0
eco285MVGE67
co285CVGE67
1.3 No
Yes
1360 1024 34 10.4.0
10.5.0
eco414MVGE67
eco414CVGE67
<1 No
Yes
640 480 125 10.4.0
10.5.0
eco415MVGE67
eco415CVGE67
<1 No
Yes
782 494 86 10.4.0
10.5.0
eco424MVGE67
eco424CVGE67
<1 No
Yes
640 480 124 10.4.0
10.5.0
eco445MVGE67
eco445CVGE67
1.2 No
Yes
1280 960 30 10.4.0
10.5.0
eco618MVGE67
eco618CVGE67
<1 No
Yes
640 480 160 10.4.0
10.5.0
eco655MVGE67
eco655CVGE67
5No
Yes
2456 2048 10 10.4.0
10.5.0
eco1050MTLGE
C67
1 No 1024 1024 56 11.2.0
Terminal Signal Name Notes
1 (Brown) Camera Power Min +10 VDC to Max +25 VDC
2 (Blue) Camera Ground
3 & 4 DO NOT USE Not Currently Supported
5 (Pink) Camera Trigger In 0 to +24 VDC
6 DO NOT USE Not Currently Supported
7(Black) Trigger Out to Strobe 0 to +24 VDC; 300 mA Max
8, 9, 10, 11, 12 DO NOT USE Not Currently Supported
