MX-E Series Hardware Guide M230 line
89 Datalogic S.r.l.
M230 line
This camera line captures a 1034 by 779 pixel size image with square pixels. It can partially scan the image horizontally
and vertically.
M230 Specifications
Part Number 601-0361; 601-0361-RA; 601-0388; 601-0388-RA
Pick-up Device Progressive Scan CCD - 1034 (H) x 779 (V) pixels
Sensor Size 1/3” (6 mm) diag - 4.76mm (H) × 3.57mm (V)
Capture Rate 31 full-resolution fps; higher with partial scan
Pixel Size 4.65 x 4.65 micrometers
Gain 360% to 1023%
Shutter Open 32 to 1,000,000 microseconds
Exposure Start Delay 43.87 μsec
Power 24 VDC provided by camera cable (3 Watts)
Software Version Impact Software Release 10.0.0 or greater

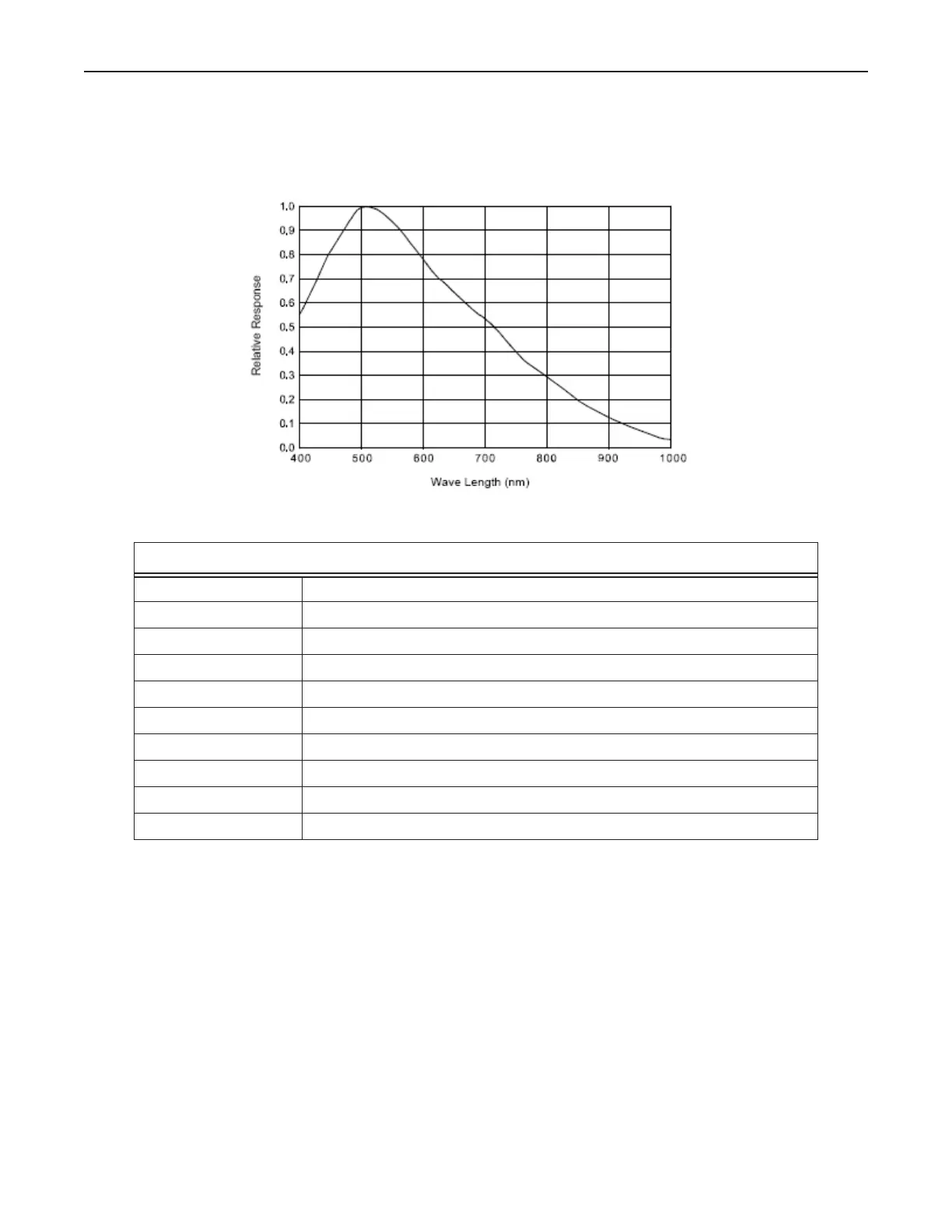

M230 Spectral Response (excludes lens and light source characteristics)
