M270 line MX-E Series Hardware Guide
Datalogic S.r.l. 90
M270 line
This camera line captures a 1392 by 1040 pixel size image with square pixels. It can partially scan the image horizontally
and vertically.
M270 Specifications
Part Number 601-0363; 601-0363-RA; 601-0390; 601-0390-RA
Pick-up Device Progressive Scan CCD - 1392 (H) x 1040 (V) pixels
Sensor Size 2/3”(11 mm) diag - 8.77mm (H) × 6.60mm (V)
Capture Rate 17 full-resolution fps; higher with partial scan
Pixel Size 6.45 x 6.45 micrometers
Gain 100% to 1023%
Shutter Open 28 to 1,000,000 microseconds
Exposure Start Delay 58.08 μsec
Power 24 VDC provided by camera cable (3.5 Watts)
Software Version Impact Software Release 10.0.0 or greater

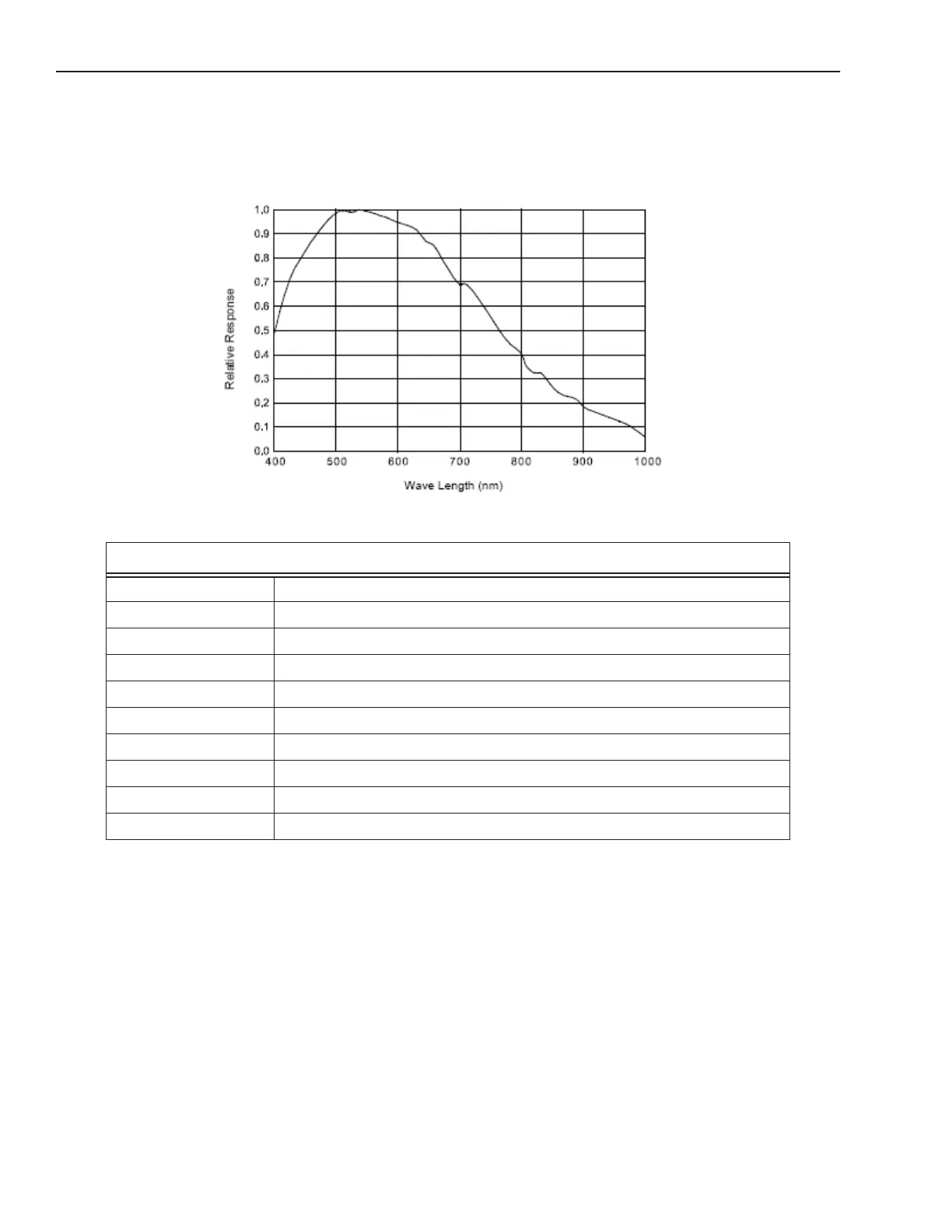

M270 Spectral Response (excludes lens and light source characteristics)
