Datalogic MX-E Series User Manual

Status Lights MX-E Series Hardware Guide
Datalogic S.r.l. 10

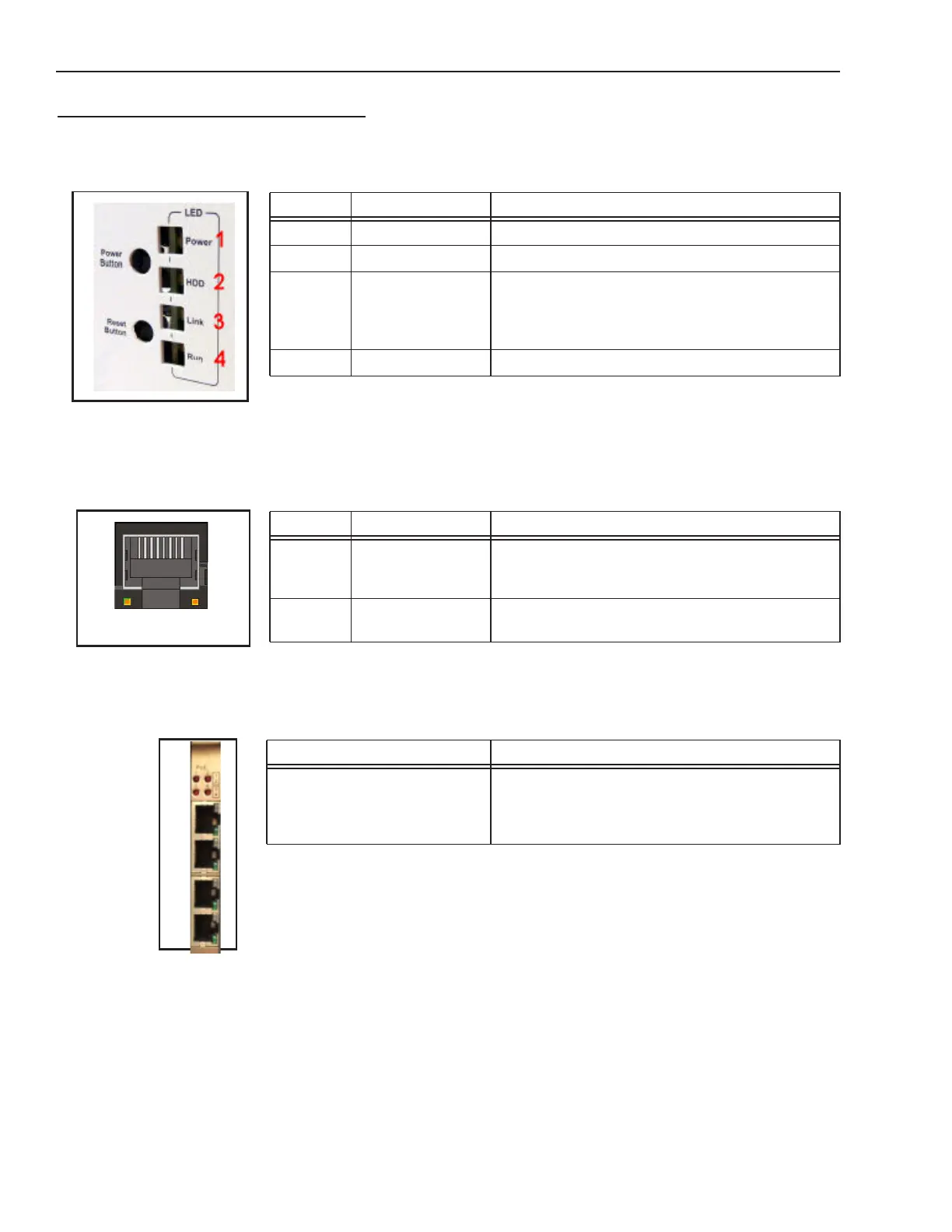

Status Lights
This illustration shows the status lights on the front of the Processor.
This illustration shows the status lights for the two Ethernet connections on the top of the Processor and the Cam1 through
Cam4 GigE camera connections.
This illustration shows the status lights for the Power Over Ethernet (PoE) indicators on the Ethernet card. Power is
enabled/disabled in VPM - Settings - General.
Symbol Name When lit indicates:
1 Power Power is On
2 HDD Solid-state hard drive or Cfast access is active
3 Link On: An active Smart Display Link connection is estab-
lished
Blinking: Connection is interrupted due to power loss
to display unit
4 Run An application is running
Symbol Name When lit indicates:
1 Speed Off: 10 Mbps
Green: 100 Mbps
Orange: 1000 Mbps (Gigabit)
2 Activity/Link On: Link is established
Blinking: Data is being transferred
Name What light indicates:
PoE (Number corresponds to
Cam Connector number)
On: Power is supplied to the camera over the Ether-
net cable
Off: Power must be supplied to the camera directly
through a power cable
12
