Datalogic MX-E Series User Manual

MX-E Series Hardware Guide M-Series
81 Datalogic S.r.l.
M-Series
M1xx, M1xxC
All M1xx cameras have the following specifications. Model numbers that end in “C” are color cameras.
M110, M110C
This camera captures a 659 by 494 pixel size image with square pixels. It can partially scan the image horizontally and
vertically.
M1xx Common Specifications
Lens Mount C mount
Cabling Camera cable provides trigger. Ethernet cable transmits video and provides POE.
Operating Environment Temperature: 0 to +50 C (+32 to 122 F)
Humidity: 0 to 90% (non-condensed)
Vibration 5g (11 to 200 Hz)
Power Provided by Power Over Ethernet
Weight 3.2 ounces (~90 g)
M110 Specifications
Part Number 601-0423; 601-0424
Pick-up Device Progressive Scan CCD - 659 (H) x 494 (V) pixels
Sensor Size 1/3” (6 mm) diagonal - 4.80mm (H) × 3.60mm (V)
Capture Rate 90 full-resolution fps; higher with partial scan
Pixel Size 7.4 x 7.4 micrometers
Gain 350% to 1023%

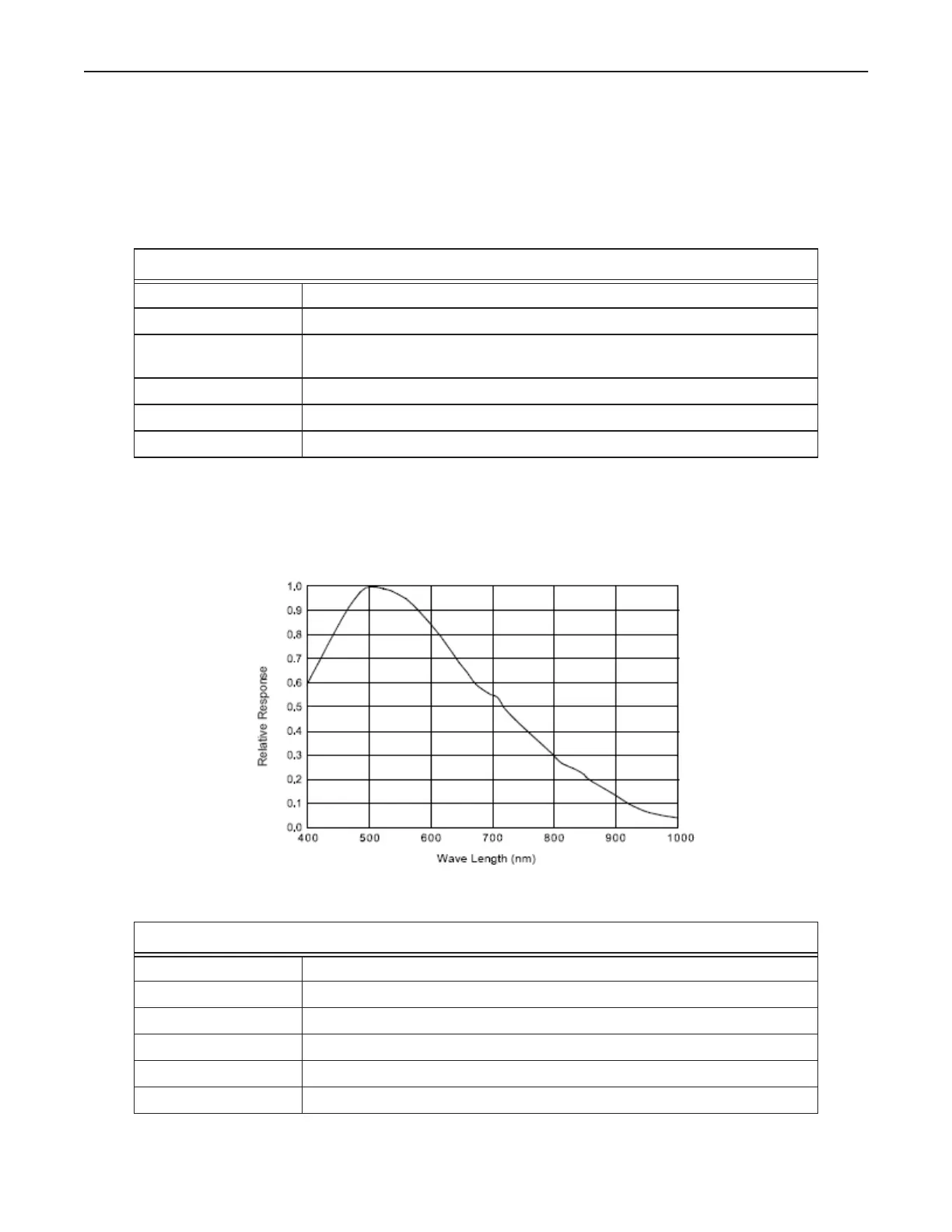

M110 Spectral Response (excludes lens and light source characteristics)
