MX-E Series Hardware Guide M2xx, M2xx-RA, M2xxC, M2xxC-RA
87 Datalogic S.r.l.
M2xx, M2xx-RA, M2xxC, M2xxC-RA

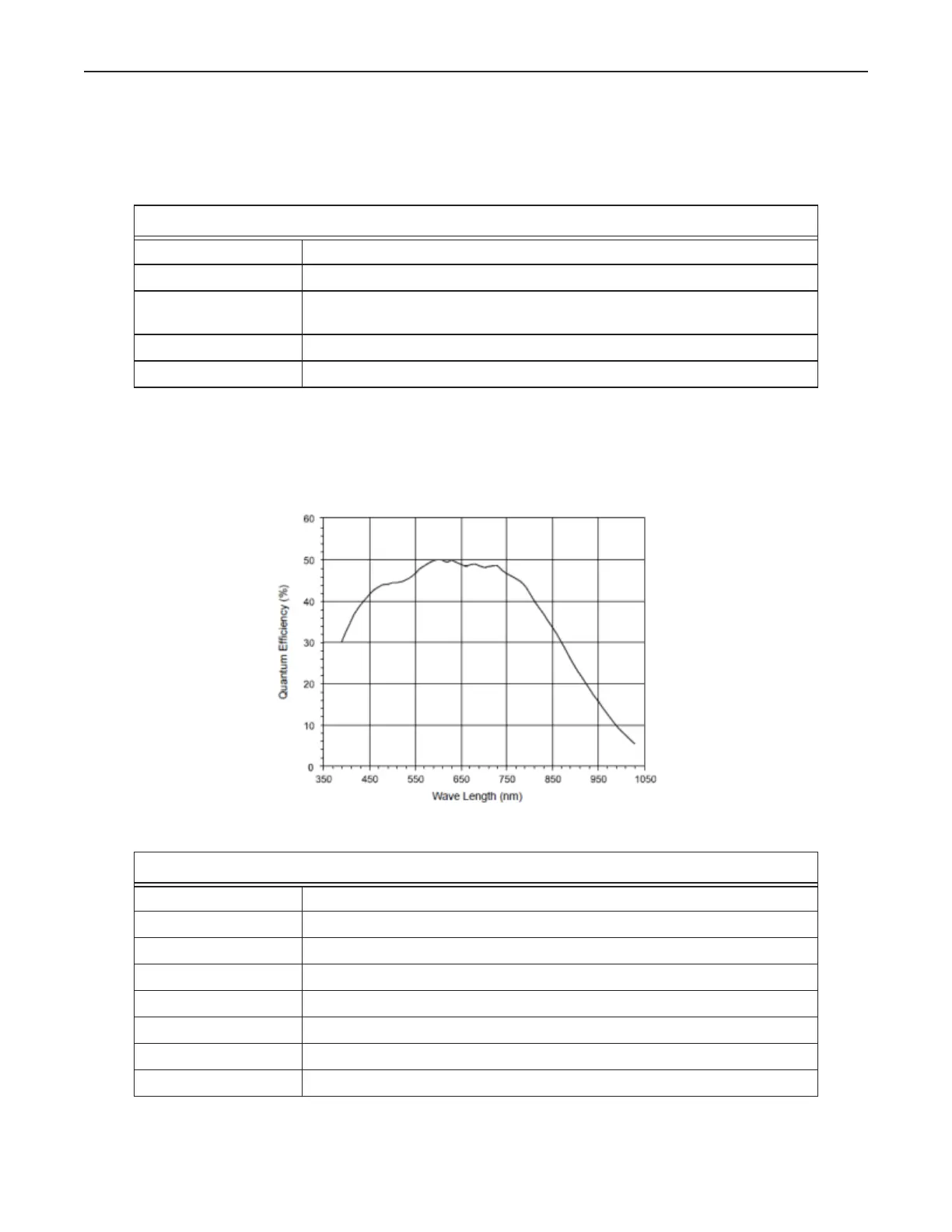

All M2xx, M2xx-RA, M2xxC, and M2xxC-RA cameras have the following specifications. Model numbers that include a
“C” are color cameras. Model numbers that end in “-RA” are right-angle mount cameras.
M205 line
This camera line captures a 752 by 480 pixel size image with square pixels. It can partially scan the image horizontally
and vertically.
M2xx Common Specifications
Lens Mount C mount
Cabling Camera cable provides power and trigger. Ethernet cable transmits video
Operating Environment Temperature: 0 to +50 C (+32 to 122 F)
Humidity: 0 to 90% (non-condensed)
Vibration 5g (11 to 200 Hz)
Weight 5.4 ounces (~150 g)
M205 Specifications
Part Number 601-0426; 601-0427
Pick-up Device Progressive Scan CMOS - 752 (H) x 480 (V) pixels
Sensor Size 1/3” diag (5.35 mm) diag - 4.51mm (H) x 2.88mm (V)
Capture Rate 64.9 full-resolution fps; higher with partial scan
Pixel Size 6.0 x 6.0 micrometers
Gain 100% to 1023%
Shutter Open 24 to 1,000,000 microseconds
Exposure Start Delay 28.19 μsec
M205 Spectral Response (excludes lens and light source characteristics)
