Datalogic MX-E Series User Manual

M210 line MX-E Series Hardware Guide
Datalogic S.r.l. 88
M210 line
This camera line captures a 782 by 582 pixel size image with square pixels. It can partially scan the image horizontally
and vertically.
Power 24 VDC provided by camera cable (3 Watts)
Software Version Impact Software Release 10.0.0 or greater
M210 Specifications
Part Number 601-0360; 601-0360-RA; 601-0387; 601-0387-RA
Pick-up Device Progressive Scan CCD - 782 (H) x 582 (V) pixels
Sensor Size 1/2” (8 mm) diag - 6.49mm (H) × 4.83mm (V)
Capture Rate 55 full-resolution fps; higher with partial scan
Pixel Size 8.3 x 8.3 micrometers
Gain 100% to 1023%
Shutter Open 26 to 1,000,000 microseconds
Exposure Start Delay 33.44 μsec
Power 24 VDC provided by camera cable (3 Watts)
Software Version Impact Software Release 10.0.0 or greater
M205 Specifications

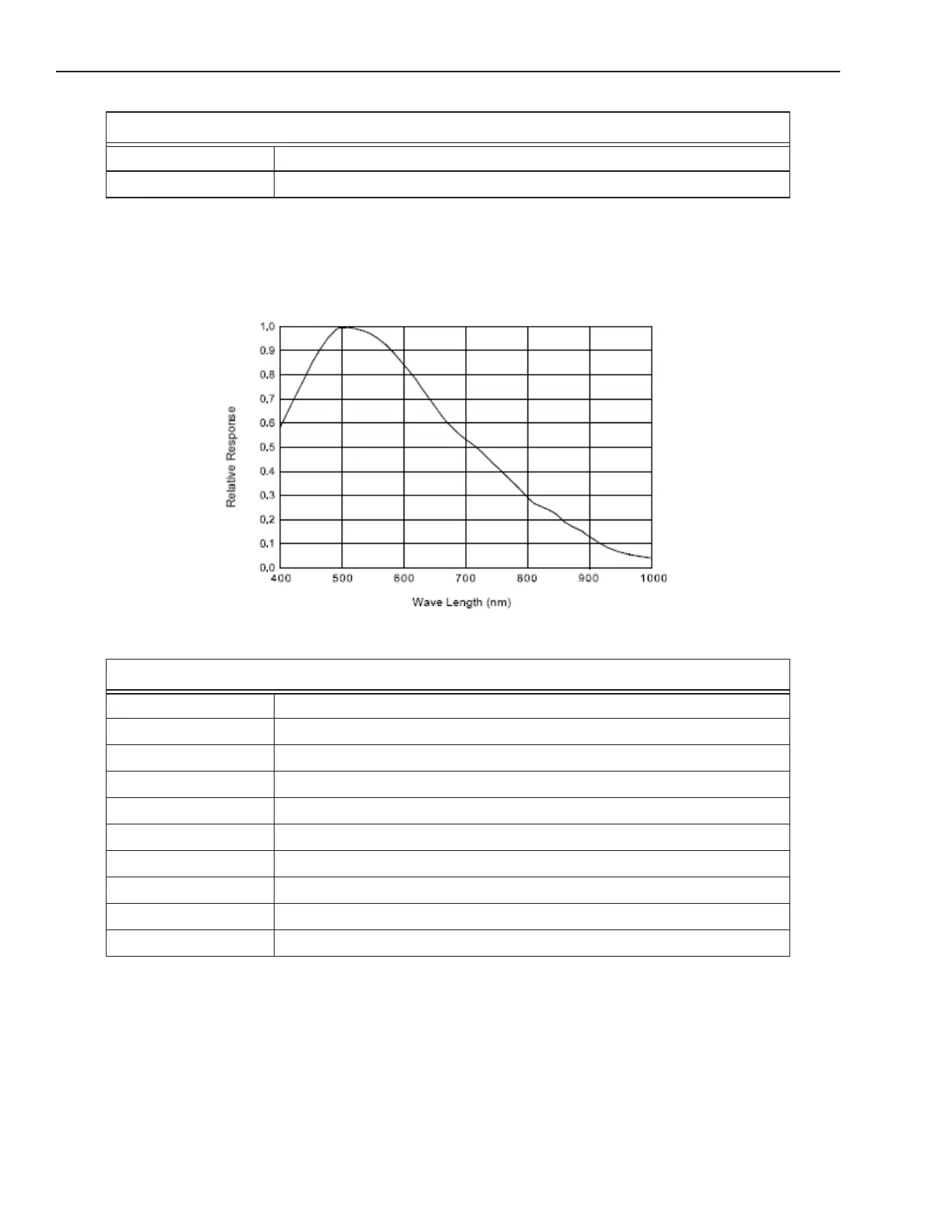

M210 Spectral Response (excludes lens and light source characteristics)

Datalogic MX-E Series Specifications
