MX-E Series Hardware Guide Power Supply Connection
17 Datalogic S.r.l.
Power Supply Connection
Warning: To avoid electrical shock, disconnect all power to the power supply before working on it.
Avertissement: Pour éviter le choc électrique, débranchez toute la puissance à l'alimentation d'énergie avant de tra-
vailler à lui.
This equipment is to be powered by a Listed power supply for the U.S. and Canada, or a power supply that meets the
requirements for use where either IEC 60950 or EN60950 is applicable.

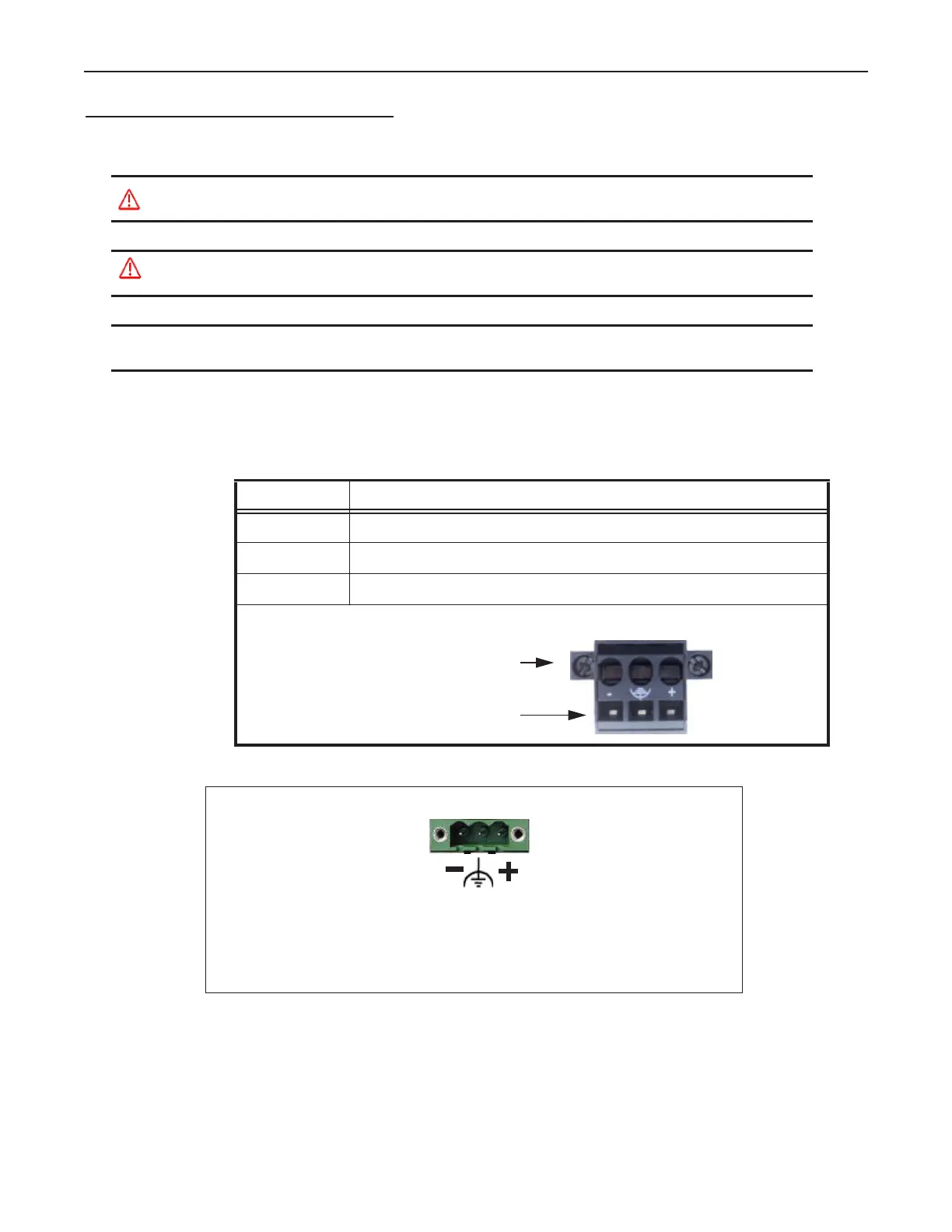

Wire the supplied power plug according to the chart shown below, then plug it into the power connector on the top of the
processor. The ground terminal (pin 2) on the +24V power input must be connected to the power supply’s grounded chas-
sis/enclosure. This connection is needed to insure electromagnetic compliance and proper operation. See “Grounding
Concepts” on page 18.
*Note: The processor requires approximately 5.5 A @ 24VDC. We recommend using a 24 VDC
power supply capable of providing 5.5 A current. This voltage is commonly used in many
manufacturing environments.
Slot Number Signal Name
1 24 VDC Supply Minus
2 Chassis Ground
3 24 VDC Supply Plus
Insert stripped wire into this hole
To open, insert a small screwdriver
into this slot and push down gently
on the screwdriver handle
SUPPLIED POWER PLUG
1 2 3
Connect V+ terminal to Power Supply Plus*
Connect V- terminal to Power Supply Minus
Connect GND terminal to Power Supply Circuit Ground
Processor Power Connector
on top of processor
POWER 24 VDC*
