Datalogic MX-E Series User Manual

Flat Surface Mounting MX-E Series Hardware Guide
Datalogic S.r.l. 16
• Do not exceed the flex radius of any connected cables.
UNITS: mm.

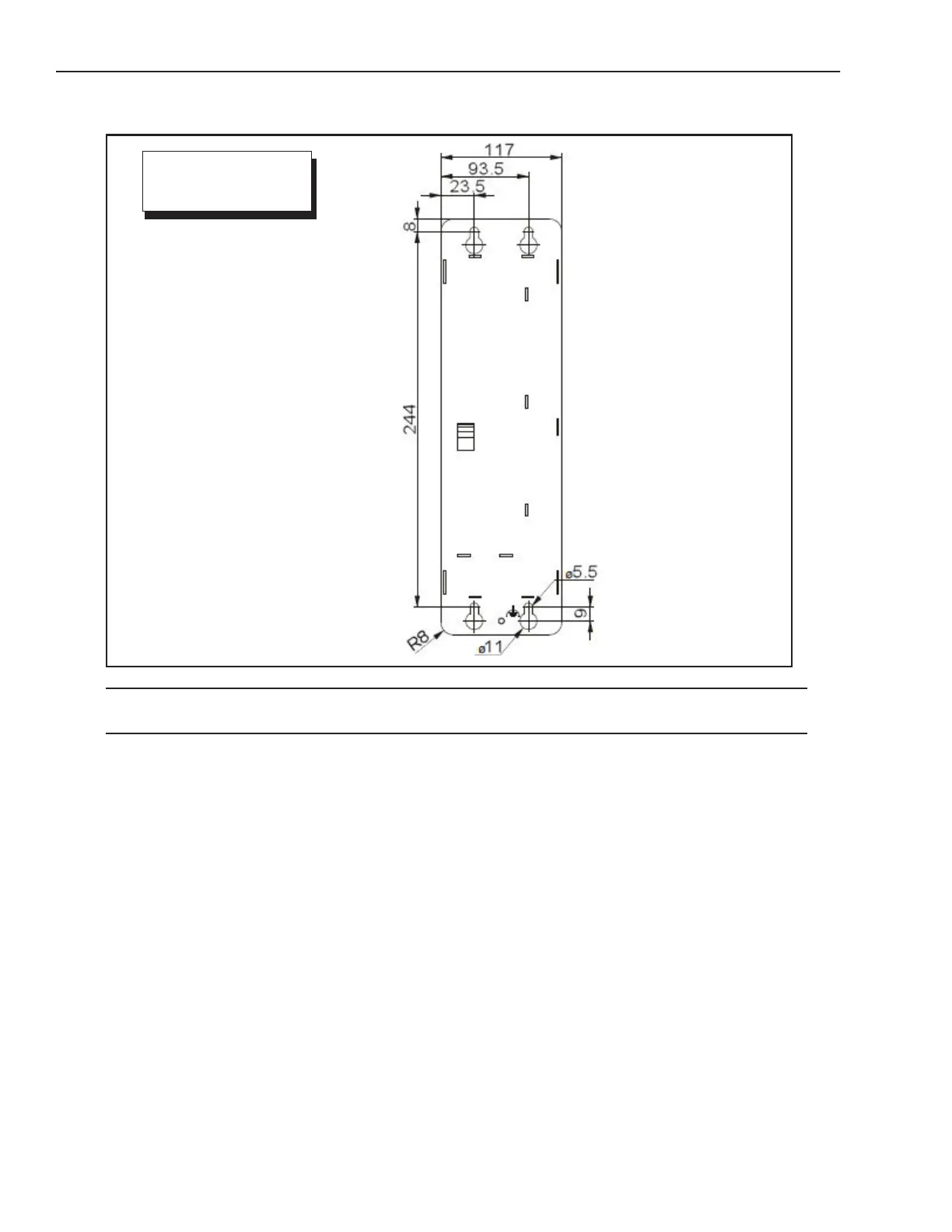

Drilling Template
Mounting Hole
Dimensions
NOTE: If the Processor uses a Compact Flash card, mount with the Processor top facing upward so the CF card
does not fall out due to vibration.
To mount the Processor:
1. Mark the surface mounting holes in the desired location using the drilling template dimensions.
2. Drill four surface mounting holes in the mounting surface. Use suitable anchors if necessary.
3. Insert four M5 mounting screws in the mounting holes and tighten them until approximately 0.2 inches (5 mm)
is left exposed. The mounting screws must be long enough to provide sufficient support.
4. Maneuver the Processor so mounting bracket slots align with the mounting screws.
5. Place the slots over the screws and slide the Processor down until the screws fit snugly into the mounting
bracket slots.
6. If necessary, tighten the mounting screws until snug.
