MX-E Series Hardware Guide M1xx and E1xx Camera Connection
33 Datalogic S.r.l.

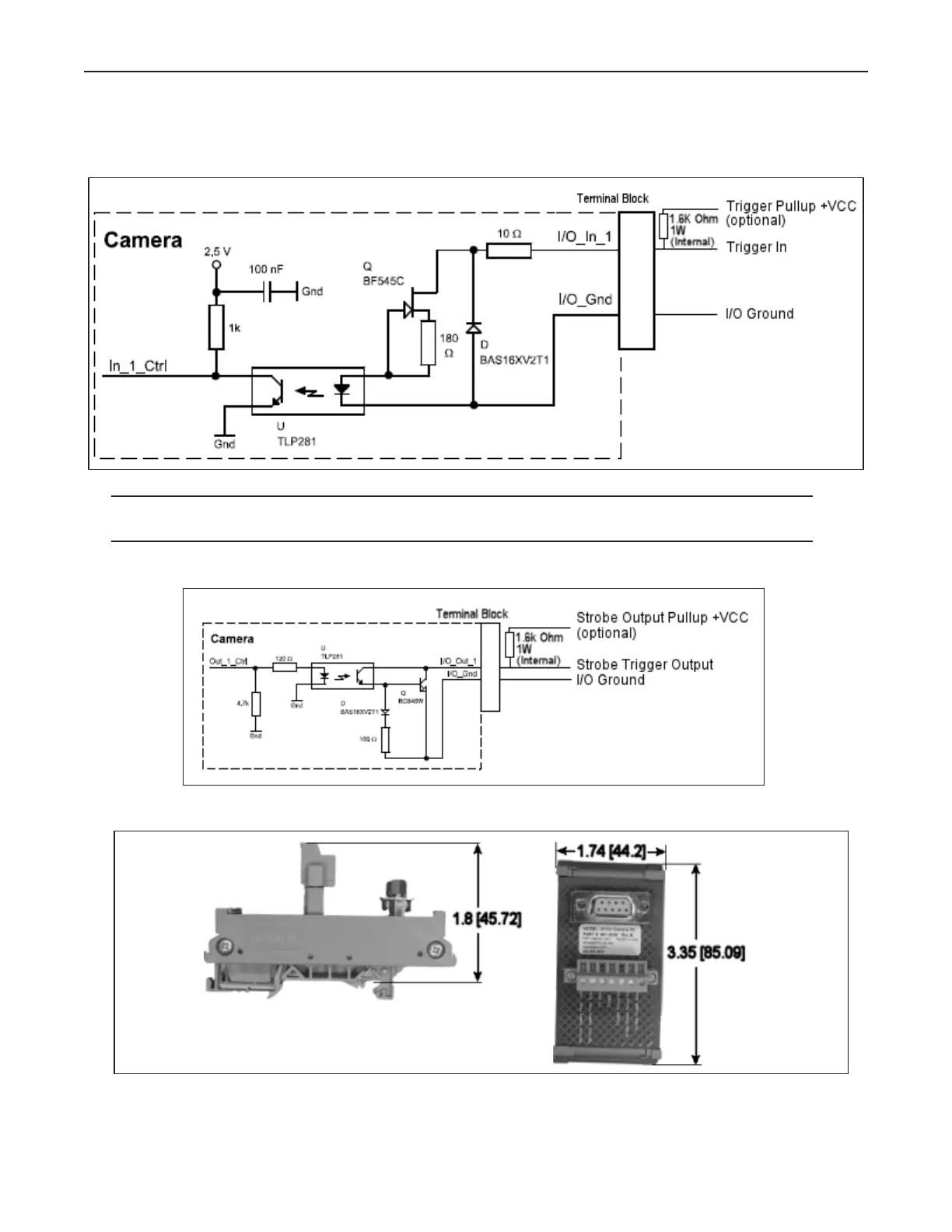

M1xx and E1xx Circuit Diagrams
M1xx Trigger In Circuit
WARNING: Never wire M1xx or E1xx Camera Strobe Outputs in parallel with M1xx, E1xx, M2xx, or M3xx Camera
Strobe Outputs. This will damage the cameras.
M1xx Strobe Trigger Output Circuit
661-0399 Terminal Block Dimensions
