MX-E Series Hardware Guide M6xx Camera Connection

45 Datalogic S.r.l.

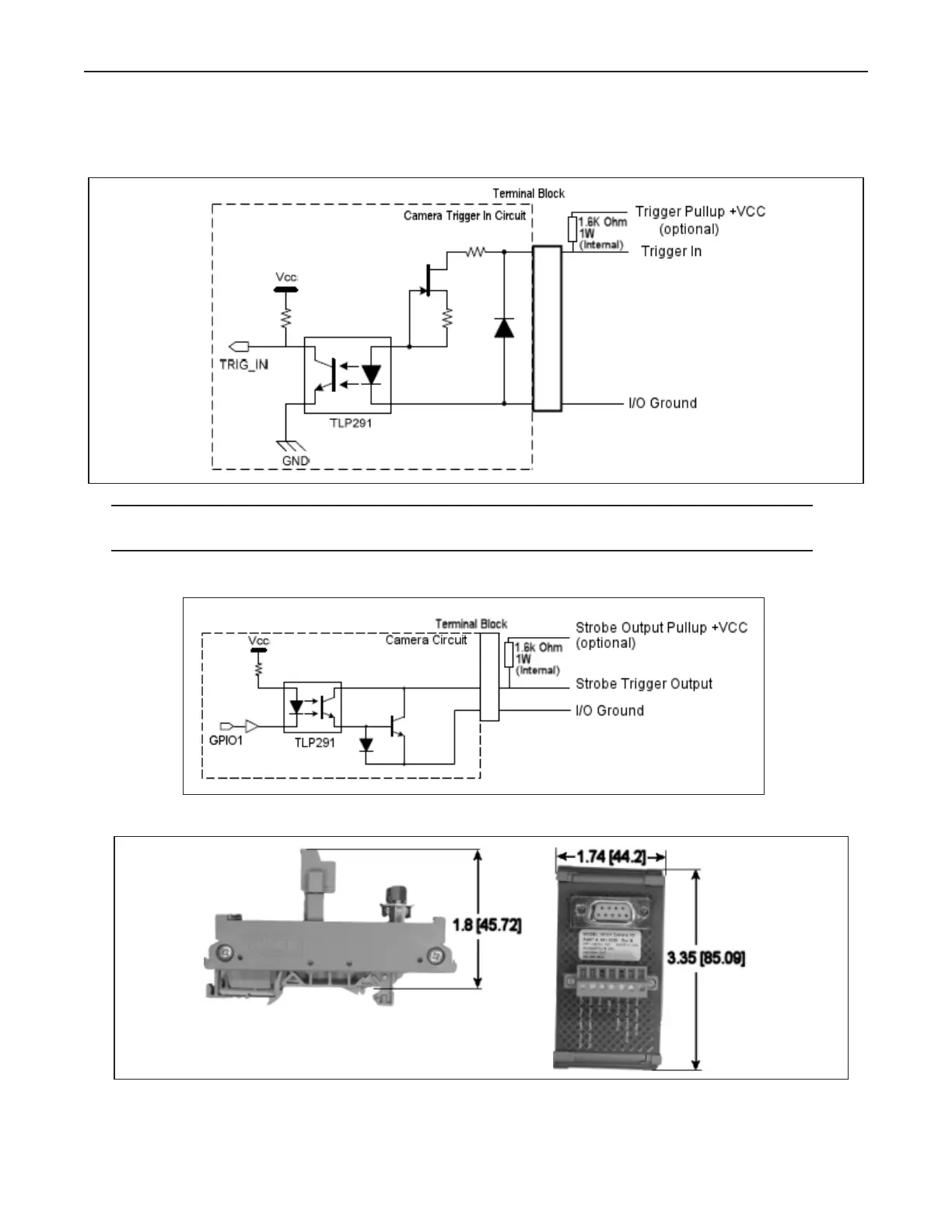

M6xx Circuit Diagrams

M6xx Trigger In Circuit

WARNING: Never wire M6xx Camera Strobe Outputs in parallel with M1xx, M2xx, or M3xx Camera Strobe Outputs.

This will damage the cameras.

M6xx Strobe Trigger Output Circuit

661-0399 Terminal Block Dimensions
