Datalogic MX-E Series User Manual

MX-E Series Hardware Guide JAI Cameras
53 Datalogic S.r.l.
JAI Unterminated Cable Connections
Color shading support
The JAI Model AT-200GEcamera has several special features that are not supported by the standard VPM camera setup.
One of these features is color shading. Color shading corrects for image shading, particularly darkening in the corners.
You can use the color shading feature of this camera after you complete the following offline calibration procedure.
To calibrate color shading
1. Using the optics and lighting for the application, place a white or gray target that fills the field-of-view.
2. Using VPM camera settings, set the white balance to factory defaults. You should re-calibrate the white balance
after the shading is corrected.
3. Adjust the exposure and other settings to create a grey level of 50 to 75% at the center of the image. Note the
exposure setting.
4. Close VPM and IMPACTDevice.exe.
5. Start the Pylon Viewer by double-clicking on the following file:
c:\Program Files\Basler\Pylon 2.x\apps\i386\PylonViewerApp.exe
Note that Pylon Viewer and IMPACTDevice.exe cannot run at the same time.

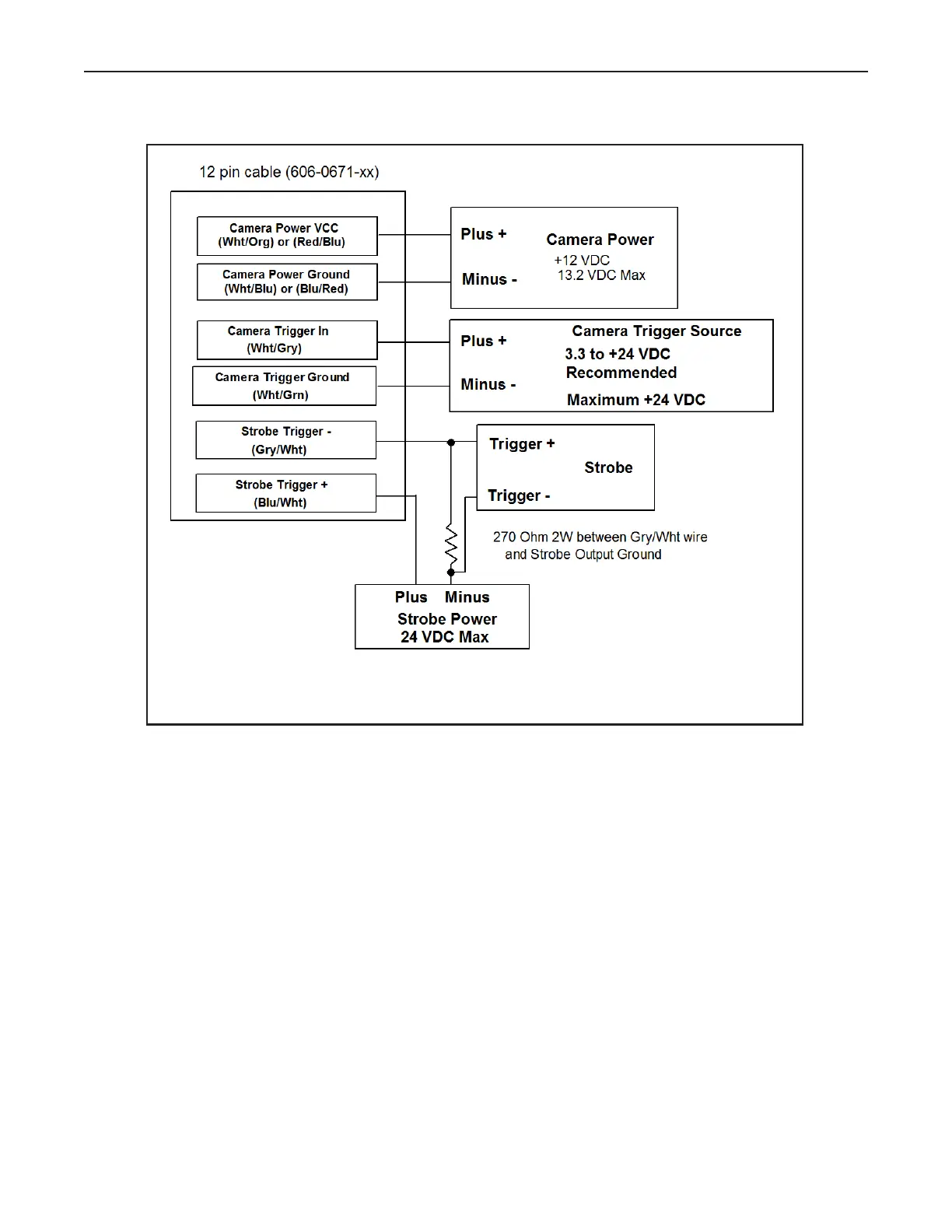

JAI Camera Unterminated Cable Connections
Sourcing Example
