Datamax E-Class Mark II Programmer's Manual

Appendix G – Bar Code Details
208 Class Series 2 Programmer’s Manual

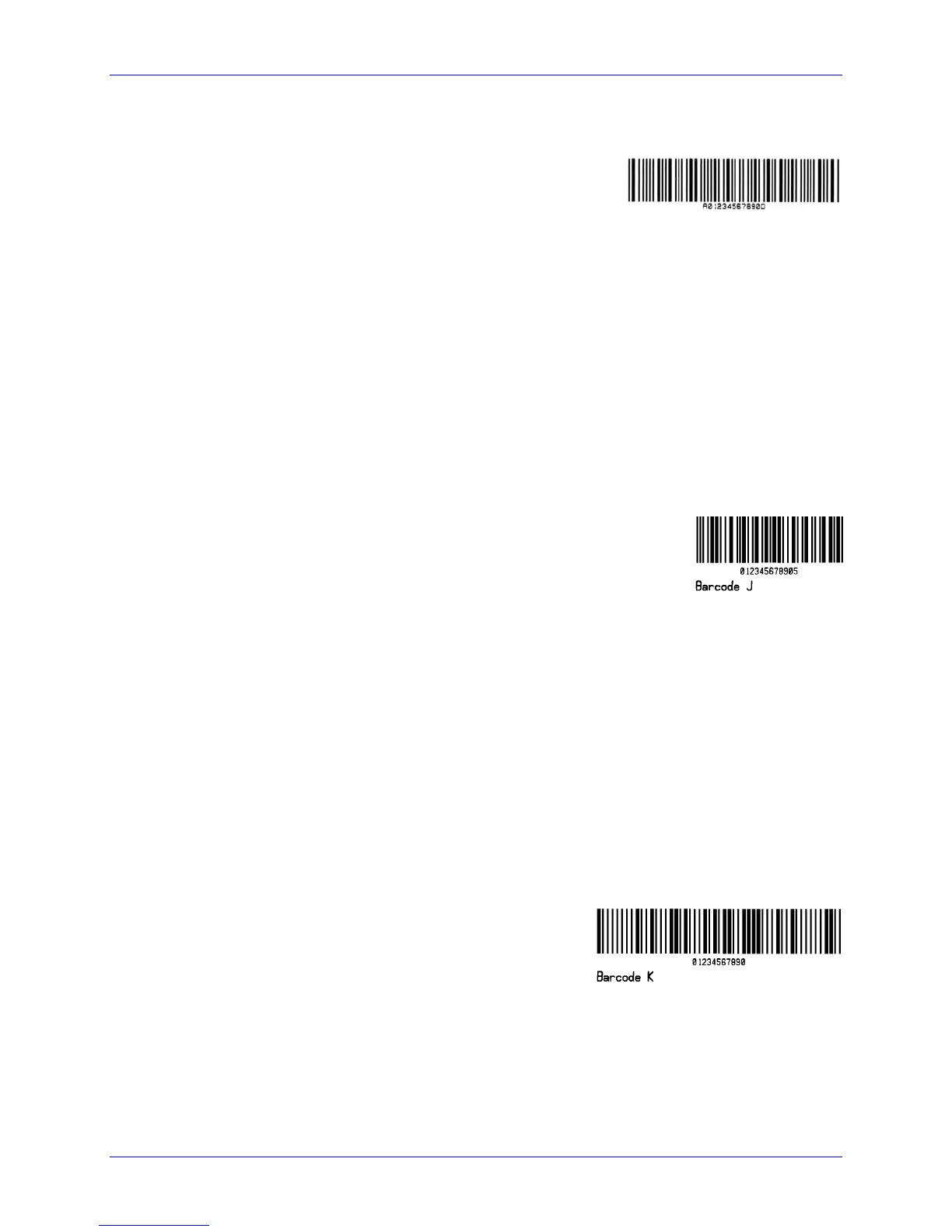

The following example prints a Codabar bar code with a wide to narrow bar ratio of 3:1:
<STX>L
D11<CR>
1I63040001501000A1234567890D<CR>
121100000000100Barcode I<CR>
E
Barcode I
J: Interleaved 2 of 5 (with a Modulo 10 Checksum)
Valid Characters: 0-9
Variable Length.
Valid bar widths: The expected ratio of wide to narrow bars can range from 2:1 to 3:1.
The following example prints an Interleaved 2 of 5 bar code with a modulo 10 checksum
added and with a wide to narrow bar ratio of 3:1:
<STX>L
D11<CR>
1J000000015010001234567890<CR>
121100000000100Barcode J<CR>
E
K: Plessey
Valid Characters: 0-9
Length: 1 to 14 digits
Valid bar widths: The expected ratio of wide to narrow bars can range from 2:1 to 3:1.
If a + character is the last data character, an additional MSI checksum will be added to
the bar code in place of the + character.
The following example prints a Plessey bar code with a wide to narrow bar ratio of 3:1:
<STX>L
D11<CR>
1K000000015010001234567890<CR>
121100000000100Barcode K<CR>
E

Datamax E-Class Mark II Specifications

General

Resolution	203 dpi (8 dots/mm) or 300 dpi (12 dots/mm)
Operating Temperature	40°F to 95°F (4°C to 35°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Print Method	Direct Thermal / Thermal Transfer
Max Print Speed	6 inches per second (ips)
Memory	8 MB DRAM
Interface	Serial, Parallel, USB
Media Type	Labels, Tags, Receipts
Media Width	0.75" (19 mm) to 4.65" (118 mm)
Media Thickness	0.0025 to 0.008 inches (0.0635 to 0.2032 mm)
Power Requirements	100-240 VAC, 50-60 Hz
