Dell PowerEdge C6220 II - Page 253

Installing System Components | 253
7 Remove the four screws that secure the power cables to the power
distribution board 1. See Figure 3-71.

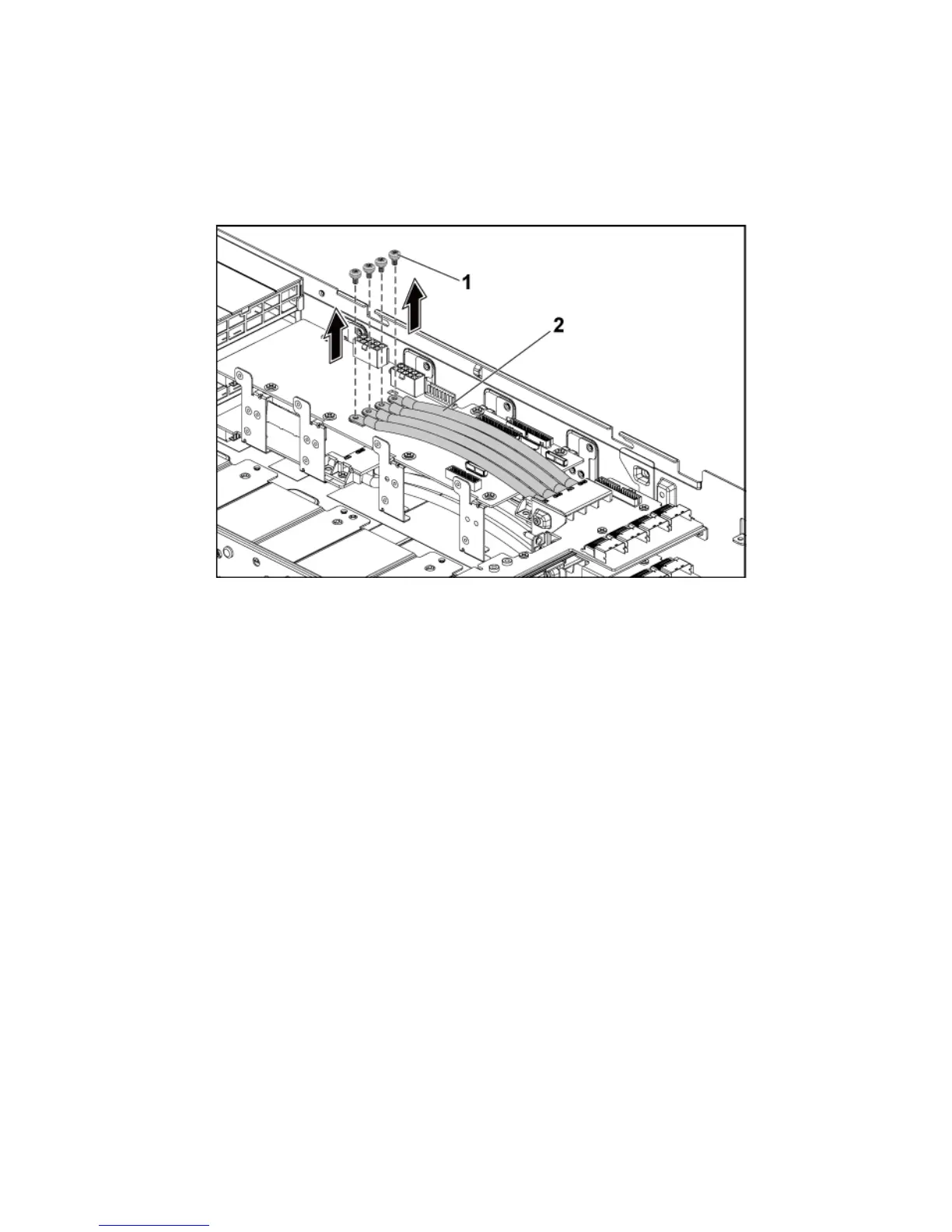

Figure 3-71. Removing and Installing the Power Cables
1
screw (4)
2
power cables (4)
