Dell PowerEdge C6220 II - Power Distribution Boards; Removing and Installing Power Distribution Boards

254 | Installing System Components
8 Remove the screws securing the power distribution board 1 to the
system. See Figure 3-72.
9 Lift the power distribution board 1 out of the system. See Figure 3-72.

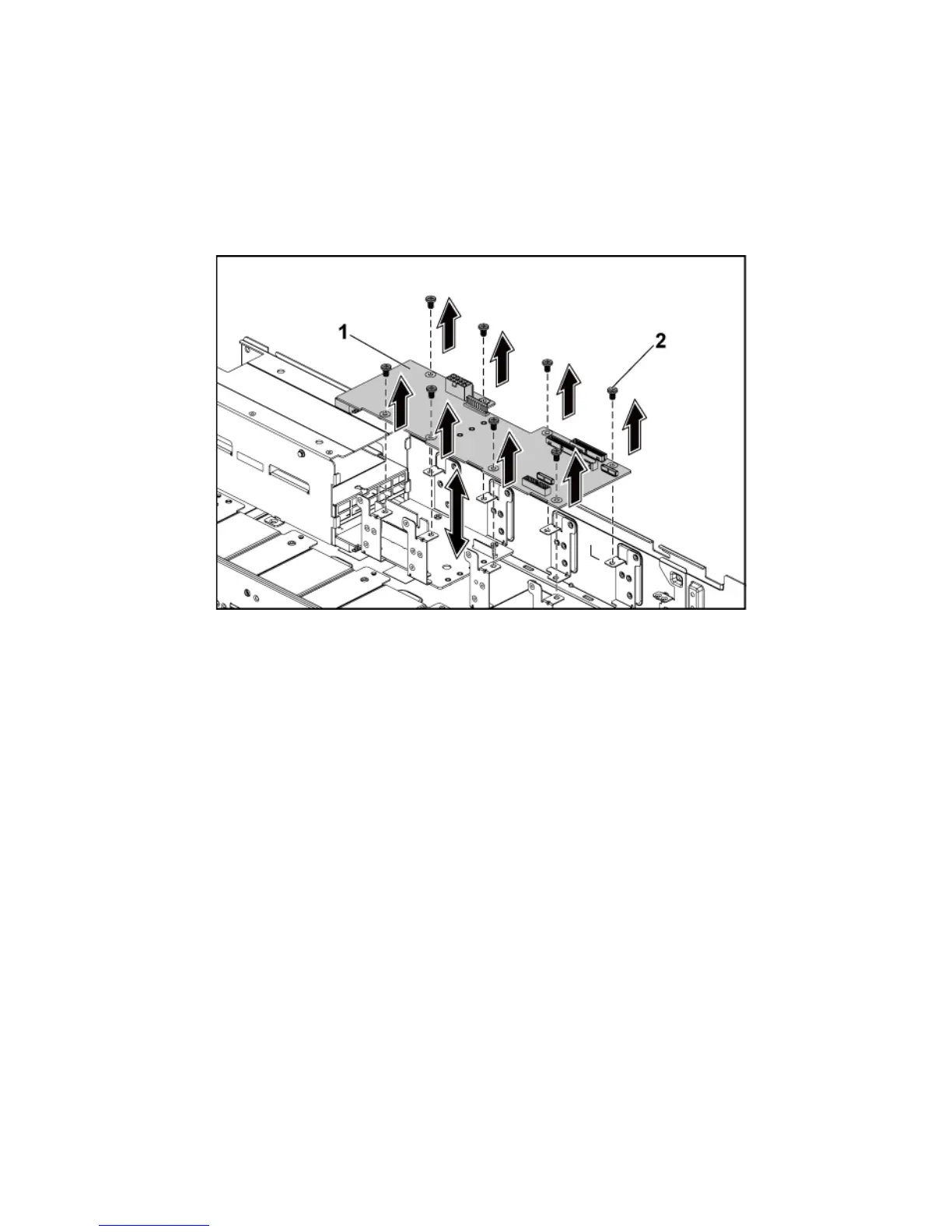

Figure 3-72. Removing and Installing the Power Distribution Board 1
1
power distribution board 1
2
screw (8)
