Installing System Components | 255
10 Lift the power distribution board connector from the system. See
Figure 3-73.

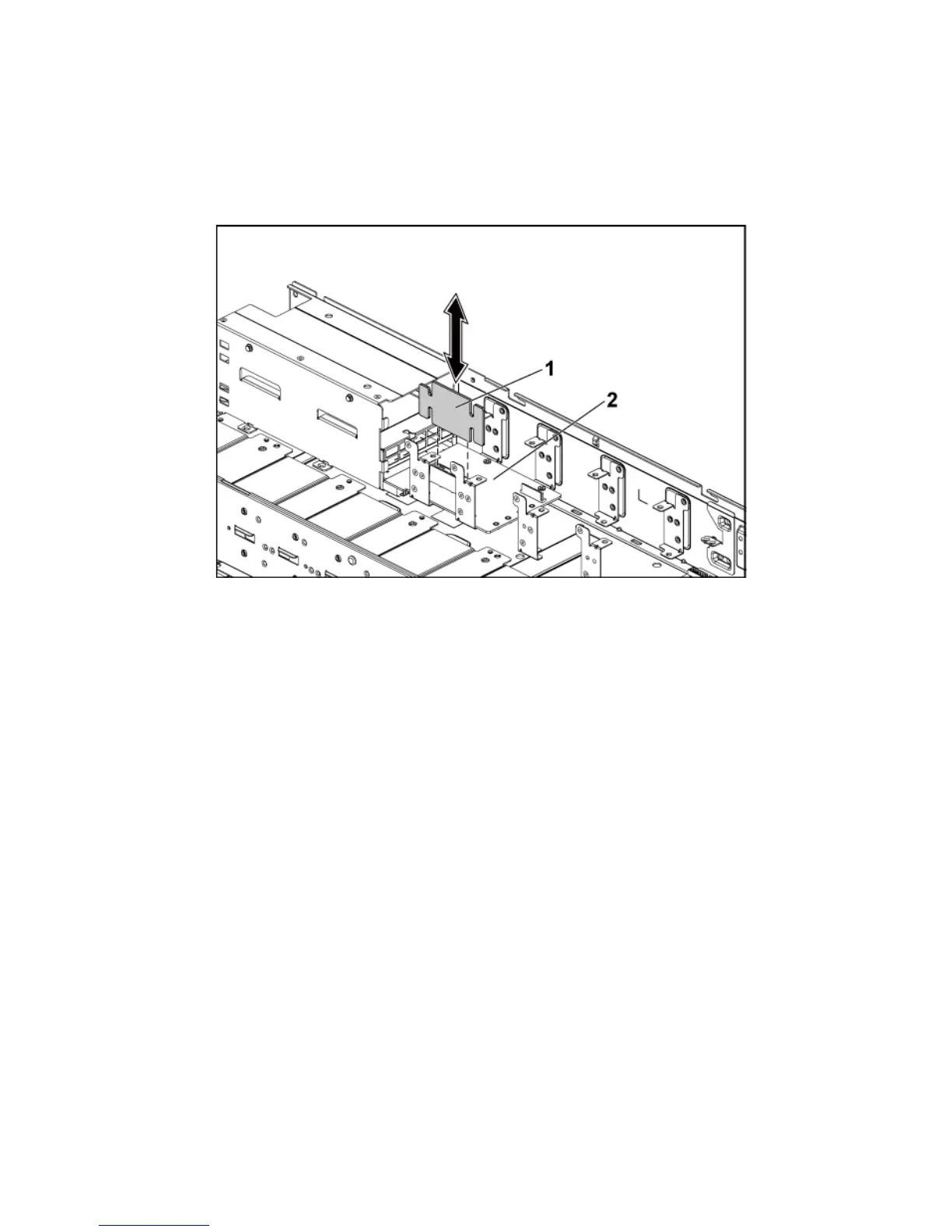

Figure 3-73. Removing and Installing the Power Distribution Board Connector
1
power distribution board connector
2
power distribution board 2
11 Disconnect all the cables from the power distribution board 2. See
Figure 3-70.
12 Remove the power cable cover from the power distribution board 2.
See Figure 3-70.
13 Remove the four power cables from the power distribution board 2. See
Figure 3-71.
