278 | Installing System Components

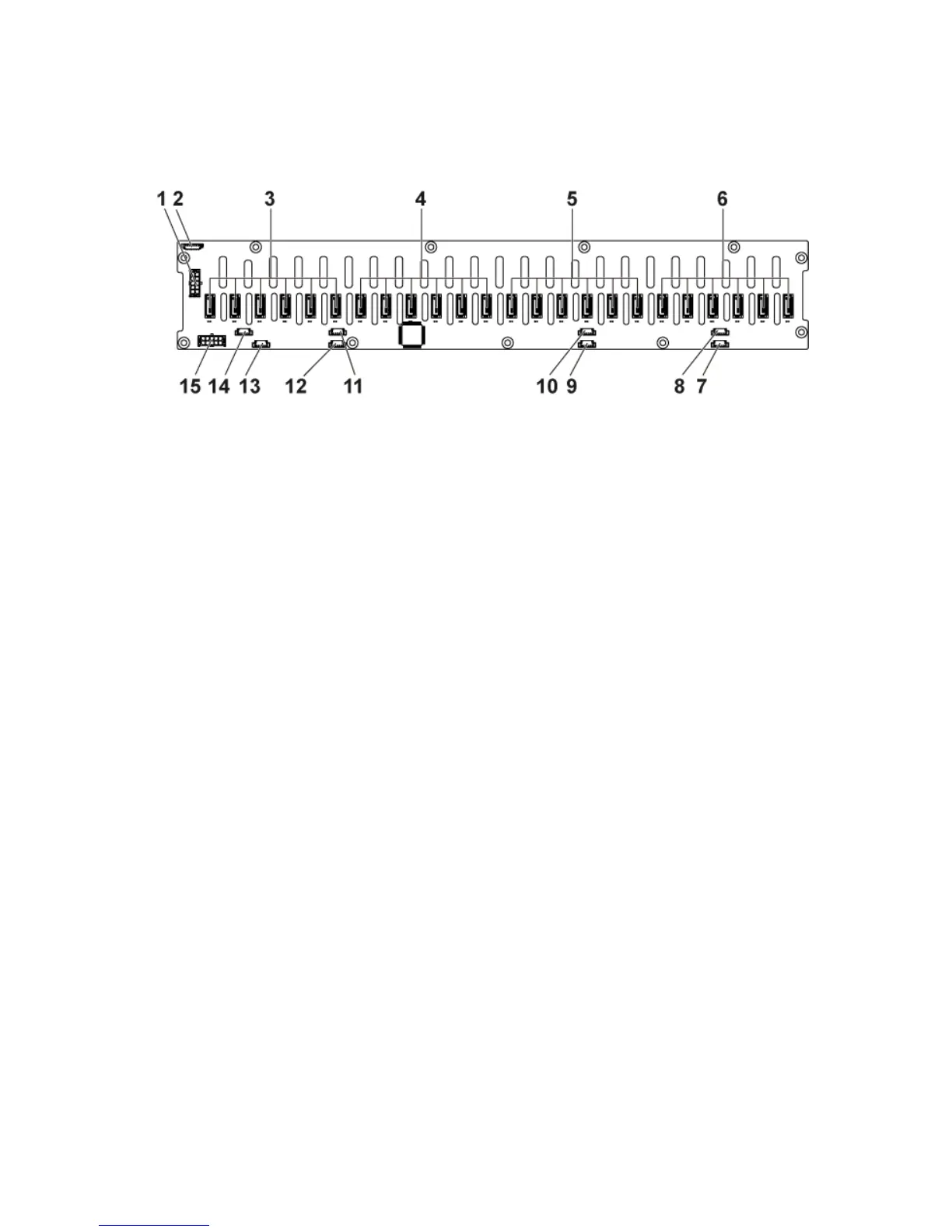

Figure 3-91. Back View of the 2.5” Direct Backplane
1
backplane power connector for
power supply 1
2
system fan board connector
3
SATA2 hard drive connectors 1 to 6
for system board 4 (from right to left)
4
SATA2 hard drive connectors 1 to 6
for system board 3 (from right to
left)
5
SATA2 hard drive connectors 1 to 6
for system board 2 (from right to left)
6
SATA2 hard drive connectors 1 to 6
for system board 1 (from right to
left)
7
SGPIO connector A for system
board 1
8
SGPIO connector B for system
board 1
9
SGPIO connector A for system
board 2
10
SGPIO connector B for system
board 2
11
SGPIO connector A for system
board 3
12
SGPIO connector B for system
board 3
13
SGPIO connector A for system
board 4
14
SGPIO Connector B for system
board 4
15
backplane power connector for
power supply 2
