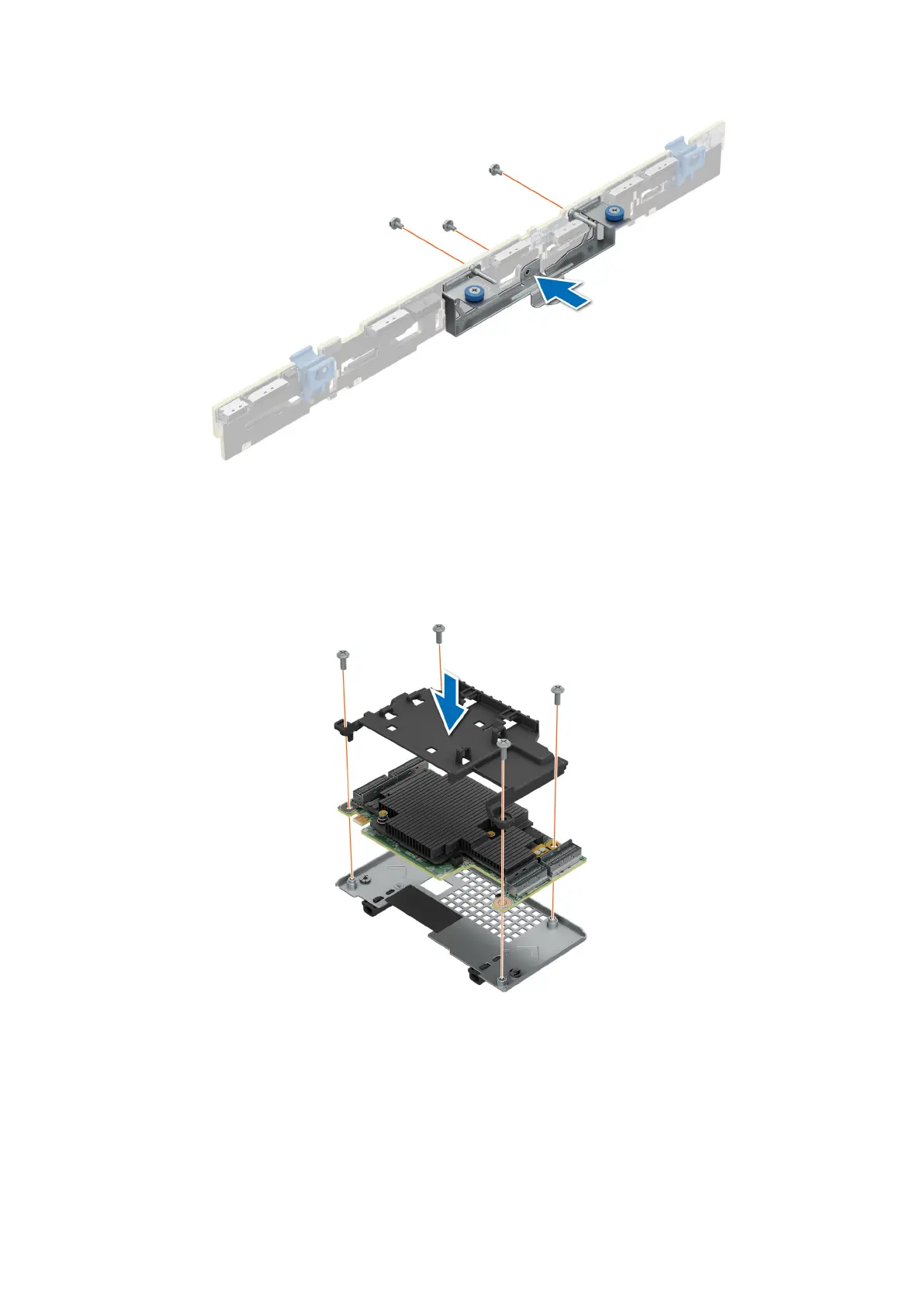

Figure 108. Installing the rear mounting front PERC module bracket
3. Align and install front PERC card to the guides on the front PERC tray.
4. Align and Install the front PERC shroud on the front PERC card.
5. Using a Phillips #2 screwdriver, tighten the four screws to secure the front PERC shroud to the front PERC card.
Figure 109. Installing the front PERC card
6. Insert the battery tab into the battery holder and ensure the battery that it is firmly seated.
Installing and removing system components
143
