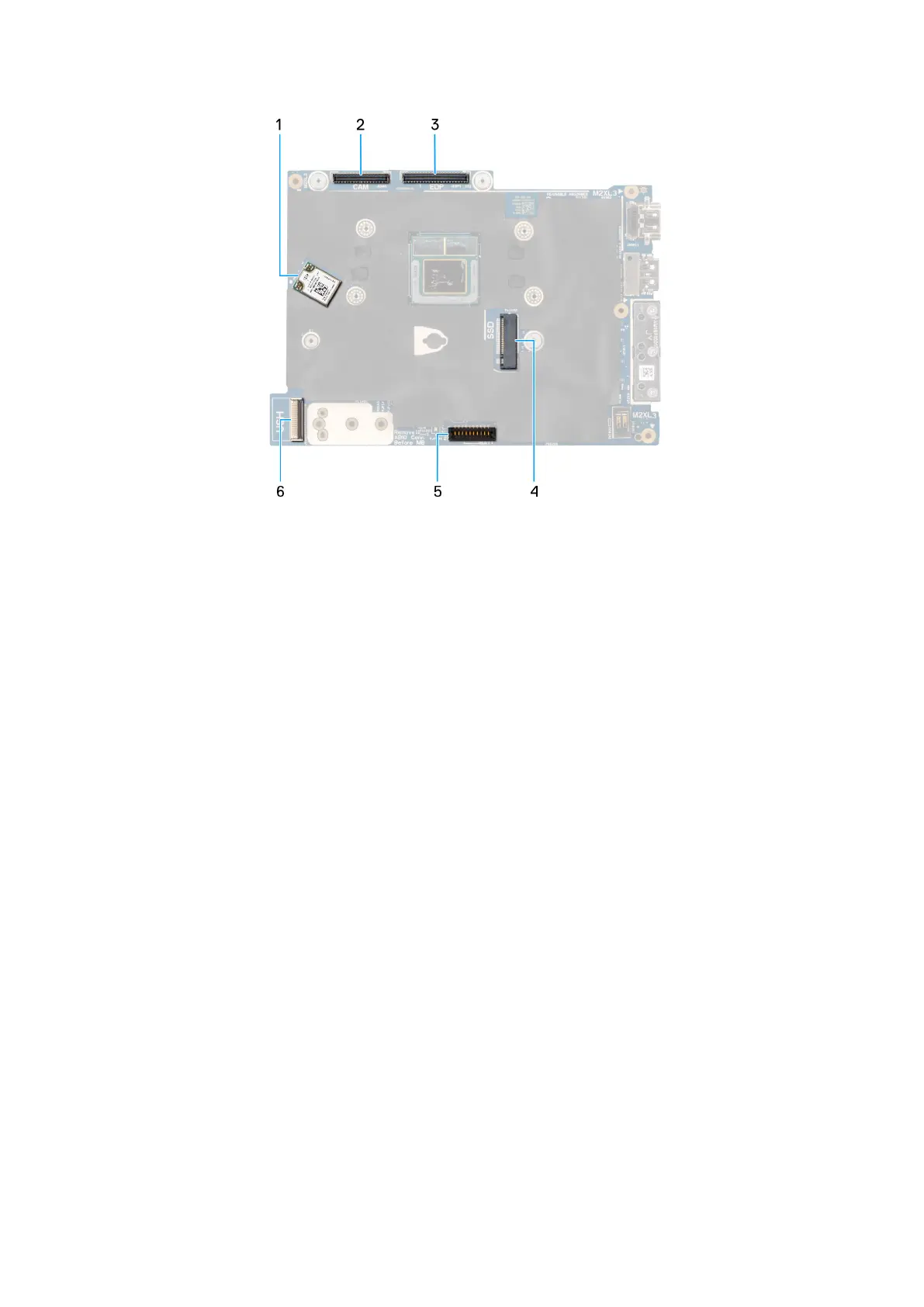

Figure 69. Sytem board callout
1. WLAN card
2. Camera cable connector
3. Display cable connector
4. Solid state drive slot
5. Battery cable connector
6. USH cable connector
Prerequisites
1. Follow the procedure in before working inside your computer.
2. Remove the sim-card tray, if applicable.
3. Remove the base cover.
4. Remove the M.2 2230 solid state drive or M.2 2280 solid state drive, as applicable.
5. Remove the WWAN card.
6. Remove the heat sink.
100
Removing and installing Field Replaceable Units (FRUs)
