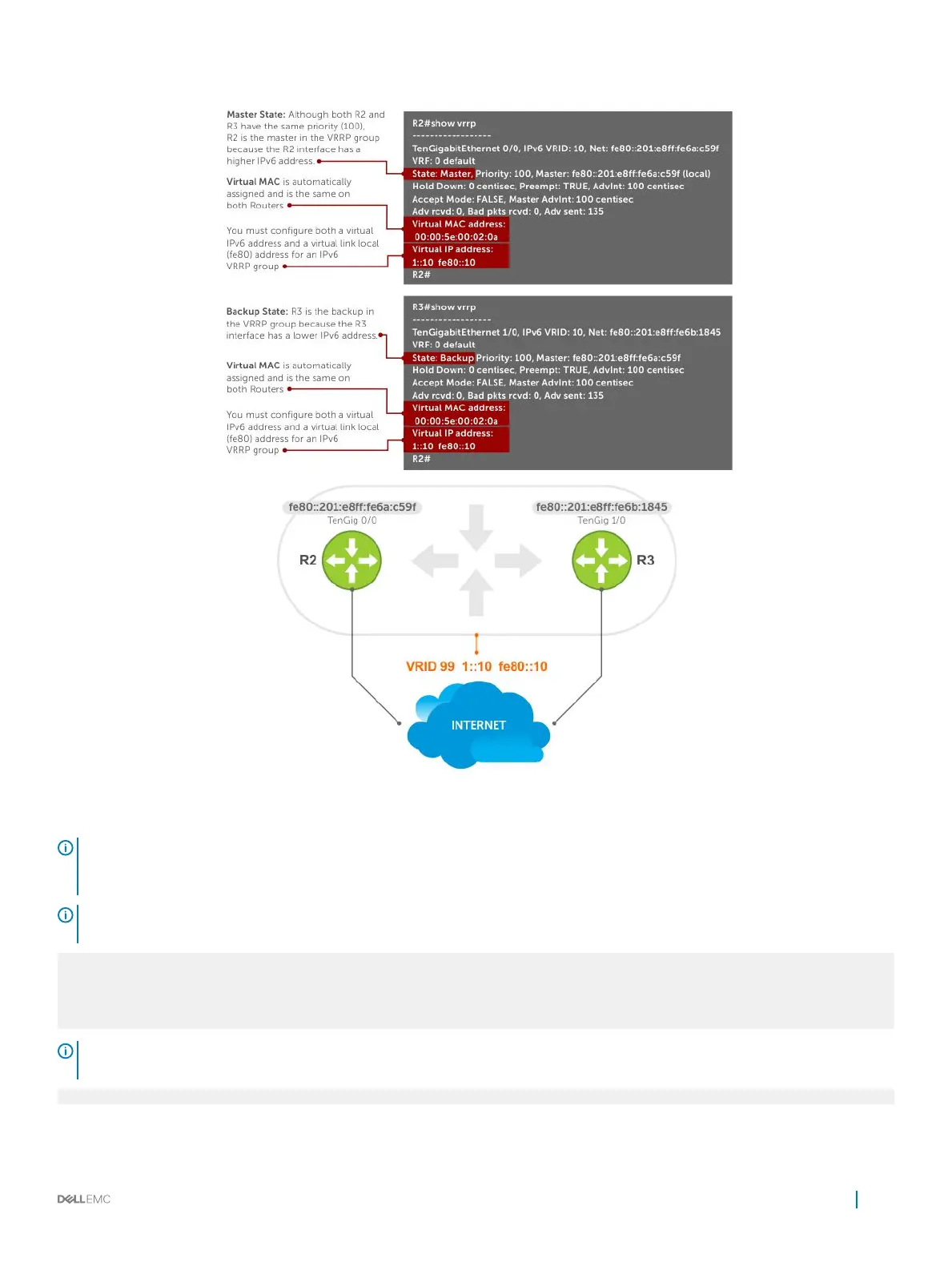

Figure 145. VRRP for IPv6 Topology
NOTE
: This example does not contain comprehensive directions and is intended to provide guidance for only a typical VRRP
conguration. You can copy and paste from the example to your CLI. Be sure you make the necessary changes to support your
own IP addresses, interfaces, names, and so on.
NOTE: In a VRRP or VRRPv3 group, if two routers come up with the same priority and another router already has MASTER
status, the router with master status continues to be master even if one of two routers has a higher IP or IPv6 address.
Router 2
R2(conf)#interface gigabitethernet 1/1
R2(conf-if-gi-1/1)#no ip address
R2(conf-if-gi-1/1)#ipv6 address 1::1/64
R2(conf-if-gi-1/1)#vrrp-group 10
NOTE
: You must congure a virtual link local (fe80) address for each VRRPv3 group created for an interface. The VRRPv3 group
becomes active as soon as you congure the link local address. Afterwards, you can congure the group’s virtual IPv6 address.
R2(conf-if-gi-1/1-vrid-10)#virtual-address fe80::10
Virtual Router Redundancy Protocol (VRRP)
995
