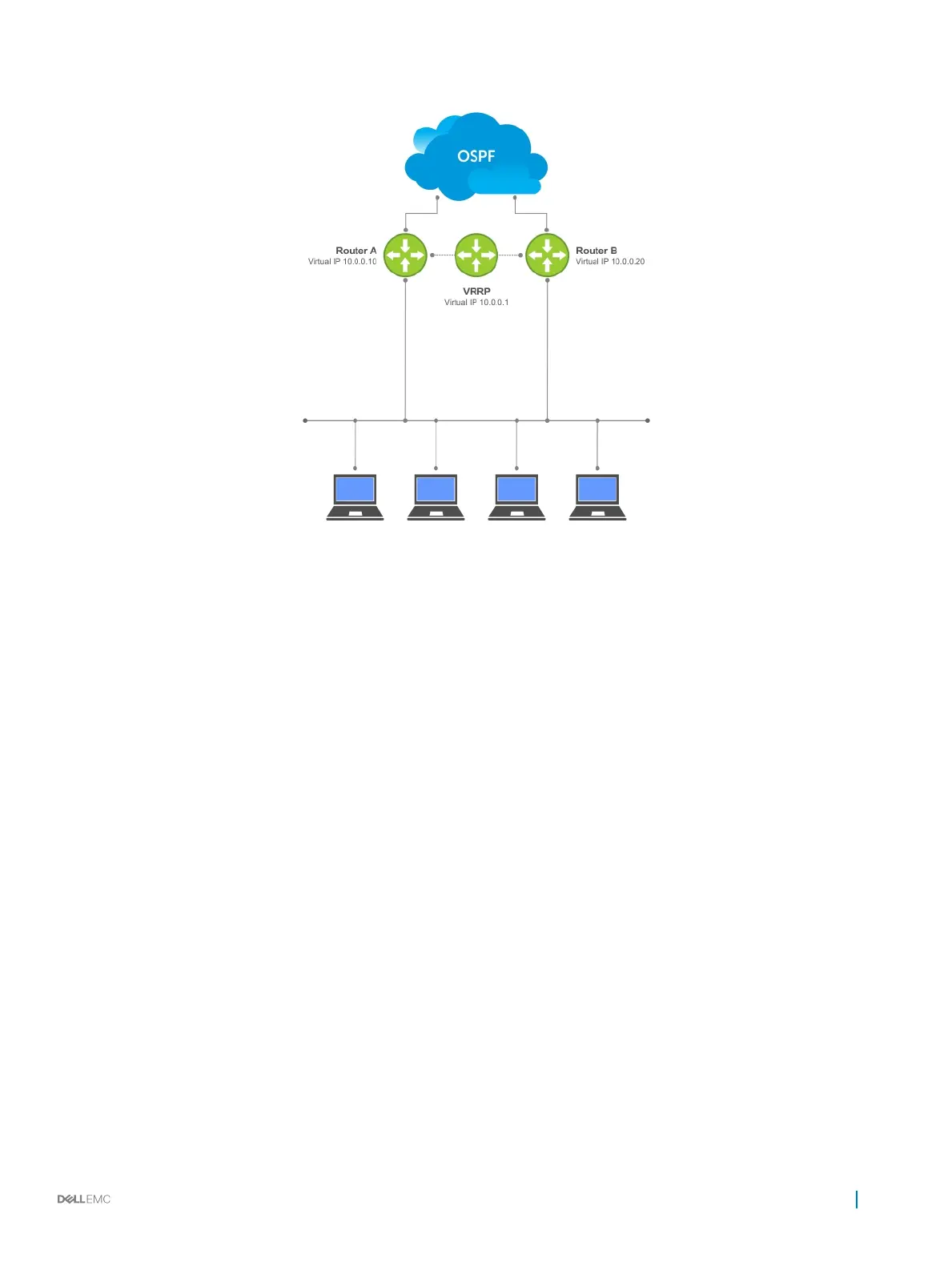

Figure 85. Object Tracking Example
When you congure a tracked object, such as an IPv4/IPv6 a route or interface, you specify an object number to identify the object.
Optionally, you can also specify:
• UP and DOWN thresholds used to report changes in a route metric.
• A time delay before changes in a tracked object’s state are reported to a client.
Track Layer 2 Interfaces
You can create an object to track the line-protocol state of a Layer 2 interface. In this type of object tracking, the link-level operational
status (UP or DOWN) of the interface is monitored.
When the link-level status goes down, the tracked resource status is considered to be DOWN; if the link-level status goes up, the tracked
resource status is considered to be UP. For logical interfaces, such as port-channels or virtual local area networks (VLANs), the link-
protocol status is considered to be UP if any physical interface under the logical interface is UP.
Track Layer 3 Interfaces
You can create an object that tracks the Layer 3 state (IPv4 or IPv6 routing status) of an interface.
• The Layer 3 status of an interface is UP only if the Layer 2 status of the interface is UP and the interface has a valid IP address.
• The Layer 3 status of an interface goes DOWN when its Layer 2 status goes down or the IP address is removed from the routing table.
Object Tracking
