Conguring Interfaces for Layer 2 Mode

All interfaces on all switches that participate in spanning tree must be in Layer 2 mode and enabled.

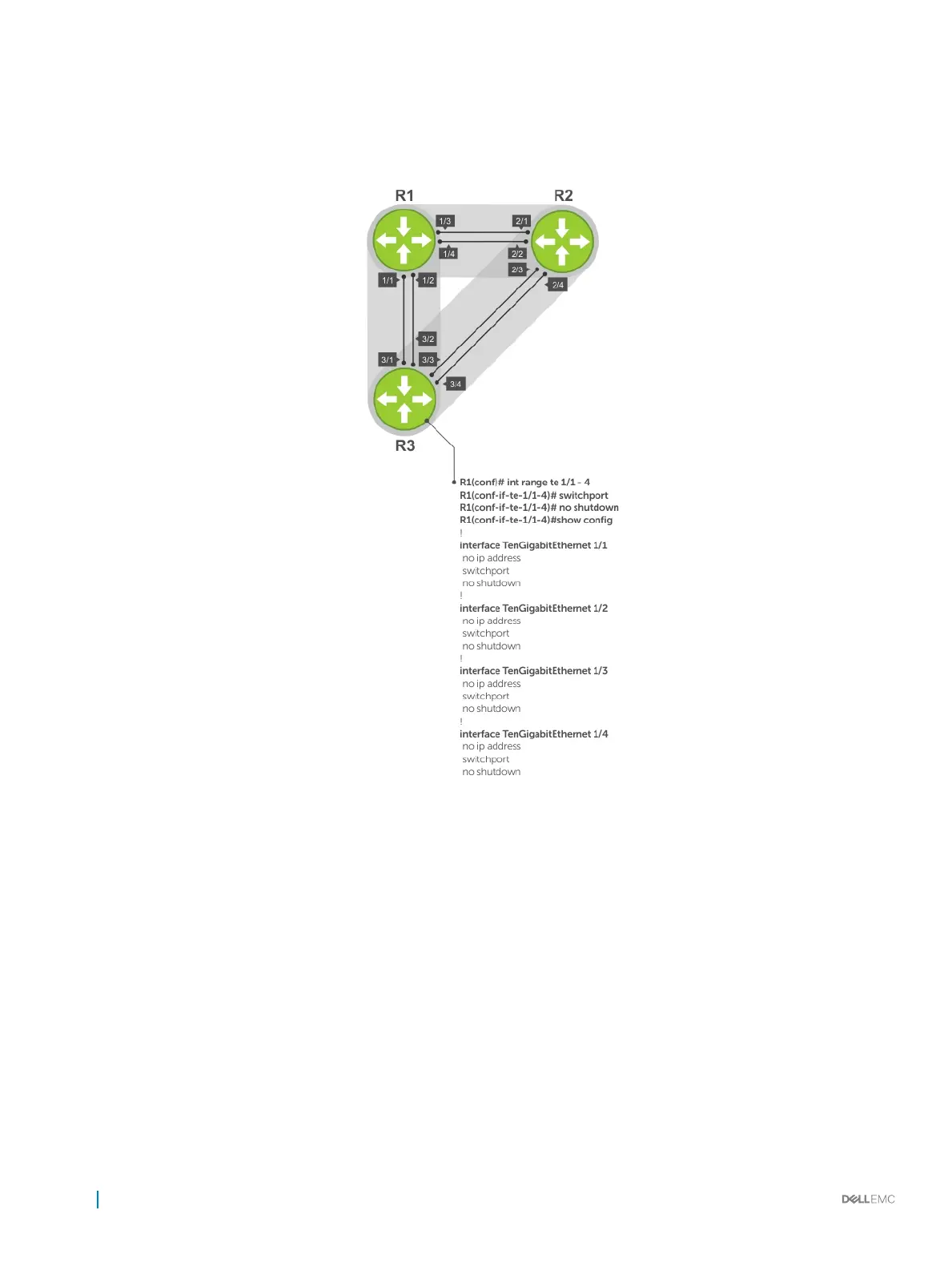

Figure 112. Example of Conguring Interfaces for Layer 2 Mode

To congure and enable the interfaces for Layer 2, use the following command.

1 If the interface has been assigned an IP address, remove it.

INTERFACE mode

no ip address

2 Place the interface in Layer 2 mode.

INTERFACE

switchport

3 Enable the interface.

INTERFACE mode

no shutdown

826

Spanning Tree Protocol (STP)
