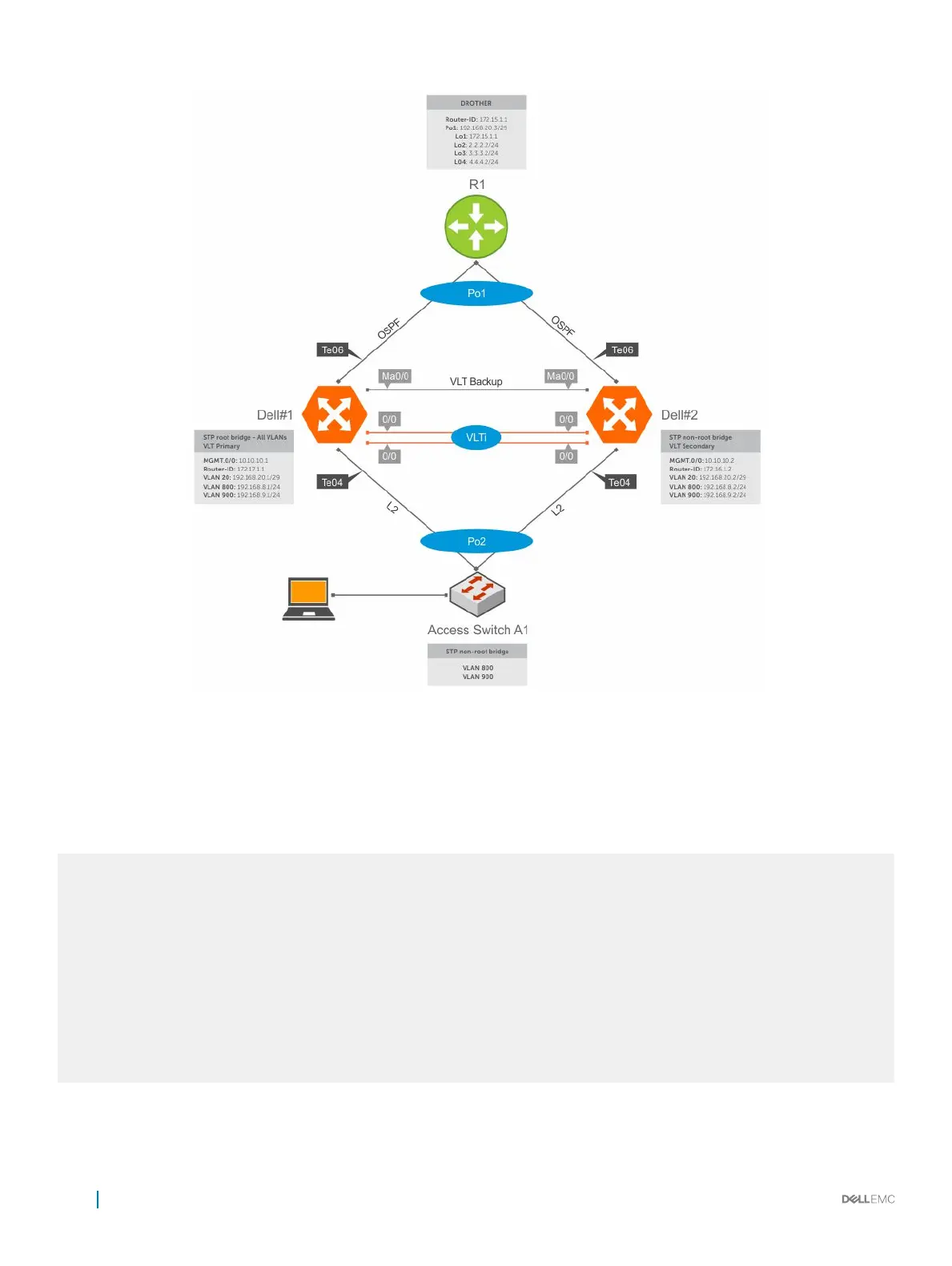

Figure 131. Peer Routing Conguration Example
Dell-1 Switch Conguration
In the following output, RSTP is enabled with a bridge priority of 0. This ensures that Dell-1 becomes the root bridge.
Dell#1#show run | find protocol
protocol spanning-tree pvst
no disable
vlan 1,20,800,900 bridge-priority 0
The following output shows the existing VLANs.
Dell#1#show vlan | find NUM
NUM Status Description Q Ports
* 1 Active U Po10 (Te 0/0-1)
U Te 0/4,47
20 Active OSPF PEERING VLAN U Po1 (Te 0/6)
V Po10 (Te 0/0-1)
800 Active Client-VLAN V Po10 (Te 0/0-1)
900 Active Client-VLAN-2 V Po10 (Te 0/0-1)
910
Virtual Link Trunking (VLT)

Dell S3048-ON Specifications

General

Rack Units	1U
Form Factor	Rack-mountable
Input Voltage	100-240V AC
Power Supply	2 hot-swappable power supplies
Management	CLI, Web, SNMP
Product Type	Switch
MAC Address Table Size	32K entries
Jumbo Frame Support	Yes
Latency	< 3 microseconds
Ports	48 x 1GbE RJ45, 4 x 10GbE SFP+
