1.1 Receiving and Inspection
This VFD-VE AC motor drive has gone through rigorous quality control tests at the factory before
shipment. After receiving the AC motor drive, please check for the following:

Check to make sure that the package includes an AC motor drive, the User Manual/Quick
Start and CD.

Inspect the unit to assure it was not damaged during shipment.

Make sure that the part number indicated on the nameplate corresponds with the part
number of your order.

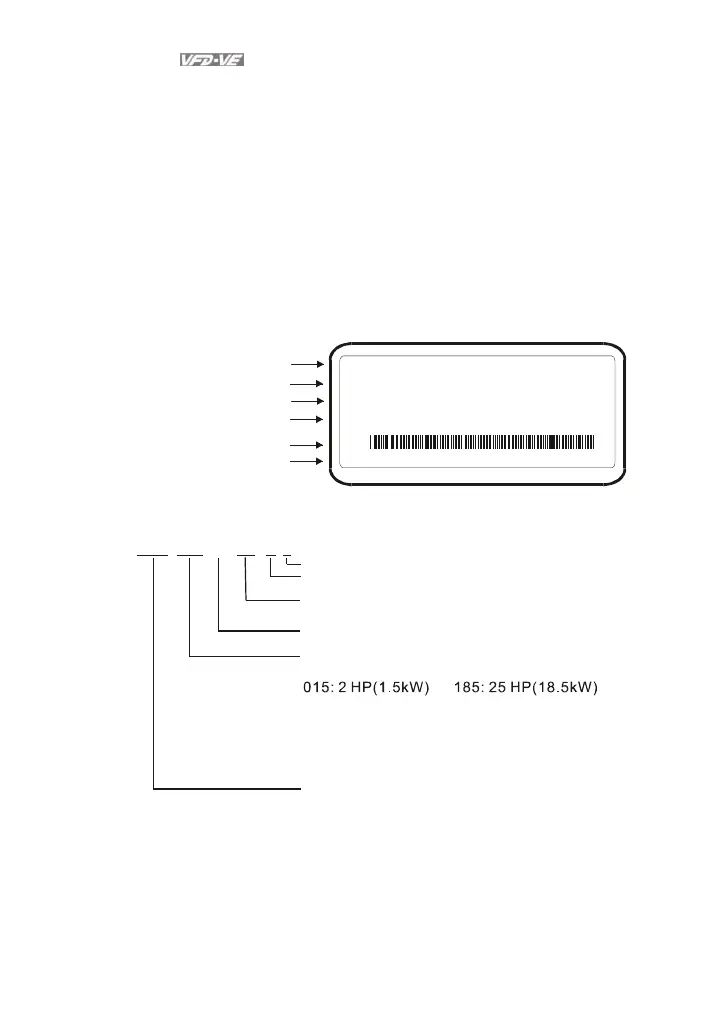

1.1.1 Nameplate Information
Example for 5HP/3.7kW 3-phase 230V AC motor drive
Serial Number & Bar Code
AC Drive Model
Input Spec.
Output Spec.
Output Frequency Range
Enclosure type
MODE : VFD037V23A-2
INPUT : 3PH 200-240V 50/60Hz 19.6A
OUTPUT : 3PH 0-240V 17A 6.5kVA 5HP
Freq. Range : 0.00~600.00Hz
ENCLOSURE: TYPE 1
037V23A2T6360001
1.1.2 Model Explanation
VFD A-
Version Type
23
Mains Input Voltage
23: Three phase230V 43: Three phase460V
V037
Applicable motor capacity
007: 1 HP(0.7kW) 150: 20HP(15kW)
022: 3 HP(2.2kW) 220: 30 HP(22kW)
037: 5 HP(3.7kW) 300: 40HP(30kW)
055: 7.5HP(5.5kW) 370: 50 HP(37kW)
075: 10 HP(7.5kW) 450: 60HP(45kW)
110: 15 HP(11kW) 550: 75HP(55kW)
750: 100HP(75kW)
Series Name ( ariable requency rive)
VF D
2
VFD-VE Series
Vector Series
