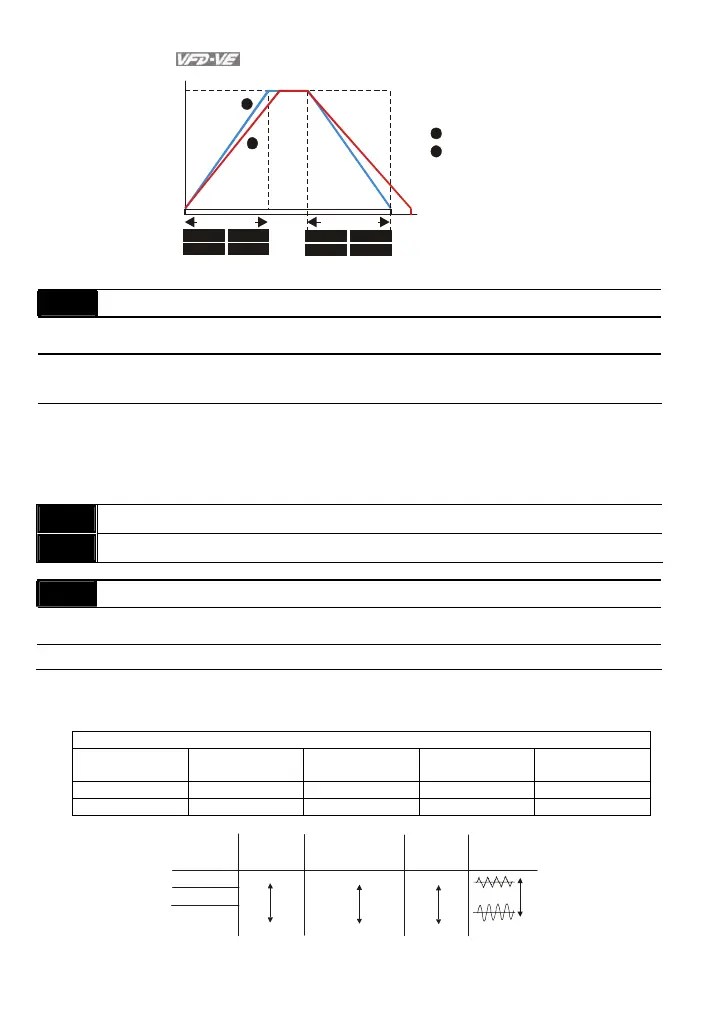

Chapter 4 Parameters|
4-46 Revision August 2008, 03VE, SW V2.04
When Pr.00-13 is set to 0.
1
2
01-00
01-12 01-14
01-16
01-18
01-13 01-15
01-17 01-19
01-05
1
2
Frequency
Max.
Frequency
Min.
Frequency
accel. time
Time
decel. time
Accel./Decel. Time
When Pr.00-13 is set to 3.
00-14 Time Unit for Acceleration/Deceleration and S Curve
Control
mode
VF VFPG SVC FOCPG
Factory setting: 0
Settings 0 Unit: 0.01 second
1 Unit: 0.1 second
 This parameter determines the time unit for the Acceleration/Deceleration setting. Refer to
Pr.01-12 ~ Pr.01-19 (accel./decel. Time 1 to 4), Pr. 01-20~Pr.01-21 (JOG accel./decel. Time)
and Pr. 01-24~Pr.01-27 (S curve accel./decel. Time).
00-15 Reserved
00-16 Reserved
00-17
Carrier Frequency
Unit: 1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 10
Settings 1~15kHz
 This parameter determinates the PWM carrier frequency of the AC motor drive.
230V/460V Series
Models
1-5HP
0.75-3.7kW
7.5-25HP
5.5-18.5kW
30-60HP
22-45kW
75-100HP
55-75Kw
Setting Range 01~15kHz 01~15kHz 01~09kHz 01~06kHz
Factory Setting 10kHz 9kHz 6kHz 6kHz
1kHz
8kHz
15kHz
Carrier
Frequency
Acoustic
Noise
Electromagnetic
Noise or Leakage
Current
Heat
Dissipation
Current
Wave
Significant
Minimal
Minimal
Minimal
Significant
Significant
