Delta Electronics AC Motor Drive VFD-VE Series - B.1.2 Specifications for Brake Unit

Appendix B Accessories|
B-6 Revision August 2008, 03VE, SW V2.04

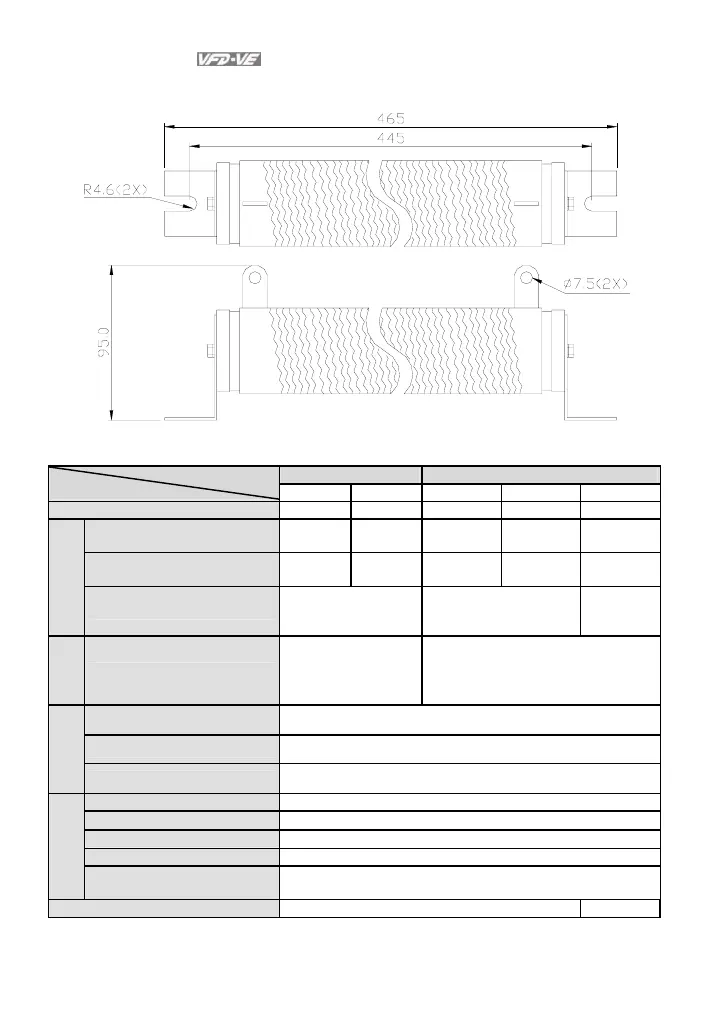

Order P/N: BR1K0W050, BR1K2W008, BR1K2W6P8, BR1K5W005, BR1K5W040
B.1.2 Specifications for Brake Unit
230V Series 460V Series
2015 2022 4030 4045 4132
Max. Motor Power (kW) 15 22 30 45 132
Max. Peak Discharge Current
(A) 10%ED
40 60 40 60 240
Continuous Discharge Current
(A)
15 20 15 18 75
Output Rating
Brake Start-up Voltage (DC)
330/345/360/380/400/
415±3V
660/690/720/760/800/83
0±6V
618/642/66
7/690/725/
750±6V
Input
Rating
DC Voltage 200~400VDC 400~800VDC
Heat Sink Overheat
Temperature over +95°C (203
o
F)
Alarm Output Relay contact 5A 120VAC/28VDC (RA, RB, RC)
Protection
Power Charge Display Blackout until bus (+~-) voltage is below 50VDC
Installation Location Indoor (no corrosive gases, metallic dust)
Operating Temperature
-10°C ∼ +50°C (14
o
F to 122
o
F)
Storage Temperature
-20°C ∼ +60°C (-4
o
F to 140
o
F)
Humidity 90% Non-condensing
Environment
Vibration
9.8m/s
2
(1G) under 20Hz
2m/s
2
(0.2G) at 20~50Hz
Wall-mounted Enclosed Type IP50 IP10
