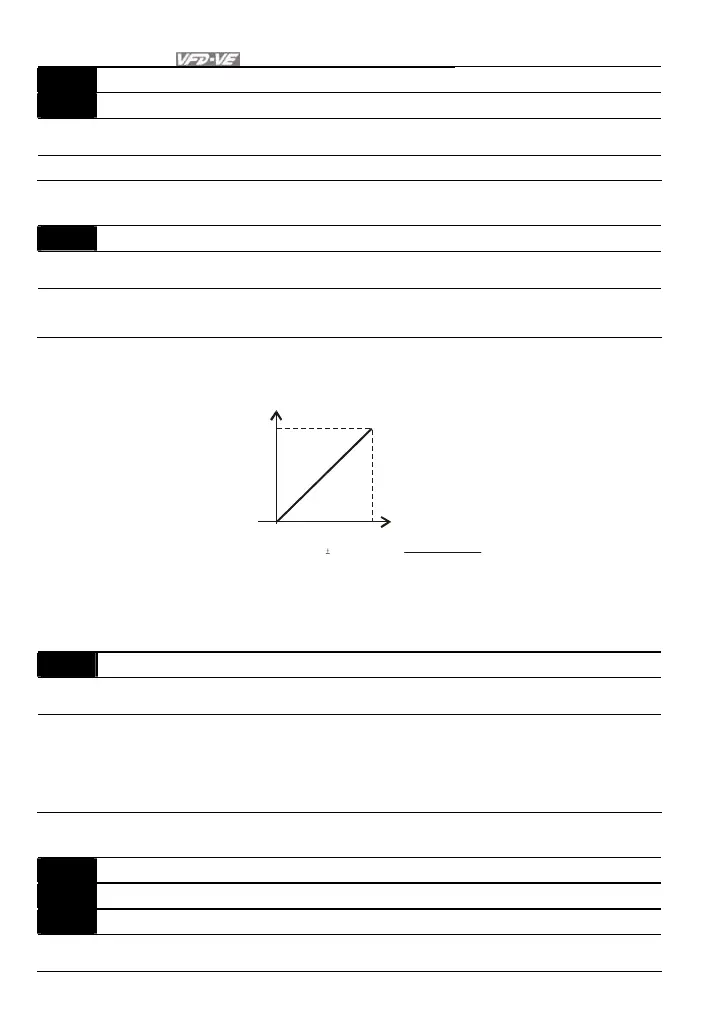

Delta Electronics AC Motor Drive VFD-VE Series User Manual

Chapter 4 Parameters|
4-82 Revision August 2008, 03VE, SW V2.04
03-14  Analog Input Delay Time (ACI) Unit: 0.01
03-15  Analog Input Delay Time (AUI) Unit: 0.01
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0.01
Settings 0.00 to 2.00 sec
 These input delays can be used to filter noisy analog signal.
03-16  Addition Function of the Analog Input
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0
Settings 0 Disable (AVI, ACI, AUI)
1 Enable
 When Pr.03-16 is set to 0 and the analog input setting is the same, the priority for AVI, ACI
and AUI are AVI>ACI>AUI.
Fcommand=[(ay bias)*gain]*
Fmax(01-00)
10V or 16mA
ay : 10 or 16mA
bias : Pr.03-03,Pr. 03-04, Pr.03-05
gain : Pr.03-09, Pr.03-10, Pr.03-11
Frequency
Voltage
Fcommand: the corresponding
frequency for 10V or 20mA
03-17  Loss of the ACI Signal
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0
Settings 0 Disable
1 Continue operation at the last frequency
2 Decelerate to stop
3 Stop immediately and display E.F.
 This parameter determines the behavior when ACI is lost.
03-18  Analog Output Selection 1 Unit: 1
03-21  Analog Output Selection 2 (need to be used with EMV-APP01) Unit: 1
03-24  Analog Output Selection 3 (need to be used with EMV-APP01) Unit: 1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0
