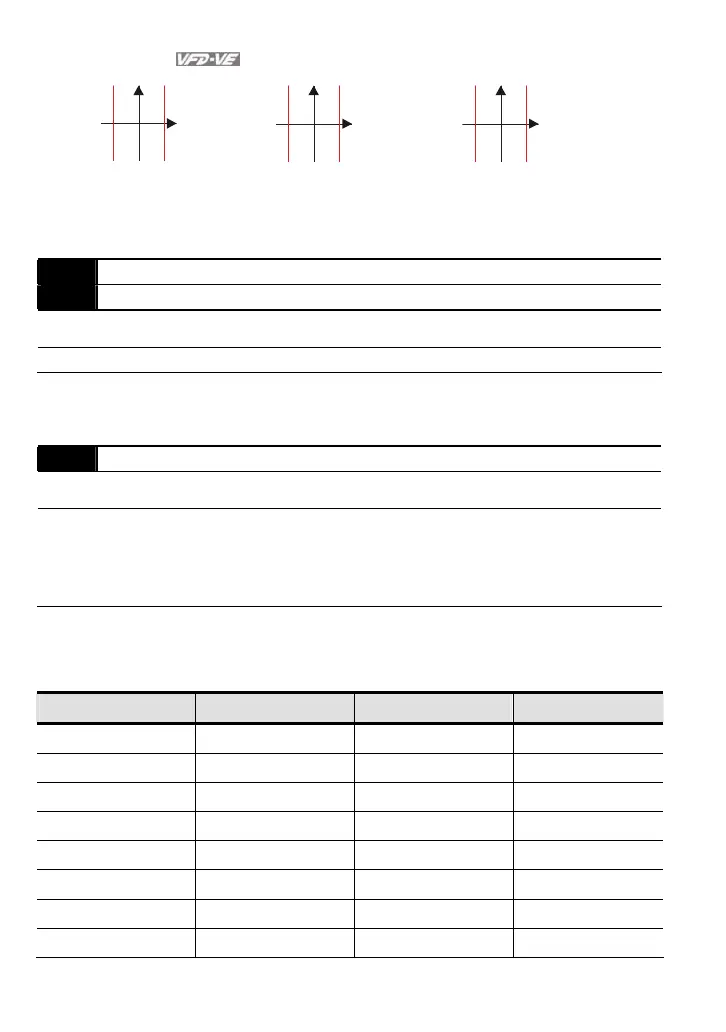

Delta Electronics AC Motor Drive VFD-VE Series - Torque Mode +Speed Limit; Torque Mode-Speed Limit; Source of Torque Offset

Chapter 4 Parameters|
4-116 Revision August 2008, 03VE, SW V2.04
07-26 00-20
07-25
00-20
07-26
07-25
07-24=1 07-24=1
torque
torque
torque
frequency
frequency
frequency
Pr.07-24=0
Running/opposite running
direction are
limited by Pr.07-25
and Pr.07-26.
When it is forward running,
running direction is limited
by Pr.00-20
opposite running direction
is limited by Pr.07-26.
When it is reverse running,
running direction is limited
by Pr.07-25
opposite running direction
is limited by Pr.00-20.
07-25  Torque Mode +Speed Limit Unit: 1
07-26  Torque Mode-Speed Limit Unit: 1
Control
mode
TQRPG
Factory Setting: 10
Settings 0 to 120%
 These parameters are used in the torque mode to limit the running direction and opposite
direction. (Pr.01-00 max. output frequency=100%)
07-27  Source of Torque Offset
Control
mode
SVC FOCPG TQRPG
Factory Setting: 0
Settings 0 Disable
1 Analog input (Pr.03-00)
2 Torque offset setting
3 Control by external terminal (by Pr.07-29 to Pr.07-31)
 This parameter is the source of torque offset.
 When it is set to 3, the source of torque offset will decide to Pr.07-29, Pr.07-30 and Pr.07-31
by the multi-function input terminals setting (31, 32 or 33).
02-01~02-06 is set to 31 02-01~02-06 is set to 32 02-01~02-06 is set to 33 Torque offset
OFF OFF OFF None
OFF OFF ON 07-33
OFF ON OFF 07-32
OFF ON ON 07-33+07-32
ON OFF OFF 07-31
ON OFF ON 07-31+07-33
ON ON OFF 07-31+07-32
ON ON ON 07-31+07-32+07-33
