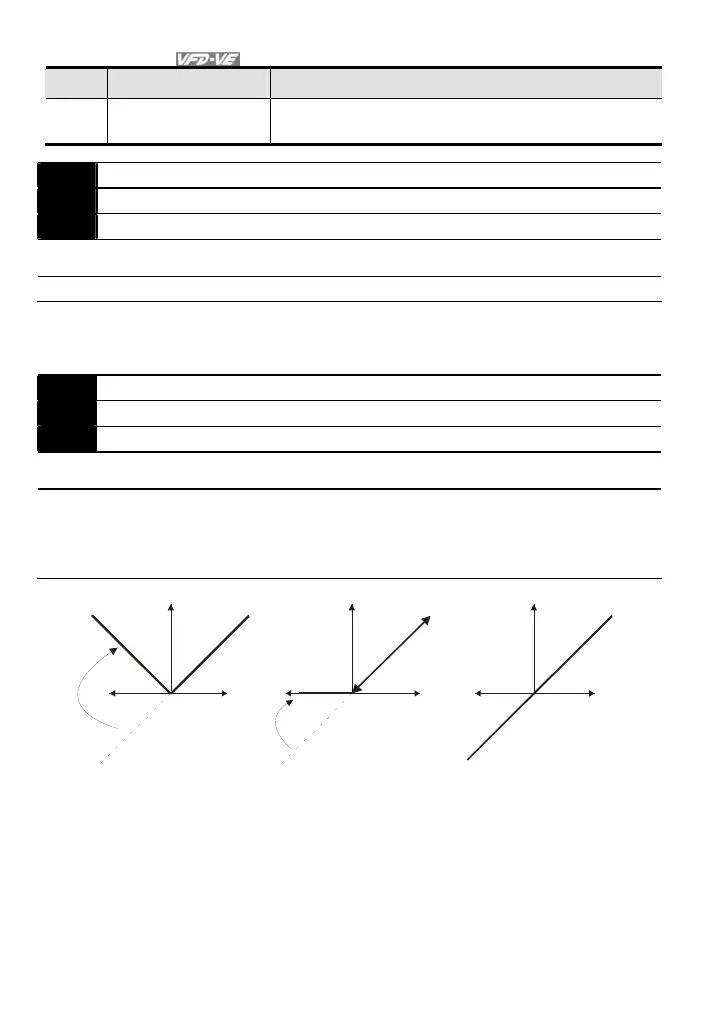

Chapter 4 Parameters|
4-84 Revision August 2008, 03VE, SW V2.04
Settings Functions Descriptions
19
Pulse frequency
command
Max. frequency Pr.01-00 is regarded as 100%.
03-19  Analog Output Gain 1 Unit: 0.1
03-22  Analog Output Gain 2 (need to be used with EMV-APP01) Unit: 0.1
03-25  Analog Output Gain 3 (need to be used with EMV-APP01) Unit: 0.1
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 100.0
Settings 0 to 200.0%
 It is used to adjust the analog voltage level that terminal AFM outputs.
 This parameter is set the corresponding voltage of the analog output 0.
03-20  Analog Output Value in REV Direction 1
03-23  Analog Output Value in REV Direction 2
03-26  Analog Output Value in REV Direction 3
Control
mode
VF VFPG SVC FOCPG TQRPG
Factory setting: 0
Settings 0 Absolute value in REV direction
1 Output 0V in REV direction
2 Enable output voltage in REV direction
03-18
03-21
03-24
03-20=0
03-23=0
03-26=0
03-20=1
03-23=1
03-26=1
10V(20mA
)
03-20=2
03-23=2
03-26=2
5V
(12mA)
10V(20mA
)
0V
(0mA)
10V(20mA
)
0V
(0mA)
Frequency
Frequency
Selections for the analog output direction
