Delta Electronics AC Motor Drive VFD-VE Series - B.8.3 Emv-Pg01 L

Appendix B Accessories|
Revision August 2008, 03VE, SW V2.04 B-25

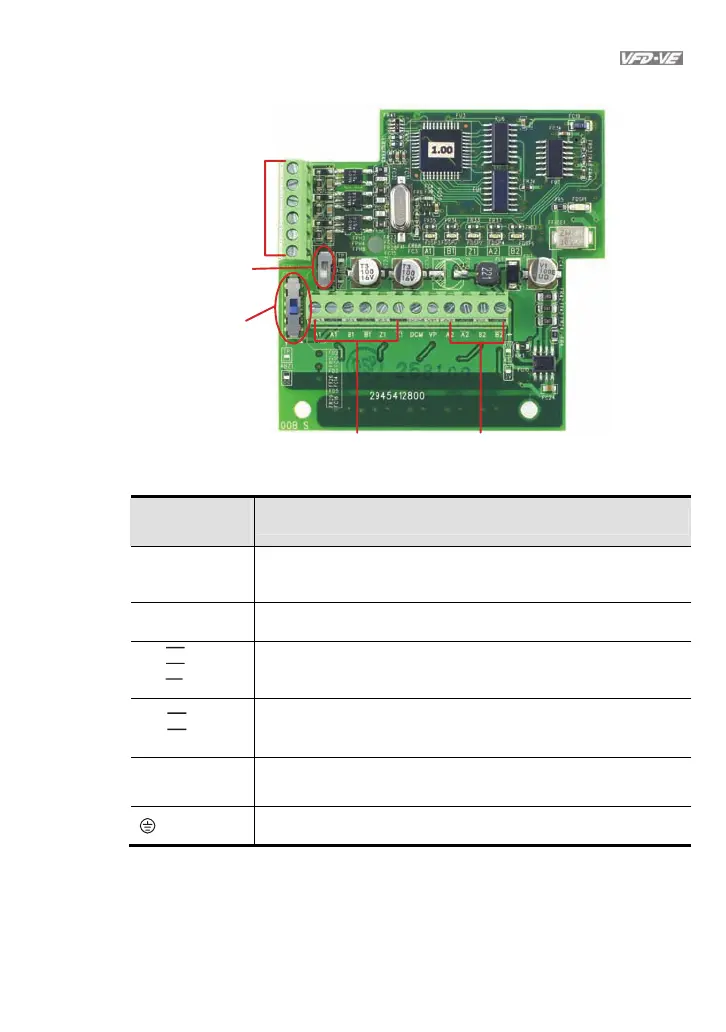

B.8.3 EMV-PG01L
PG OUT
pulse output
AB2: PG2 signal
mode switch
ABZ1: PG1 signal
mode switch
PG1
pulse feedback
PG2
pulse input
1. Terminals descriptions
Terminal
Symbols
Descriptions
VP
Power source of EMV-PG01L
Output Voltage: +5V±5% 200mA
DCM
Power source and input signal common
A1,
B1,
Z1,
A1
B1
Z1
Input signal. Input type is selected by ABZ1. It can be 1-phase or 2-
phase input. Maximum 300kP/sec
A2,
B2,
A2
B2
Input signal. Input type is selected by AB2. It can be 1-phase or 2-
phase input. Maximum 300kP/sec
A/O, B/O, Z/O
Output signal. It has division frequency function (Pr.10-16), Line
driver: max. output DC5V 50mA
Grounding
2. Wiring Notes
a. Please use a shielded cable to prevent interference. Do not run control wires
parallel to any high voltage AC power line (200 V and above).
